95
12.

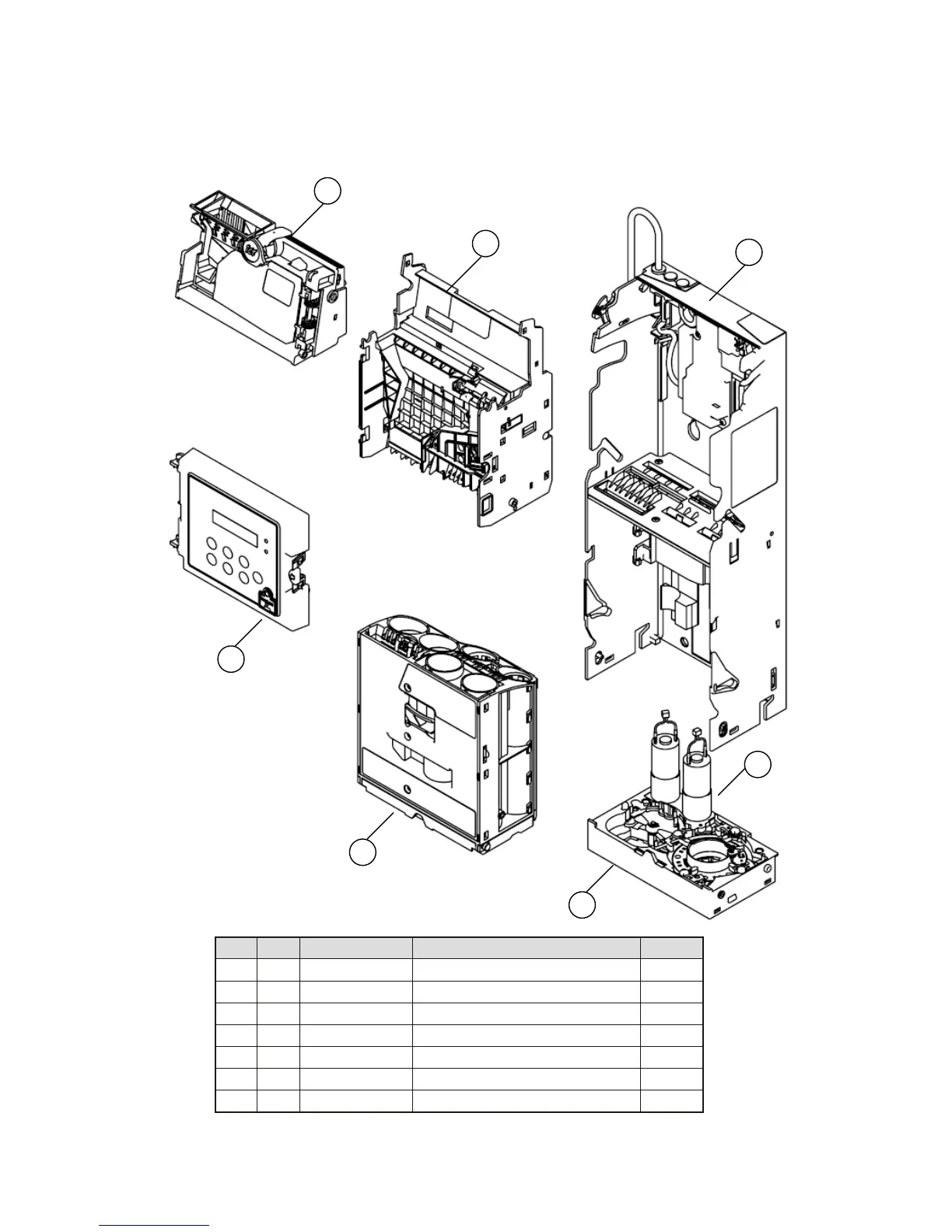

Module Exploded Views（CC6100-TWD）
Note Orde
r
Part Numbe
r
Appellation
Quantity
1
3RCC-CAS05001
Coin Change Main Machine Module
1
2
3RCC-POK19000
Coin Changer-Coin Discharge Module
1
3 3RCC-MOT02001
Changer Coin Discharge Motor Module
1
4 3RCC-IDE11002
Recognition Module (2.5mm)
1
5
3RCC-SOR11006
Coin Separation Module (ESCROW-A)
1
6
3RCC-TUB25004
Coin Tube Module (TWD Version-2)
1
7
3RCC-FAC01002
LCM Display Panel Module
1
1
2
3
4
5
6
7
