ICT PRX-TSEC - Wiegand Reader Connection (Entry; Exit)

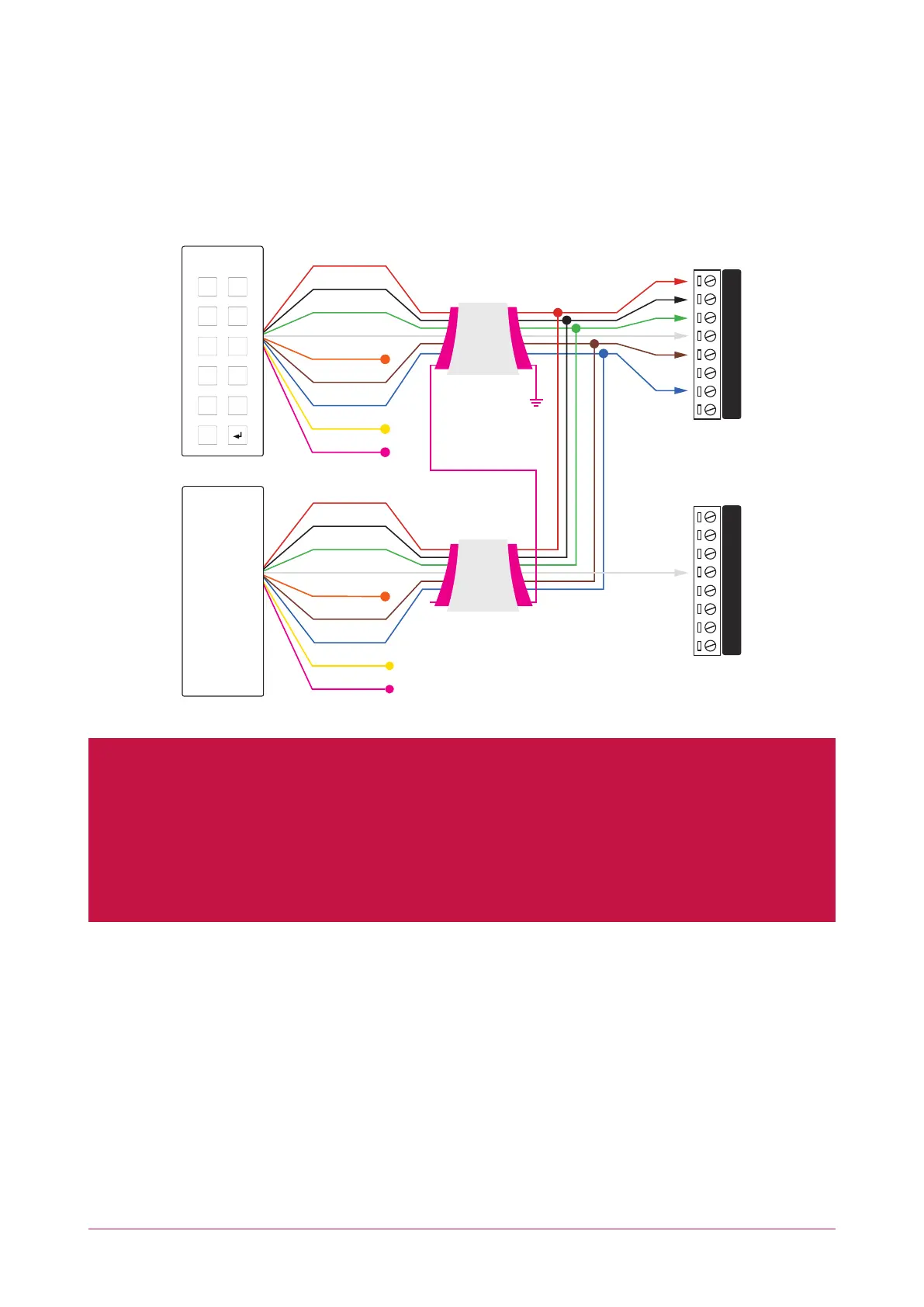

Wiegand Reader Connection (Entry / Exit)
In multiple reader mode, the secondary reader has all connections wired to the same port as the primary card
reader, with the DATA 1 connection wired to the opposite reader connection DATA 1 input.
The reader that is multiplexed into the alternate reader port will operate as the exit reader, and the normal
reader connection shall operate as the entry reader.
Shield is frame
grounded at
one point
Shielded Cable
RED
BLACK
GREEN
WHITE
ORANGE
BROWN
BLUE
YELLOW
SHIELD
Shield is frame
grounded at
one point
Shielded Cable
RED
BLACK
GREEN
WHITE
ORANGE
BROWN
BLUE
YELLOW
SHIELD
Data
ENTRY
EXIT
V+
V-C BZ L2 L1
D1/
D0/
NB
NA
1 2
3 4
5 6
7 8
9 0
X
V+
V-C BZ L2 L1
D1/
D0/
NB
NA
Important:
⦁ The card reader must be connected to the module port using a shielded cable.
⦁ Do not connect the shield to an AUX-, 0V or V- connection on the module.
⦁ Do not join the shield and black wires at the reading device.
⦁ Do not connect the shield to any shield used for isolated communication.
⦁ The shield connection must only be connected at one end of the cable in the metallic enclosure (frame
grounded).
