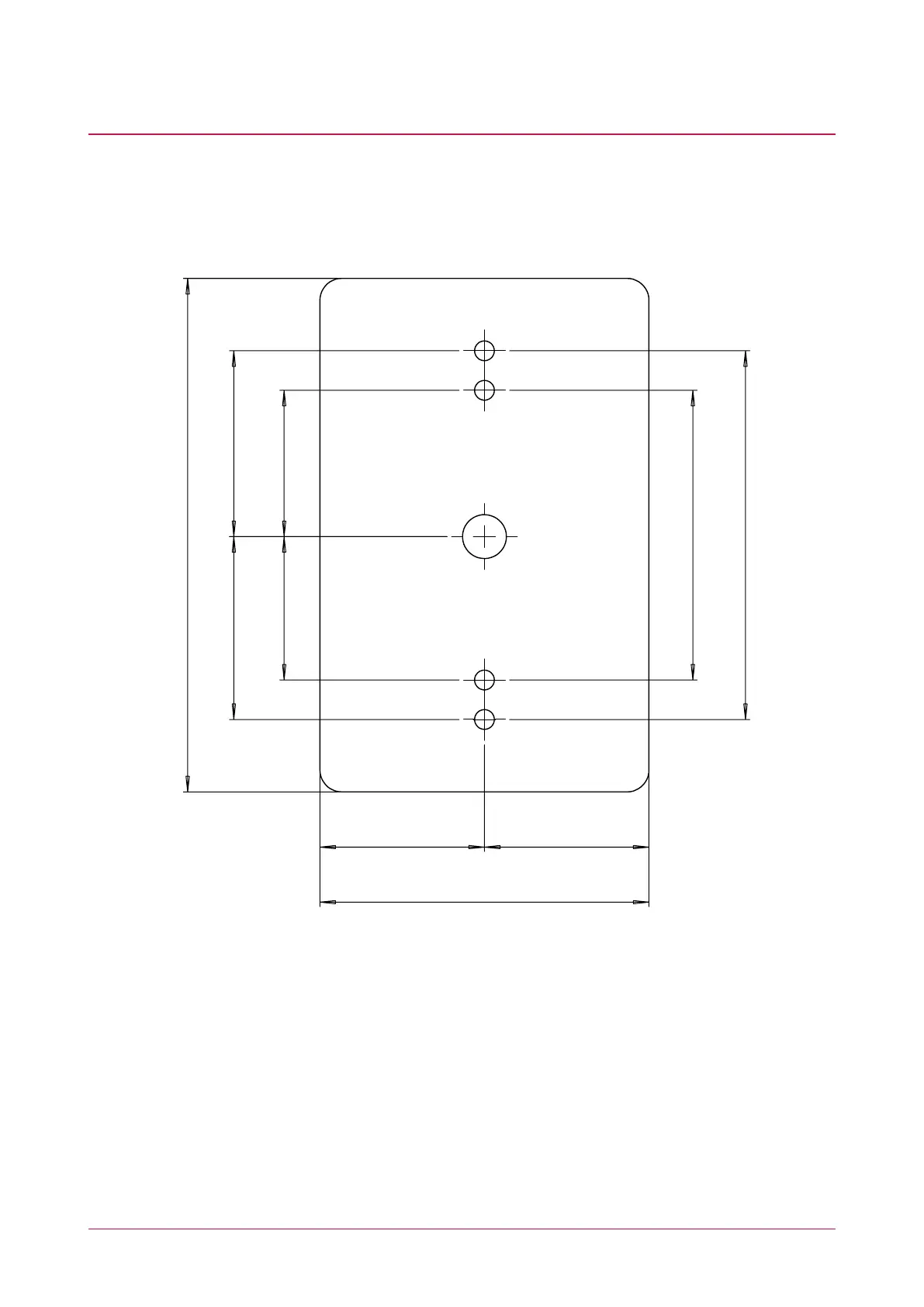

Technical Diagram - tSec Extra Reader

The dimensions shown below outline the essential details needed to help ensure the correct installation of the

tSec Extra Reader. All measurements are shown in millimeters.

117.00

42.33

33.33 32.67

41.67

66.00

84.00

37.50 37.50

75.00

ø 4.5mm Screw Hole

ø 10mm Cable Hole

ø 4.5mm Screw Hole

PRX-TSEC Range | tSec Multi-Technology Card Reader with Bluetooth® Technology | Installation Manual 27
