Technical Diagram - tSec Mini Reader

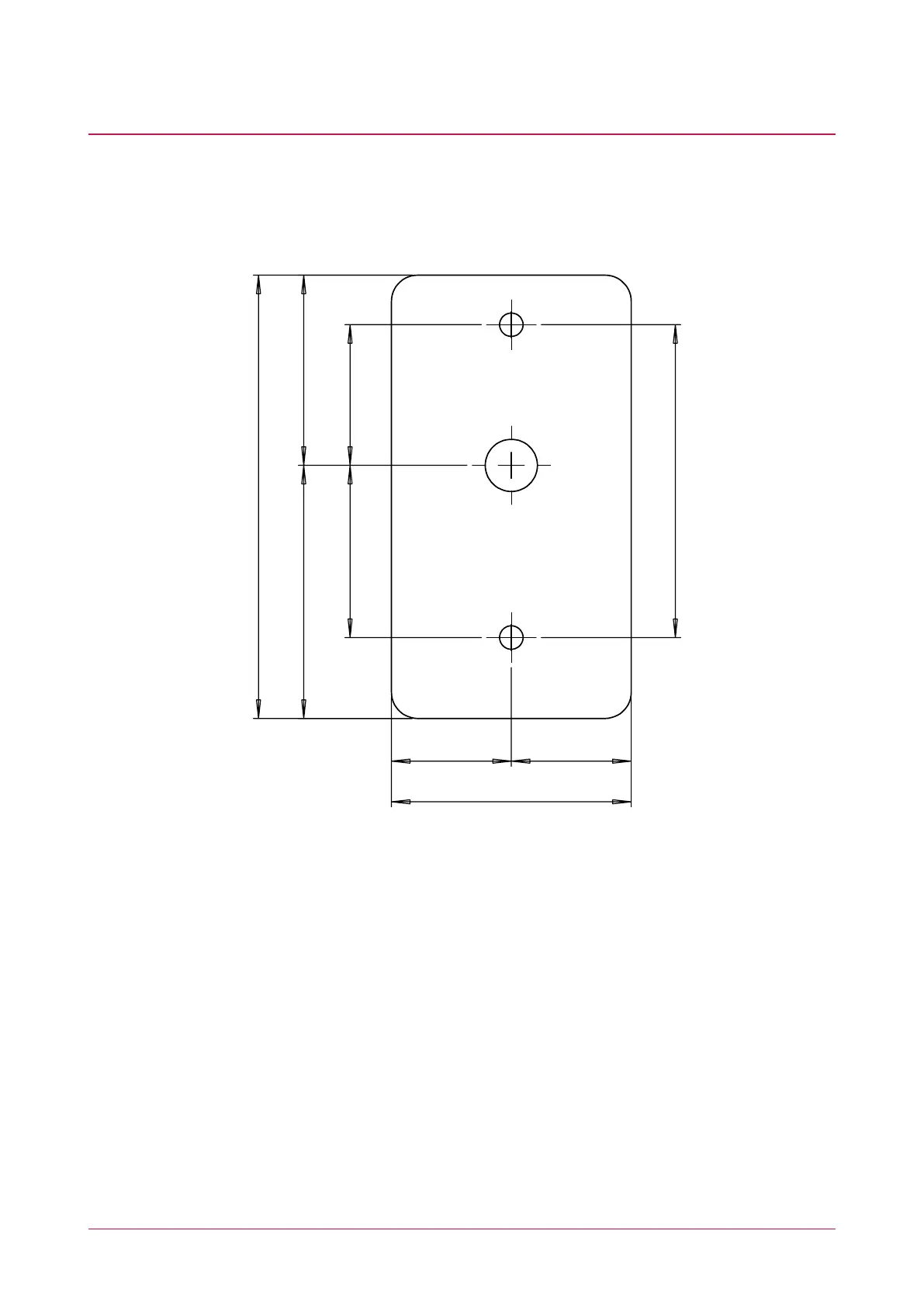

The dimensions shown below outline the essential details needed to help ensure the correct installation of the
tSec Mini Reader. All measurements are shown in millimeters.
85.00
36.48 48.52
33.02 26.98
60.00
23.00 23.00
46.00
ø 4.5mm Screw Hole
ø 10mm Cable Hole
ø 4.5mm Screw Hole
