Technical Diagram - tSec Standard Reader

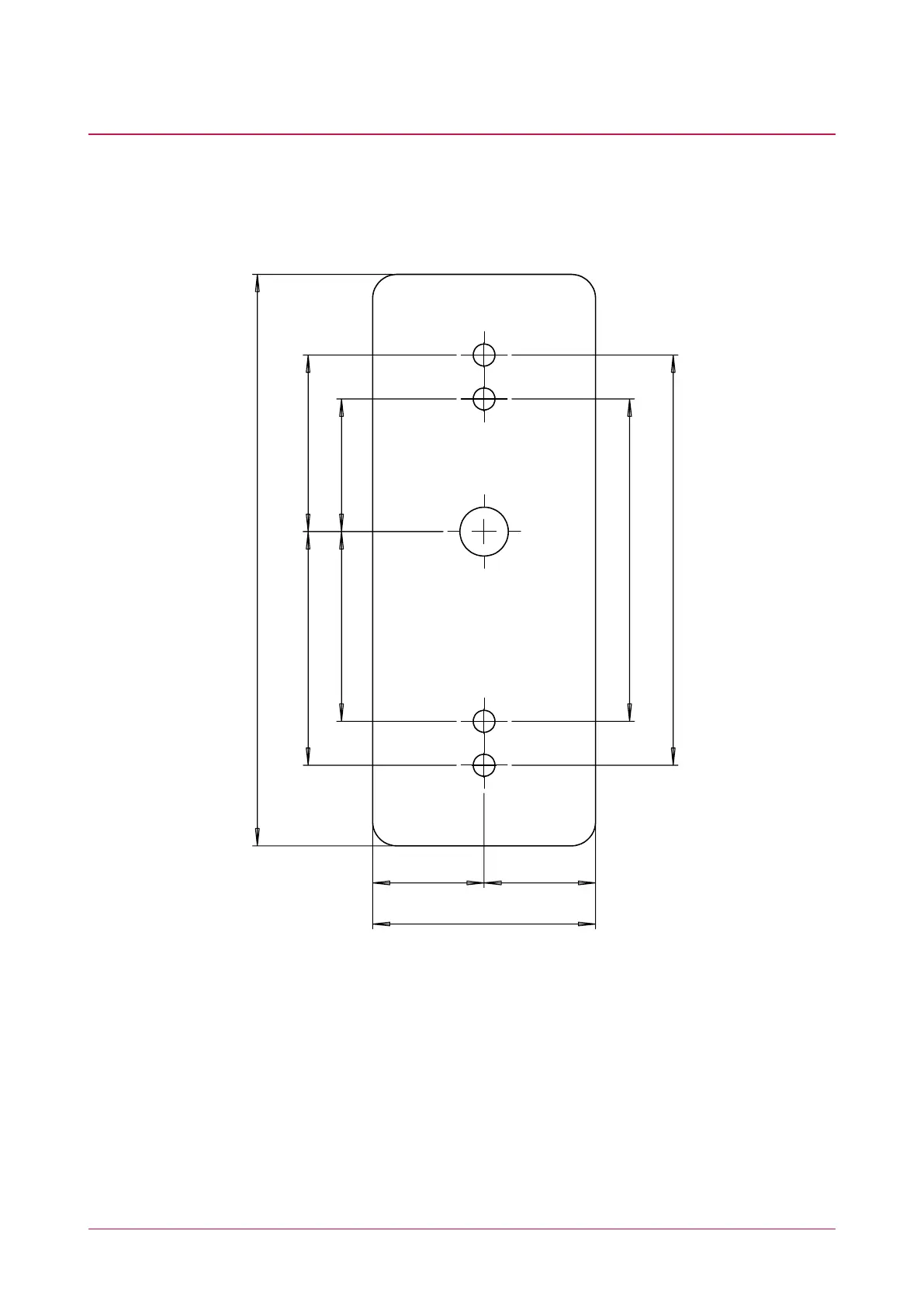

The dimensions shown below outline the essential details needed to help ensure the correct installation of the
tSec Standard Reader. All measurements are shown in millimeters.
27.16
36.16
38.84
47.84
117.00
66.00 84.00
23.00 23.00
46.00
ø 4.5mm Screw Hole
ø 4.5mm Screw Hole
ø 4.5mm Screw Hole
ø 4.5mm Screw Hole
ø 10mm Cable Hole
PRX-TSEC Range | tSec Multi-Technology Card Reader with Bluetooth® Technology | Installation Manual 26
