IDEAL EXALT COMBI - Fig. 21 - EXALT solo System Piping - Multi Zone Valves - Single Circulator

128 pages

To Next Page

To Previous Page

Dry Contact

DHW

Hot

DHW

Cold

Low Voltage Terminals

Outdoor Sensor

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

Z.V.

Line Voltage Terminals

N G L N G L N G L N G L

FLAME

POWER SUPPLY

CH PUMP

DHW PUMP

smart

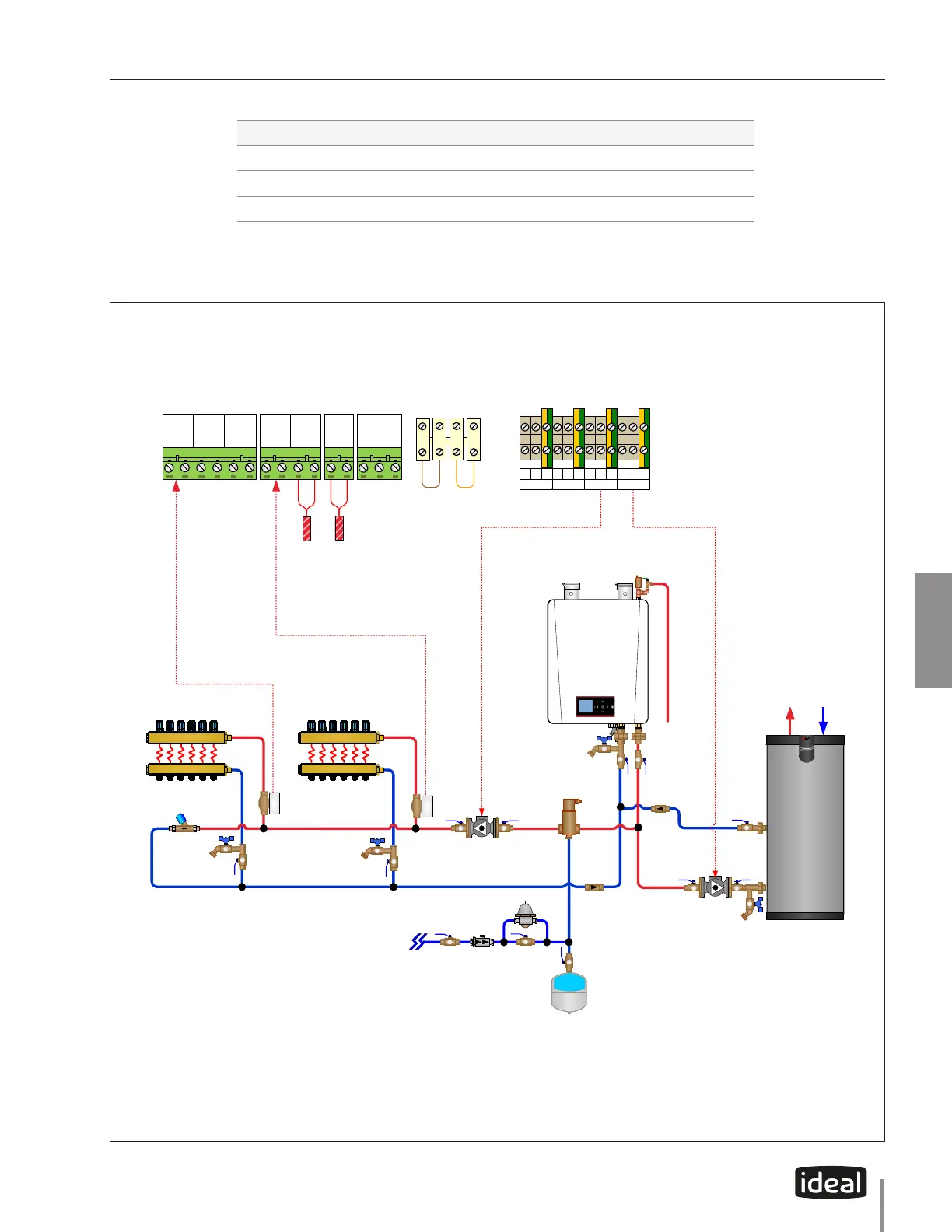

Fig. 21 - EXALT Solo System Piping - Multi Zone Valves - Single Circulator

CHAPTER 5

CHAPTER 5 - EXALT SOLO UNITS - DOMESTIC PIPING

EXALT SOLO PRESET PUMP CONFIGURATION

Heat Call Flame CH Pump DHW Pump

CH1 ON ON OFF

CH2 ON ON OFF

DHW OFF OFF ON

Note. EXALT Solo is pre-congured for this installation

Outdoor Sensor

DHW Sensor

Low Voltage Terminals

Dry Contact

DHW

Hot

DHW

Cold

Line Voltage Terminals

External Limit

Terminals

AutoManual

Main Page

Default Chapter3
- Table of Contents3
