IDEAL he15 Installation And Servicing

14
mexico HE - Installation & Servicing
InstallatIon

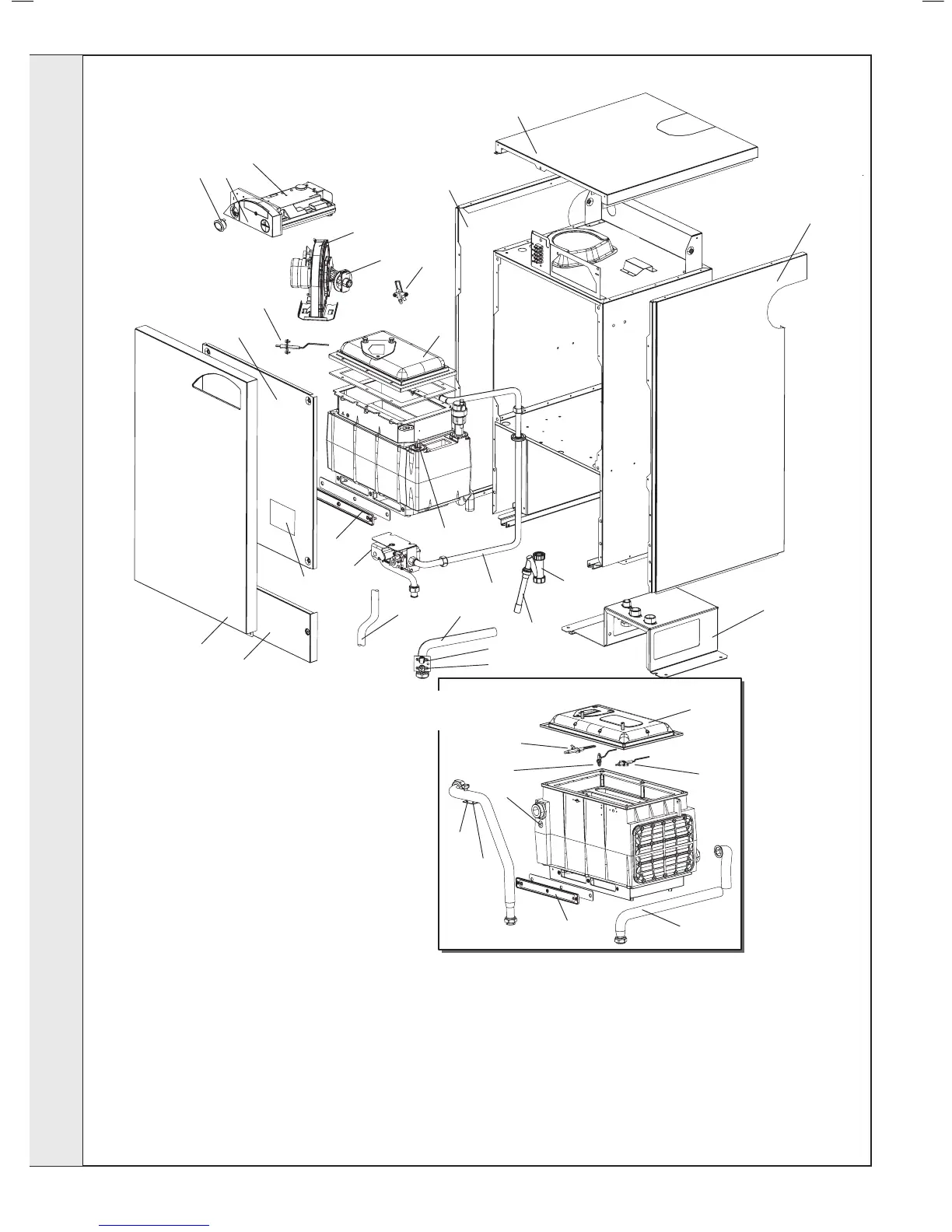

10 BOILER ASSEMBLY - Exploded view
mxhe7922
38
19
3741
17
4
14
28
3
5
43
27
10
27
26
25
54
29
9
14
28
9
20
36
34
22
7
25
2
29
6
1
26
7
mexico HE24 shown
mexico HE36
heat exchanger
Dataplate
1 Front casing panel
2 Sealing panel
3 Top casing panel
4 LH casing side panel
5 RH casing side panel
6 Lower front panel
7 Sump cover plate
9 Return pipe
10 Flow pipe
14 Burner assembly
17 Injector & housing
19 Fan assembly
20 Gas pipe assembly
22 Gas valve assembly
25 
26 Control thermistor
27 Overheat thermostat
28 Ignition electrode
29 Flame detection electrode
34 Condensate ‘S’ trap
36 Condensate ‘S’ trap hose
37 User controls
38 PCB primary control
41 Main switch c/w harness
43 Pre-piping frame
54 Burner earth pin (ionisation probe)
LEGEND
