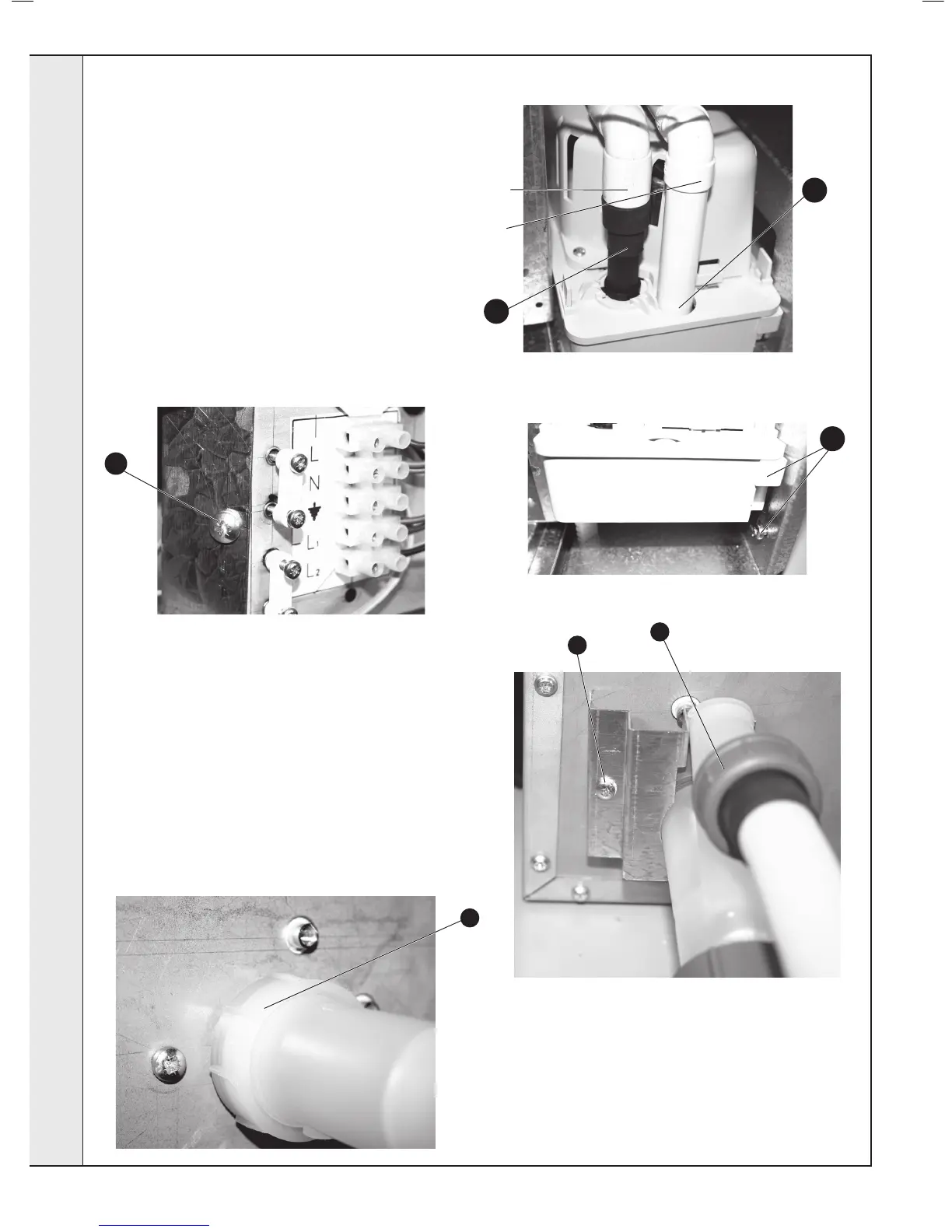

CONDENSATE ‘S’ TRAP REPLACEMENT & CONDENSATE PUMP (IF FITTED)
1. Refer to Frame 51.
2. Remove the boiler front panels. Refer to Frame 44.
3.
a.
taking care to capture any liquid held in the pipe.
b. Lift the inlet pipe to clear the pump.
c. Remove the pump wiring cover.
d. Remove the 5 wires from the terminal strip.
e. Lift the condensate pump from the two screw
f. Pull the pump forward and remove the wiring
through the top grommet.
4. Undo the plastic union nut on the condensate ‘S’ trap
5. Remove the screw retaining the ‘S’ trap bracket and
remove the bracket.
6. Loosen the top nut on the ‘S’ trap then pull the trap down
and forward to remove.
7. Reassemble in reverse order, ensuring the condensate
pump is correctly replaced.
8. Check operation of the boiler. Refer to Frame 51.
SERVICING
3b
Inlet pipe
from ‘S’ trap
Outlet pipe
3e
4
5
3a
6
3c
To Next Page
