all dimensions in mm

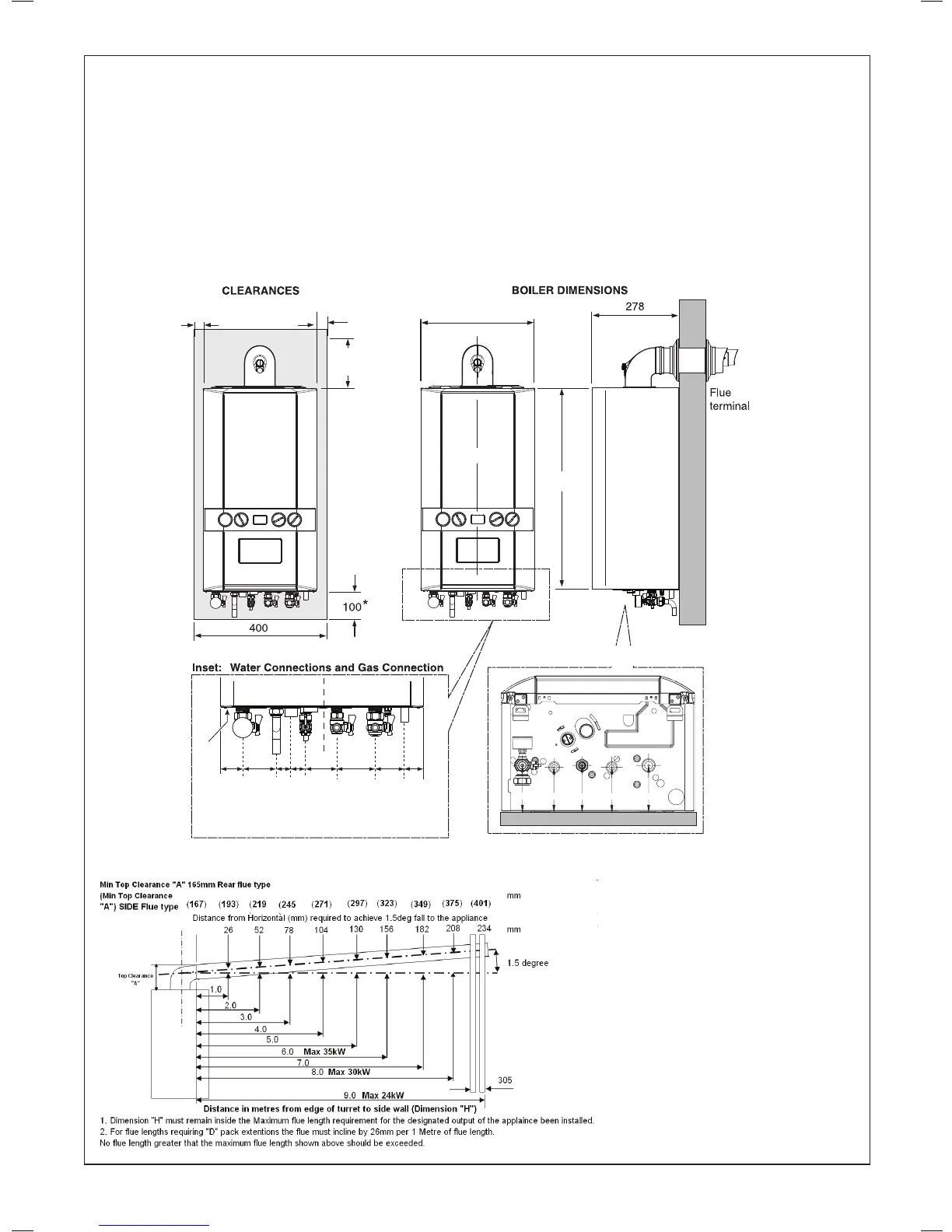

The boiler connections are made on the boiler connection tails.
Refer to Frame 24.
Additional space will be required for installation, depending upon
site conditions.
a. Provided that the ue hole is cut accurately, e.g. with a core
drill, the ue can be installed from inside the building where
wall thicknesses do not exceed 600mm (24”). Where the
space into which the boiler is going to be installed is less
than the length of ue required the ue must be tted from
the outside.
b. If a core boring tool is to be used inside the building the
space in which the boiler is to be installed must be at least
wide enough to accommodate the tool.
Front clearance
The minimum front clearance when built in to
a cupboard is 5mm from the cupboard door
but 450mm overall clearance is still required,
with the cupboard door open, to allow for
servicing.
* Bottom clearance
Bottom clearance after installation can be
reduced to 5mm. This must be obtained
with an easily removable panel, to
enable the consumer to view the system
pressure gauge, and to provide the
100mm clearance required for servicing.
