15
INSTALLATION
Logic Combi ES - Installation and Servicing

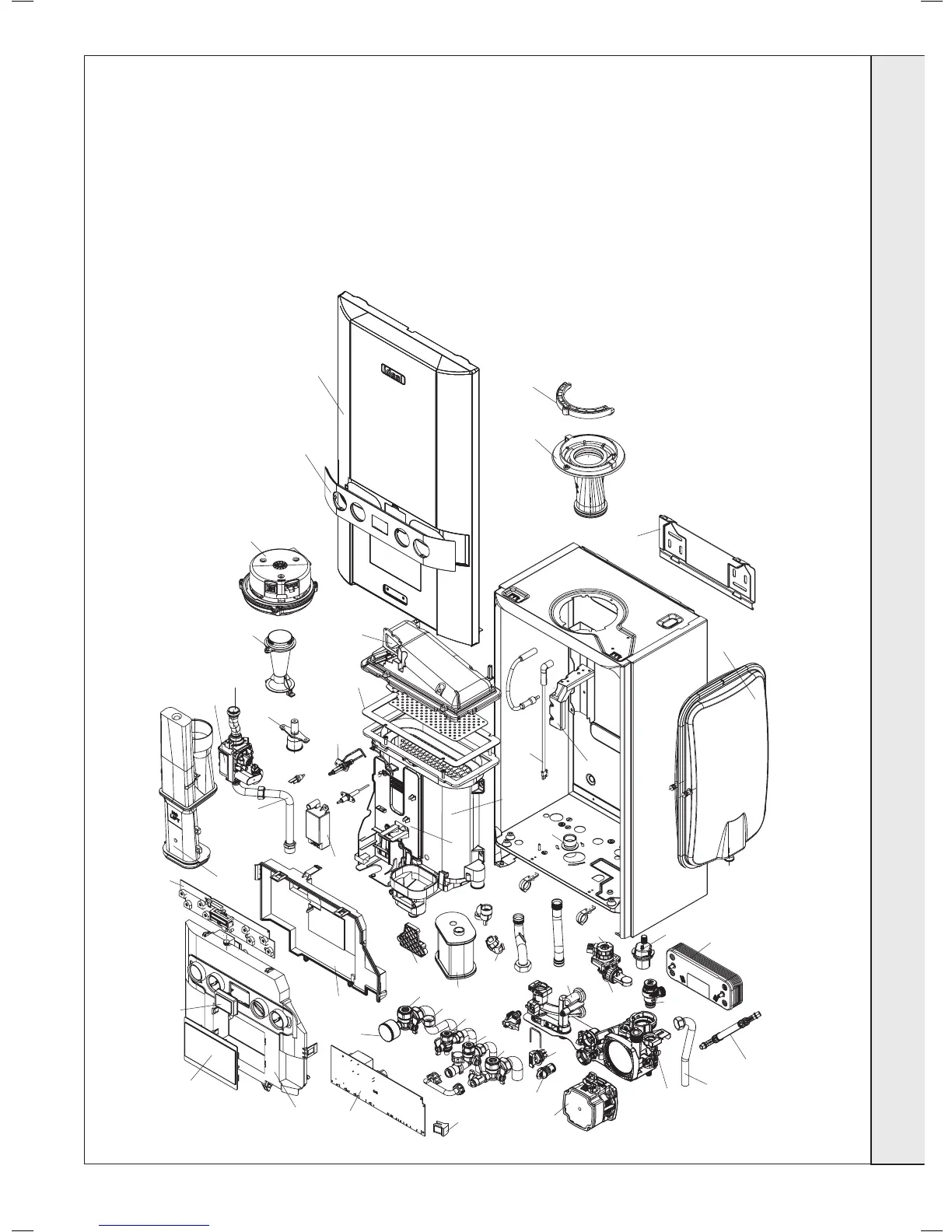

6 BOILER ASSEMBLY - E
104 CH Return Valve
105 CH Flow Valve
106 DHW Inlet & Outlet
107 Filling Loop Pipe
108 Pump Head
110 Auto Air Vent
111 Divertor Valve Motor
112
Divertor Valve Body & Paddle
113 Pressure Relief Valve
114 Pipe - PRV Outlet
115 Pipe - Flow
116 Pipe - Return
117 Pipe - Expansion Vessel
118 Expansion Vessel
119 Return Group Manifold
120 Flow Group Manifold
121 Plate Heat Exchanger
124 Flow Regulator
127 Flow Sensor/Turbine
131 Water Pressure Switch
135 Pressure Gauge
203 Gas Cock
204 Pipe - Gas Inlet
205 Gas Valve
206 Pipe - Gas Injector
211 Injector Assy
214 Venturi
215 Fan
217 Burner
218 Gasket - Burner
219 Sump Clean Out Cover
223 Flue Manifold
224 Flue Manifold Top
227 Clamp Retaining Flue Turret
228 Hose Condensate Internal
229 Siphon Trap
231
Condensate Outlet Connection
301 Ctrl Box Fixings Hings & Spring
302* Primary PCB
303 CUI Board
304
Control Thermistor (Return)
306 Electrode Ignition
307 Electrode Detection
308 Ignitor Unit
309 Thermistor Flow
313 Ignition Lead
314 Control Box Lens
320 Detection Lead
324 Control Box Lid
325 Control Box Front
326 Programmer Insert
401 Heat Engine
503 Wall Mounting Bracket
504 Front Panel
505 Fascia
506 Bracket - Gas Valve
507 Bracket - Expansion Vessel
* Note that production boiler PCBs are
factory pre-set to operate for boiler range
and output. When ordering Primary PCB
as a spare, an additional Boiler Chip Card
(BCC) MUST also be purchased for your
specic boiler range and output.
Check boiler serial letter code on data
plate to obtain correct BCC.
504
227
224
503
505
313
215
309
306
308
211
214
206
205
204
223
326
325
302*
110
114
113
121
118
507
131
127
124
120
119
117
104
106
203
106
107
135
105
112
228
229
303
304
116
115
219
301
401
218
307
324
108
314
506
BCC*
217
111
231
320
