INSTALLATION
Ideal Logic + System - Installation and Servicing
Note.
A at or pitched roof ashing plate (not supplied) is required before proceeding
with the installation of this kit.

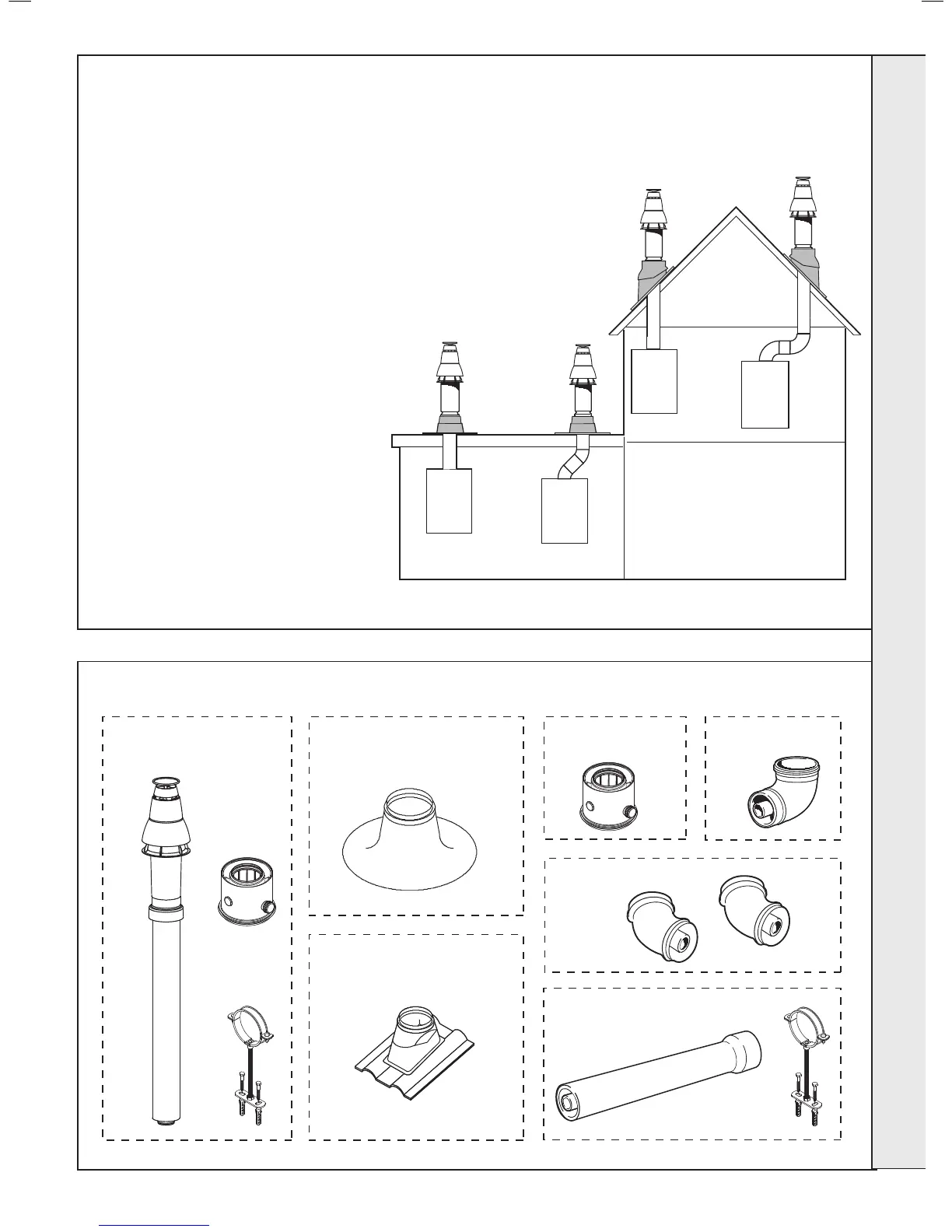

This kit is suitable for both at and pitched roof terminations, using a concentric
ue to run vertically from the top of the boiler and terminating above roof level.
Connection to the top of the boiler is made using a separately supplied vertical
connector.
WEATHER PROOFING
Where the ue passes through the roof line an adequate seal
must be made. This is achieved by using either:
- Flat roof weather collar
or
- Universal weather collar.
ACCESSORIES
Flue Duct Extension Kits are available for
ue lengths extending beyond 1m. These
packs contain 500mm, 1000mm or 2000mm
extension ducts and may be cut to the
desired length.
If the offset vertical option is used an elbow
Kit is required. For a full accessories list
refer to page 8, Optional Extras.
Flue
duct
support
Vertical
connector
Flue
duct
support
90
o
elbow
UIN 203130
45
o
elbow
UIN 203131
Roof Flue Extension Duct
UIN 203129
Flue Terminal
UIN 203132
Flue Seal Collar - Flat Roof
UIN 152259
Vertical connector
UIN 208175
Flue Seal Collar - Tile Roof
UIN 152258
18  
17 FITTING THE OPTIONAL ROOF FLUE KIT 
nm8736
INSTALLATION

IDEAL Logic+ SYSTEM 30 Specifications

General

Boiler Type	System
Model	Logic+ SYSTEM 30
Output	30 kW
Dimensions (H x W x D)	700 x 395 x 278 mm
Fuel Type	Natural Gas
Warranty	7 years
ERP Rating	A
Mounting	Wall-mounted
Max Working Pressure	3 bar
Central Heating Flow Temperature Range	30-80°C
Efficiency Rating	ErP A-rated
