SERVICING
Ideal Logic + System - Installation and Servicing

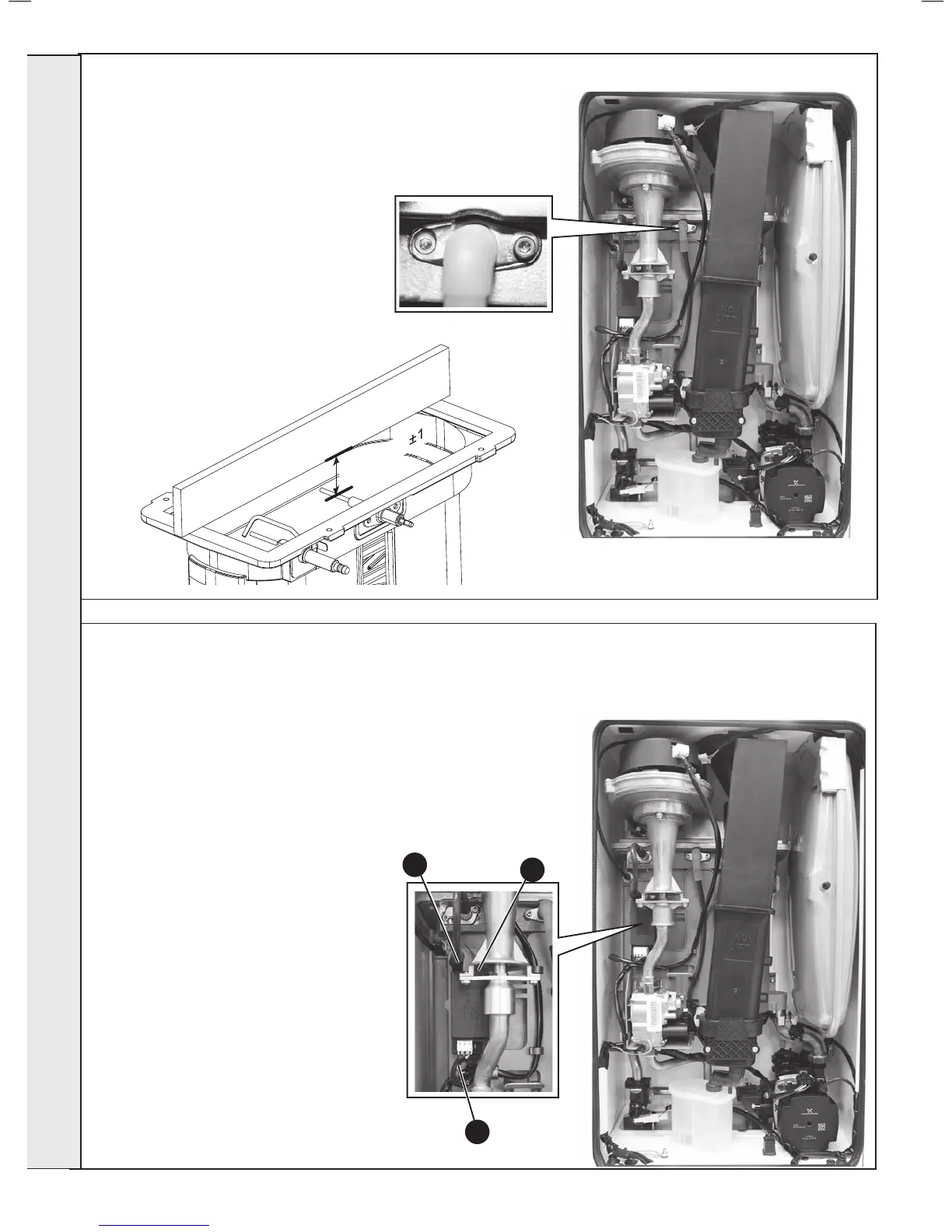

48 FLAME DETECTION ELECTRODE REPLACEMENT
49 SPARK GENERATOR REPLACEMENT
Flame Detection Electrode
12.5mm
Straight edge
1. Refer to Frame 42.
2. Remove the burner. Refer to Frame 45.
3. Unplug the ame detection lead from the
electrode.
4. Remove the 2 screws retaining the detection
electrode.
5. Remove the electrode.
6. Fit the new ame detection electrode, using the
new gasket supplied.
7. Reassemble in reverse order.
8. Check the operation of the boiler. Refer to
Frames 31 & 32.
1. Refer to Frame 42.
2. Disconnect the leads from the spark
generator
3. Remove the single M5 Screw
securing the spark generator to the
gas valve mounting bracket.
4. Lift the spark generator up and out of
the bottom retaining moulding.
5. Fit the new spark generator and re-
assemble in reverse order ensuring
that the the earth lead is replaced
6. Check operation of the boiler .Refer
to Frames 31 & 32.
Spark Generator
3
2
2

