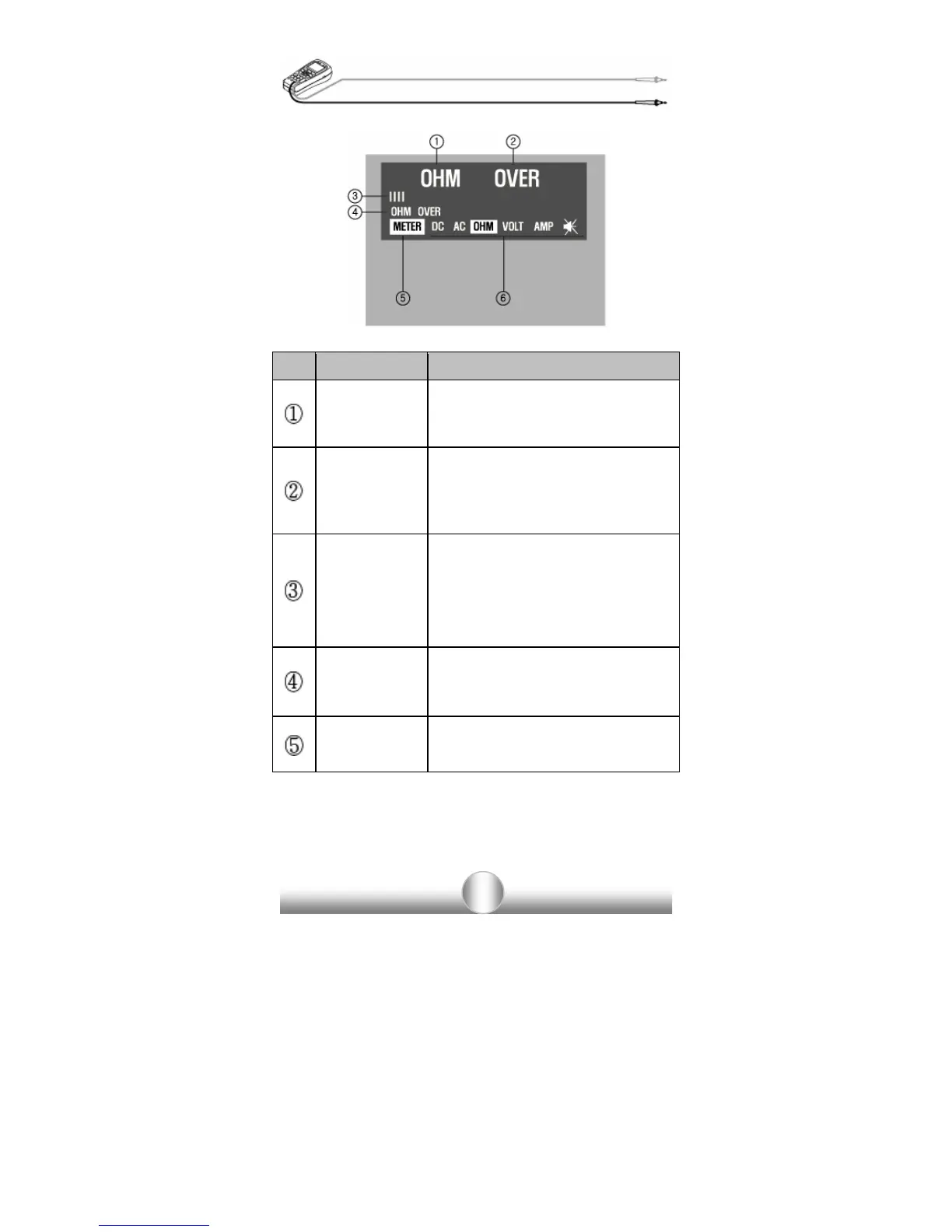

Description of Meter Mode LCD Window
PART FUNCTION DESCRIPTION
Test Mode
- Resistance test
- Continuity test
- Set-up tests of DC/AC voltage,
current
Test Value
- Ω unit of resistance test is indicated
- Indicator of AC or DC value of
voltage or current
- AC voltage & current are indicated
as RMS (root mean square)
Measured Value
Graph
- Input measured value is indicated
in the form of a bar graph relative
to the maximum input level of the
selected mode
-
Measured Value
in Memory Hold
The measured value is stored and
indicated here when SET key is
pressed while taking measurements
MODE Display Digital MultiMeter Mode is displayed
To Next Page
