18

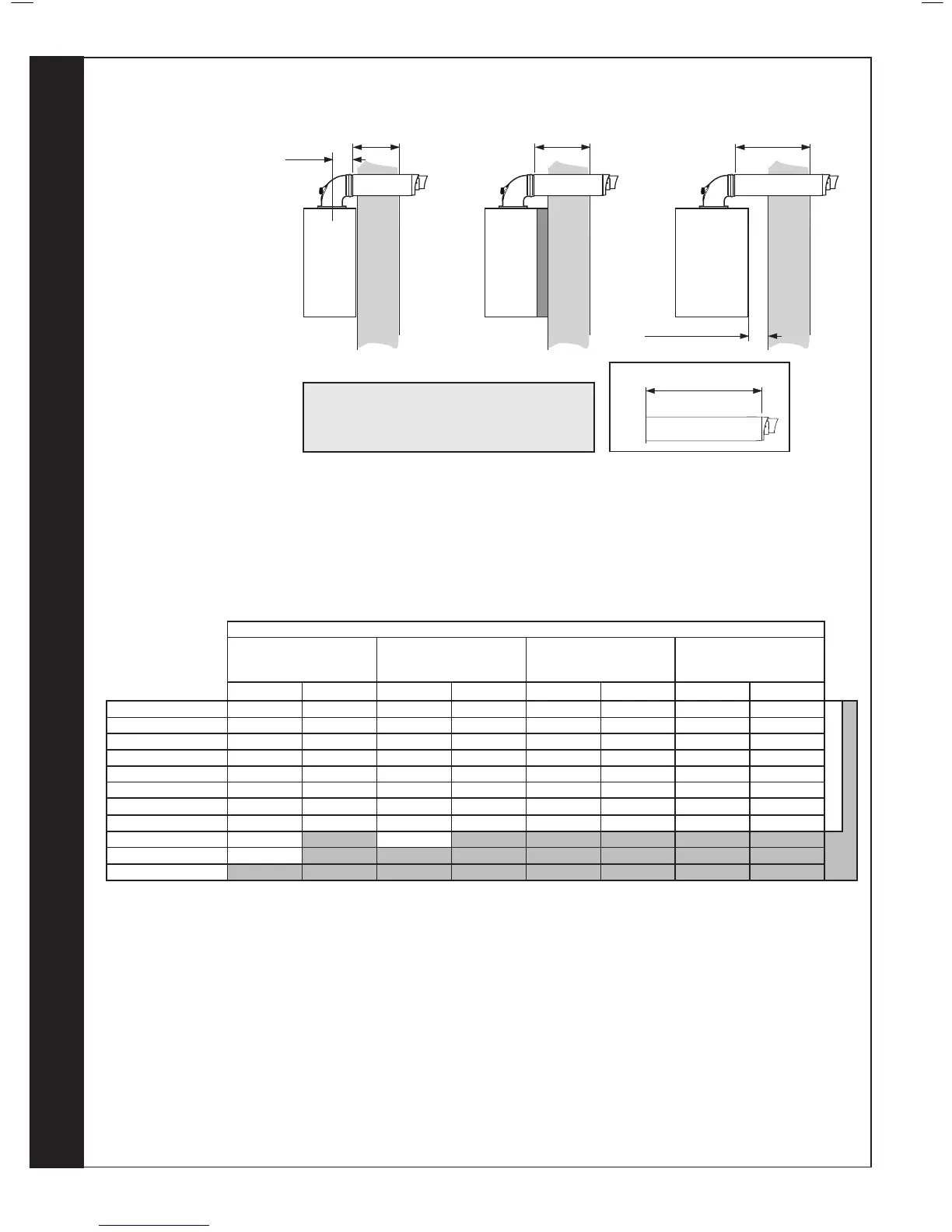

INsTALLATION
vogue combination boiler - Installation and Servicing
FLUE OUTLET
100mm
Edge of turret
to outside face of wall plus
44mm = ue length
Centre of turret to edge of turret = 100mm
Turret has a ue insertion of 30mm
The distance from the outer wall face to the wall seal ue mounting point is 14mm
Wall Mounted template & Flue
NOTES
REAR
Fit
to wall
A
WALL
Edge of turret
to outside face of wall plus
44mm = ue length
Flue length measured from outer terminal lip
to end of outer ue
A + 44mm
REAR
Fit
to wall
inc. Stand
o Frame
A
WALL
Edge of turret
to outside face of wall plus
44mm = ue length
SIDE
Fit
to wall
A
WALL
Minimum clearance 2.5mm
15 DETERMININg ThE FLUE LENgTh AND FLUE pACKs REqUIRED, CONT’D
Actual maximum ue length requirements
(outside edge of turret to out side face of wall plus 44mm (Cut Length))
Minimum&Maximumnisheduelengthsobtainable(dimension‘A’+44mm)
horizontal Flue Terminal
(600mm long) B pack
Telescopic Flue B pack horizontal Flue
Terminal (1000mm long)
B pack (Telescopic)
horizontal Flue Terminal
(1000mm long) B pack
(Telescopic) Cut 75mm
Minimum Maximum Minimum Maximum Minimum Maximum Minimum Maximum
B pack (standard) 233 602 340 553 652 869 577 794
Plus 1 (1m D pack) 1183 1552 1290 1503 1602 1819 1527 1744
Plus 2 (1m D pack) 2133 2502 2240 2453 2552 2769 2477 2694
Plus 3 (1m D pack) 3083 3452 3190 3403 3502 3719 3427 3644
Plus 4 (1m D pack) 4033 4402 4140 4353 4452 4669 4377 4594
Plus 5 (1m D pack) 4983 5352 5090 5303 5402 5619 5327 5544
Plus 6 (1m D pack) 5933 6302 6040 6253 6352 6569 6277 6494
Plus 7 (1m D pack) 6883 7252 6990 7203 7302 7519 7227 7444
Plus 8 (1m D pack) 7833 8202 7940 8153 8252 8469 8177 8394
Plus 9 (1m D pack) 8783 9152 8890 9103 9202 9419 9127 9344
Plus 10 (1m D pack) 9733 N/A 9840 10000 N/A N/A N/A N/A
Max output 32 & 40 kW
Max output 26 kW
FIgURE 1
FIgURE 2
Note. Maximum permissible
ue length is measured from
centre line of appliance ue
outlet to outside wall face.
Note; Telescopic ue B Pack or attached “D” pack extensions do not need to be cut between minimum and maximum values
shown above (except where specied). Horizontal Flue Terminal (600mm long) B Pack ue will require cutting on values
below maximum values shown above.
