sERVICINg
45

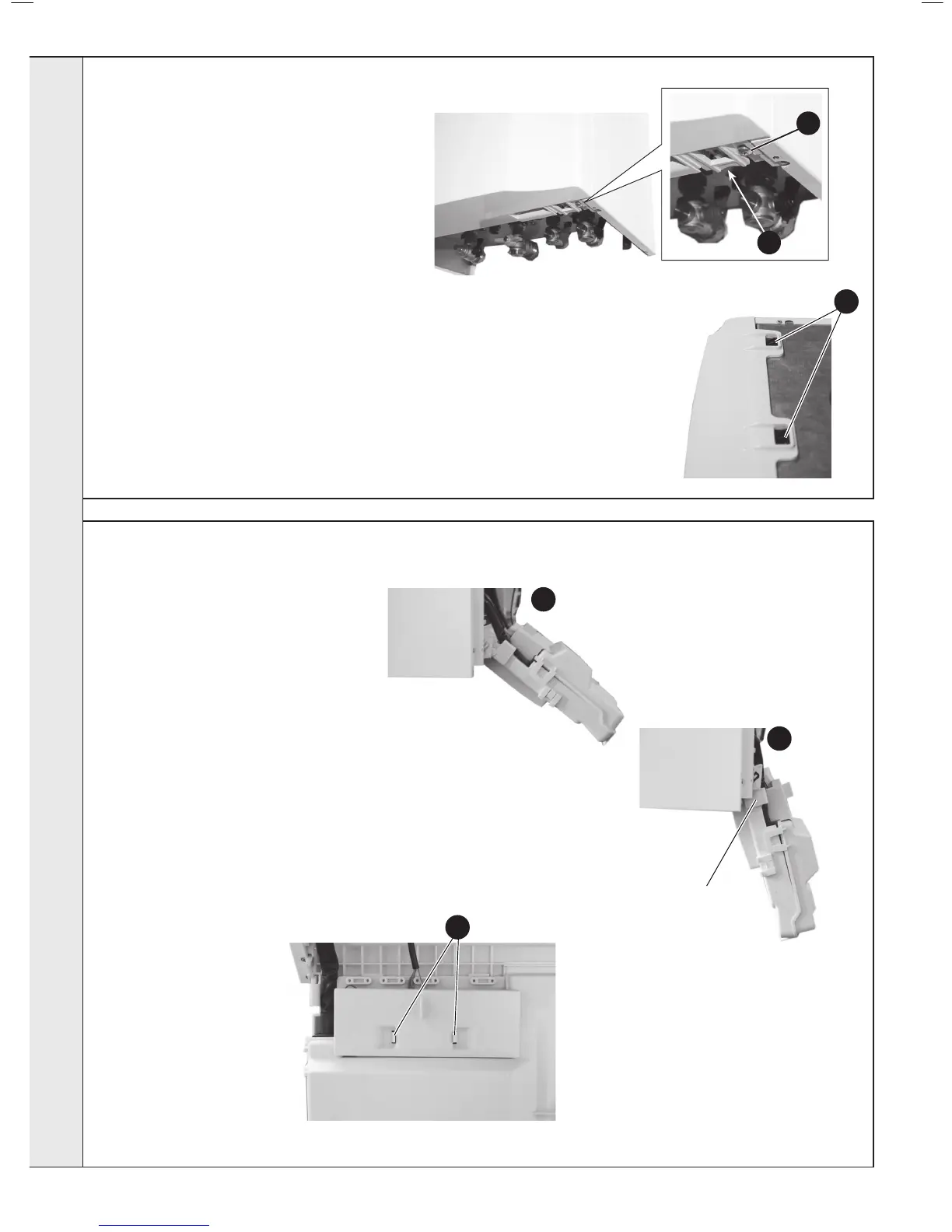

BOILER FRONT pANEL REMOVAL / REpLACEMENT
REMOVAL
1. Loosen the 2 screws retaining the front panel at
the bottom.
2. Release catches at rear of door by pulling
downwards.
3. Pull the underside front panel forward then lift
upwards to remove.
REpLACEMENT
3. Engage the top of the front panel on the locating
lugs and push the panel back into position
engaging the securing screws
4 Re-tighten the securing screws.
46
LOWERINg ThE CONTROLs p ANEL
3
1
1. Once the front panel has been removed
the controls panel can be hinged down
to access the wiring and electronics or
the internal components of the boiler.
2. To lower the panel further (position 2)
squeeze the 2 clips inward and hinge
the panel into a lower position.
3. To gain access to the mains wiring
connection squeeze the 2 lugs together
and remove the cover.
Position 1
3
2
Position 2
Clip
1,4
2
sERVICINg
