IDEC HG4F User Manual

Chapter 3 Screen Creation
20
www.IDEC.com/software
[SET UP] button
Create a [SET UP] button that will change from [Operating Screen] to [Numerical Target
Setting Screen] when pressed.

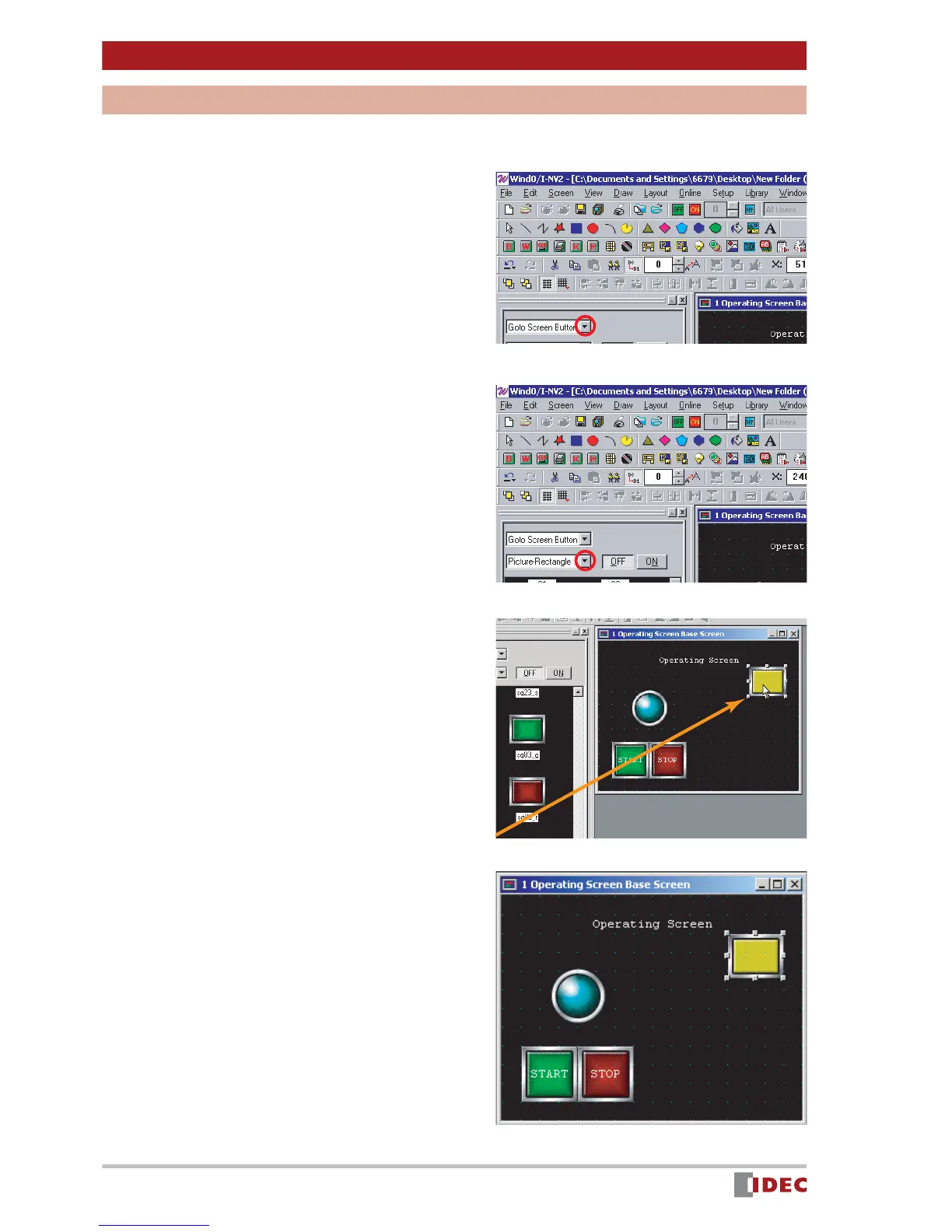

1. To create a [SET UP] button, select
the Goto Screen Button .
Click [ ] for the parts list, and select
Goto Screen Button .
2. Click [ ] for shape, and select
Picture - Rectangle .
3. Select the desired part, and place
the part on 1 Operating Screen
Base Screen using the drag &
drop function.
In this example, select the Goto Screen
Button sq81_y .
4. Double-click the part placed on the
screen.
The Properties of Goto Screen Button
window will be displayed.


