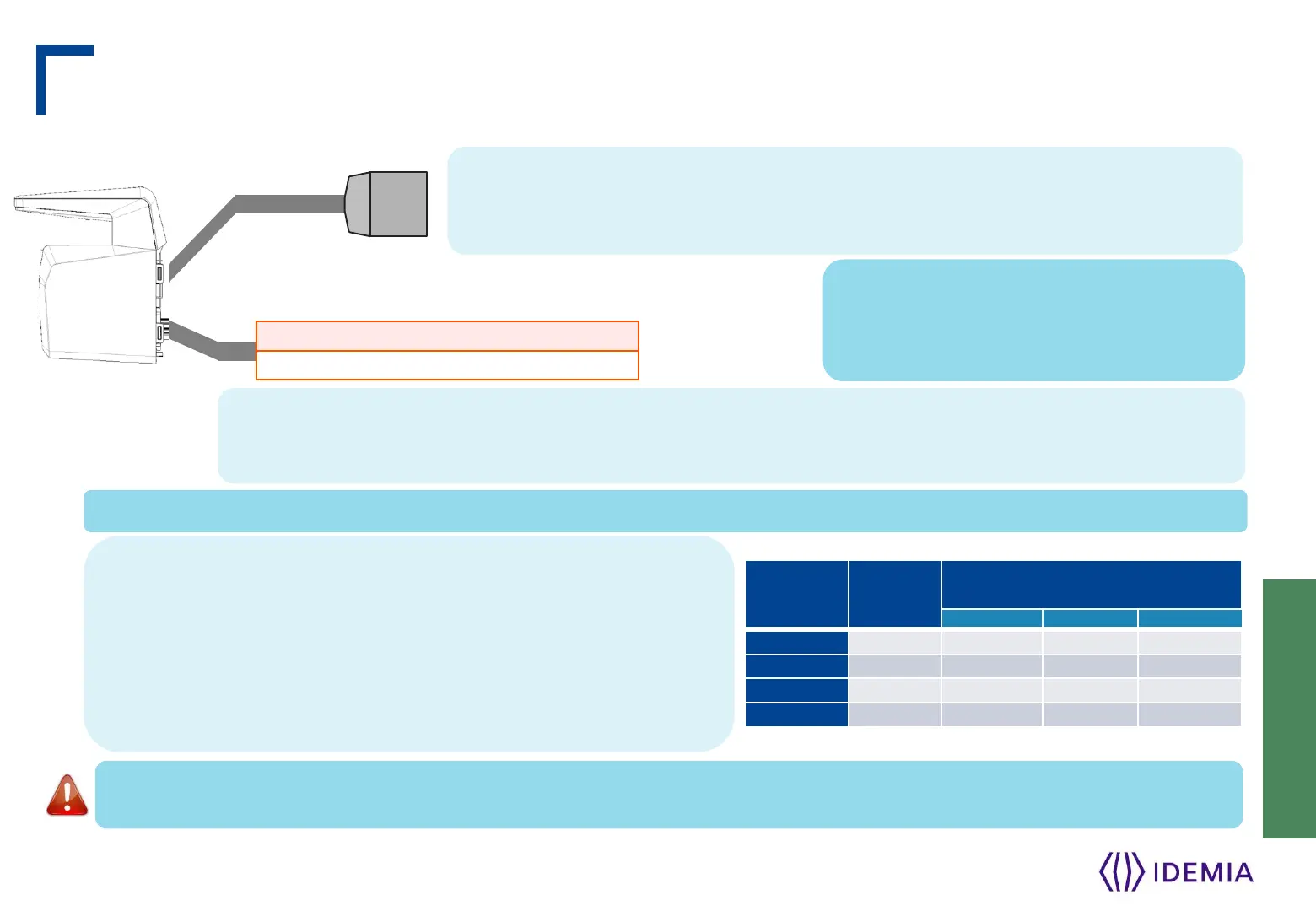

Power supply
11
External Power Supply: 12-24 Volts (regulated and filtered) 2.5 Amp min @12 V, CEE/EEC EN60950
standard compliant. If sharing power between devices, each unit must receive 2.5 A (e.g. two units would
require a 12 VDC, 5 A supply).
Power Over Ethernet (POE+): power can be provided through RJ-45 connector
using a PSE (Power Sourcing Equipment) IEEE802.3at type 2 compliant.
The terminal is a Class 4 (25.5 W) PD (Powered Device).
Step two : wiring
PoE+ Injector Specs
 Output Voltage: 48 VDC
 Output Current: 0.64 A
 Power: 30 W
A battery backup or uninterrupted power supply (UPS) with built-in surge protection is recommended.
WARNING: Under powering may cause memory and data corruption; over powering may cause hardware damage.
Both of these situations will void the warranty
Gauge
AWG
Section
(mm
2
)
Maximum distance (meters
)
vs power source rating
12V+/-10% 12V+/-5% 24V+/-10%
16 1.31
9 m 20 m 300 m
18 0.82 6 m 12 m 200 m
20 0.52
3 m 8 m 120 m
22 0.32 2 m 5 m 75 m
IDEMIA recommends using a 24V power supply and AWG16 gauge
cable. The voltage measured on the product block connector of the
terminal must be equal to 12V-24V (-15% / +10%).
The voltage drop due to the cable shall be taken into account. The
table at the right, shows the maximum distance between power
supply and 1 unique device, depending on cable gauge and power
supply rating.
RJ45
IDEMIA - 2018_2000035854 – V1
1-3
Power + 12V
Red
2-4
Power GND
Black
