JMSR1: MSR Connector

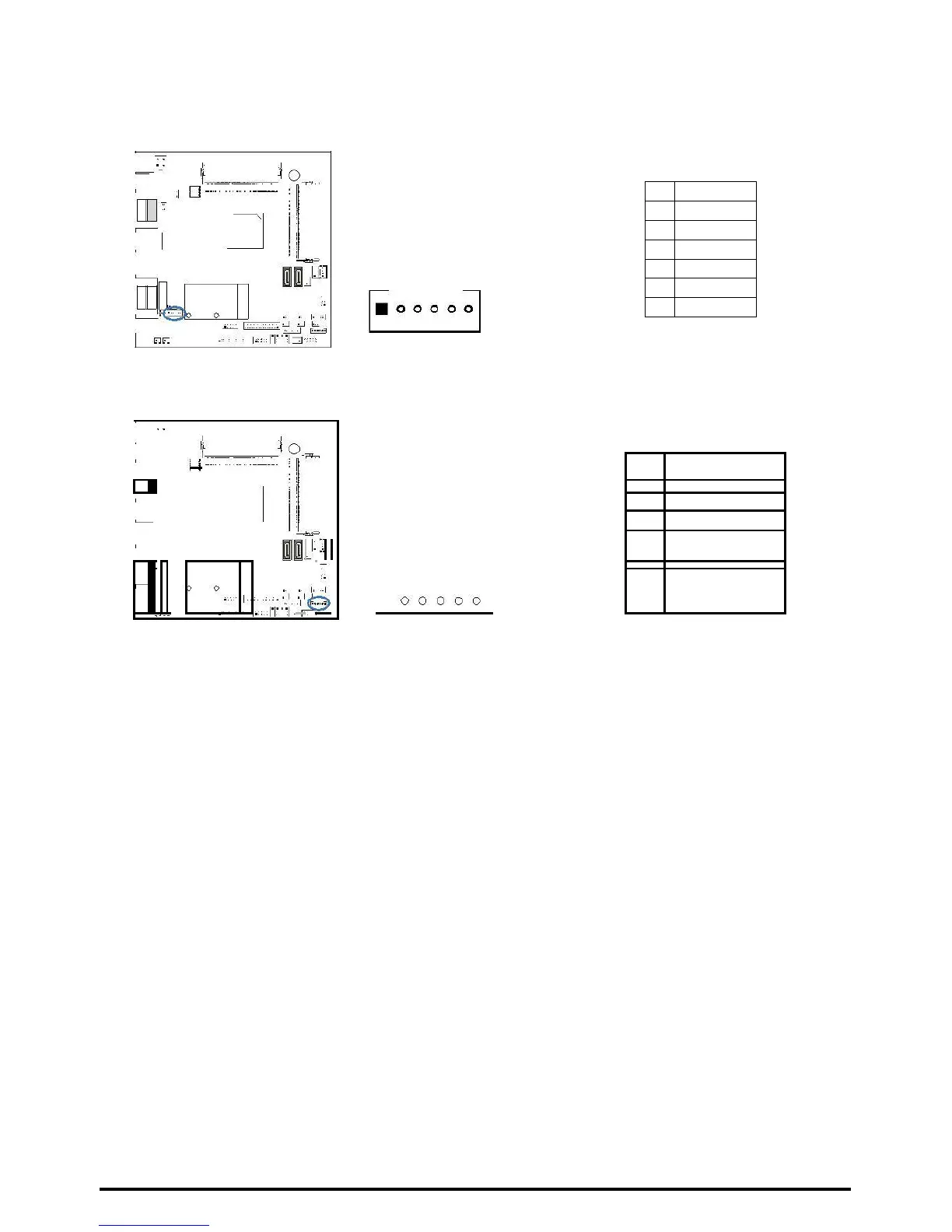

The mainboard provides MSR connector.
Pin
Assignment
1
PS2CLK
2
PS2DAT
3
KCLK
1
6
4
KDAT
5
GND
6
+5V
JSIM1: SIM card header
This mainboard is equipped with one SIM card header for Mini PCI-E Slot.
Pin
Assignment
1
GND
2
UIM_RESET
3
UIM_CLK
4
UIM_DATA
1
6
5
UIM_VPP
6
UIM_PWR
