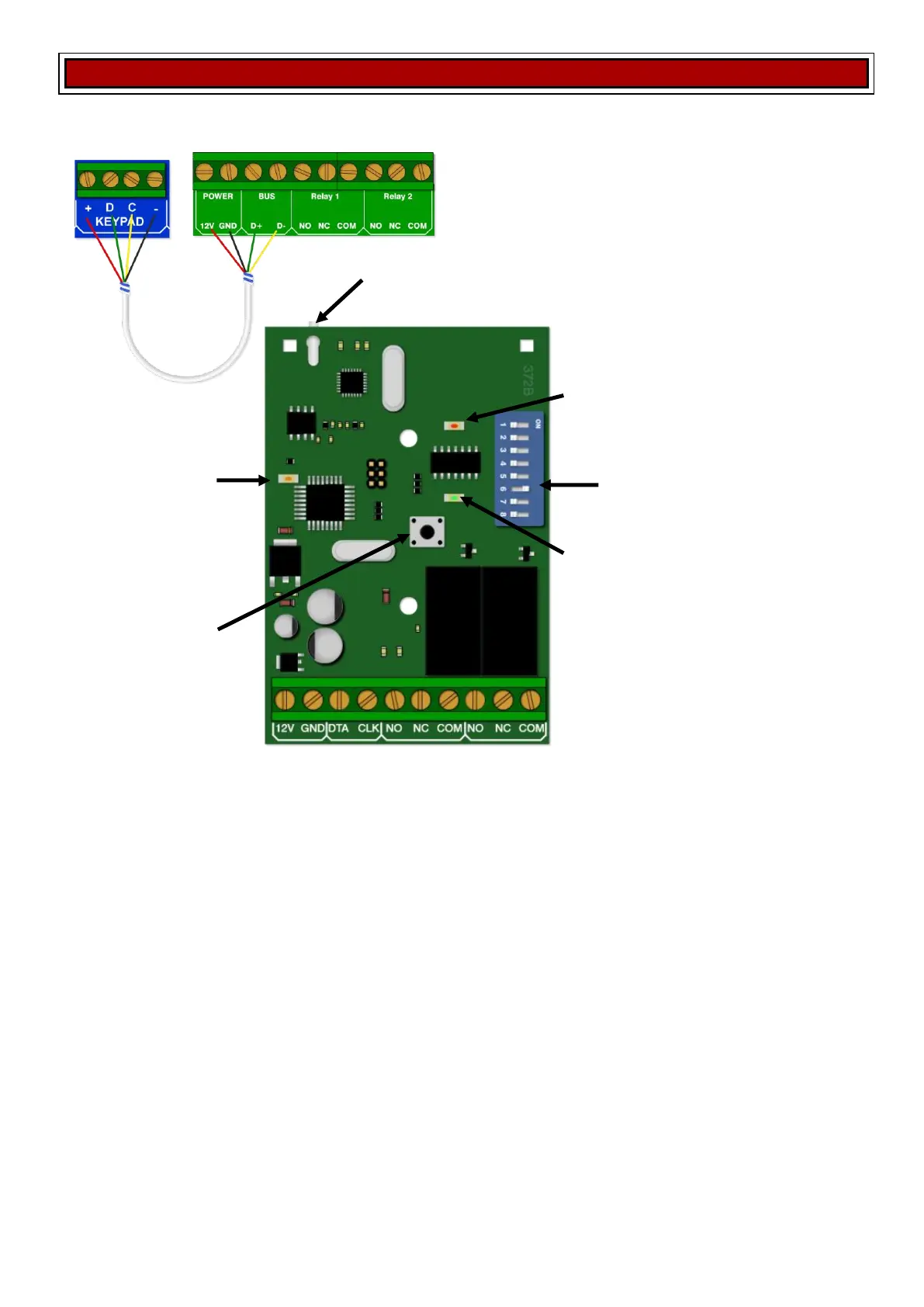

Connections

IDS 805 IDS Analogue Rx Mk ll

Bus Status LED: On - Indicates if the receiver is connected to the keypad bus

Flashing – Not connected to the bus

Function LED: Comes on for a second if a known remote transmitter signal is received

Remains off if an unknown remote transmitter signal is received

Power LED: Comes on for a second if an unknown remote transmitter signal is received

Remains off for known remote transmitter signals are received

Bus Status LED

Power LED

Function LED

Dip Switch

Antenna

Tamper Switch
