Assign a Relay to a Button

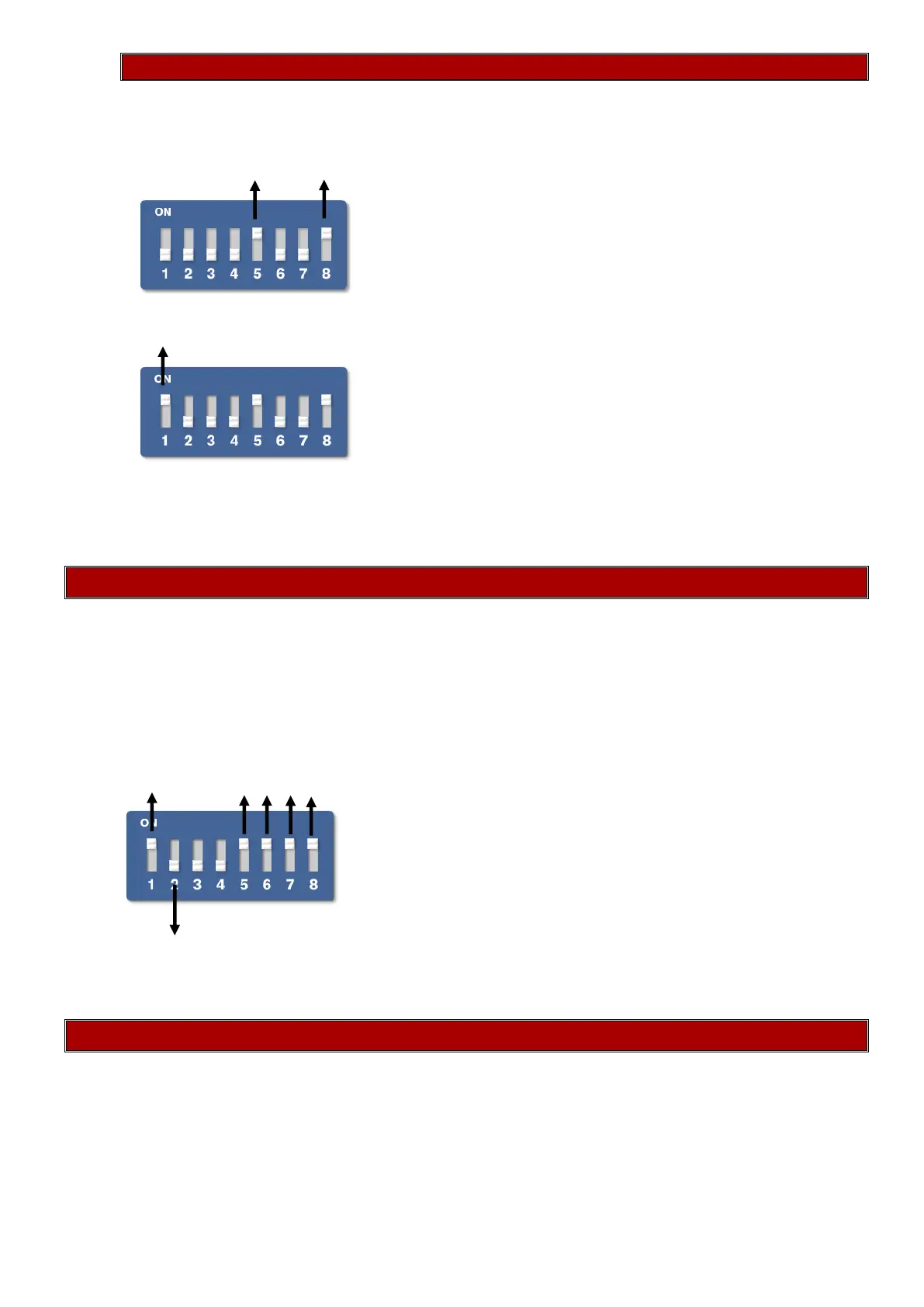

To assign a button to trigger a relay:
1. Switch dip switch 5 on
2. Switch dip switch 8 on
5 8
3. Switch dip switch 1 on for relay 1 or dip switch 2 on for relay 2
1 for relay 1
4. Press the button on the remote that must trigger the relay selected
5. Switch dip switch 8 off
6. Switch dip switches 5 & 1 off
Relay Pulse or Toggle
By default each relay is set to pulse, they will trigger for 3 seconds and then return to their default state or
they can be set to toggle from one state to the next when a button is pressed.
To set a relay to either pulse or toggle:
1. Switch dip switches 5, 6, 7 on
2. Switch dip switch 8 on
3. Dip switch 1 on for relay 1 to pulse, 1 off to toggle relay 1 and dip switch 2 on for relay 2 to
pulse, 2 off to toggle relay 2
Pulse 5 6 7 8
Toggle
4. Put dip switch 8 off
5. Put dip switches 7, 6, 5, 2, 1 off
Relay Pulse Time
By default relays are set to a pulse length of 3 seconds.
To change the pulse length:
1. Switch dip switch 7 on
2. Switch dip switch 8 on
3. Switch dip switch, 1 for relay 1 or 2 for relay 2, on for the length of time you want the relay to
pulse and then off.
4. Switch dip switch 8 off
5. Switch dip switch 7 off
In this example:
Relay 1 will pulse
Relay 2 will toggle
