1.2. Jumpers
The IDS Xwave Universal Wireless Transmitter has 3 jumpers that allow you to set the
supervision time, select the mode and select normally open/close inputs.
JP 1 - Supervision Time
ON
Supervision Time is set to 90 minutes
OFF
Supervision Time is set to 12 hours
The Supervision Time is how often the transmitter will send a supervision signal. If no
supervision signal is received by the receiver a Supervision failure will be created.
JP 2 - Mode
ON
Door Magnet Mode (Open and Close signals)
OFF
Standard Mode (Open only signals)
Door Magnet Mode sends an open signal when the input changes state and sends a
close signal when it changes back.
Standard Mode only sends an open signal when the input changes state and doesn't
send anything when it changes back. (The panel/receiver will automatically close the
zone)
JP 3 - Trigger Circuit
ON
Normally Open Circuit (Triggers when the circuit is closed)
OFF
Normally Closed Circuit (Triggers when the circuit is opened)

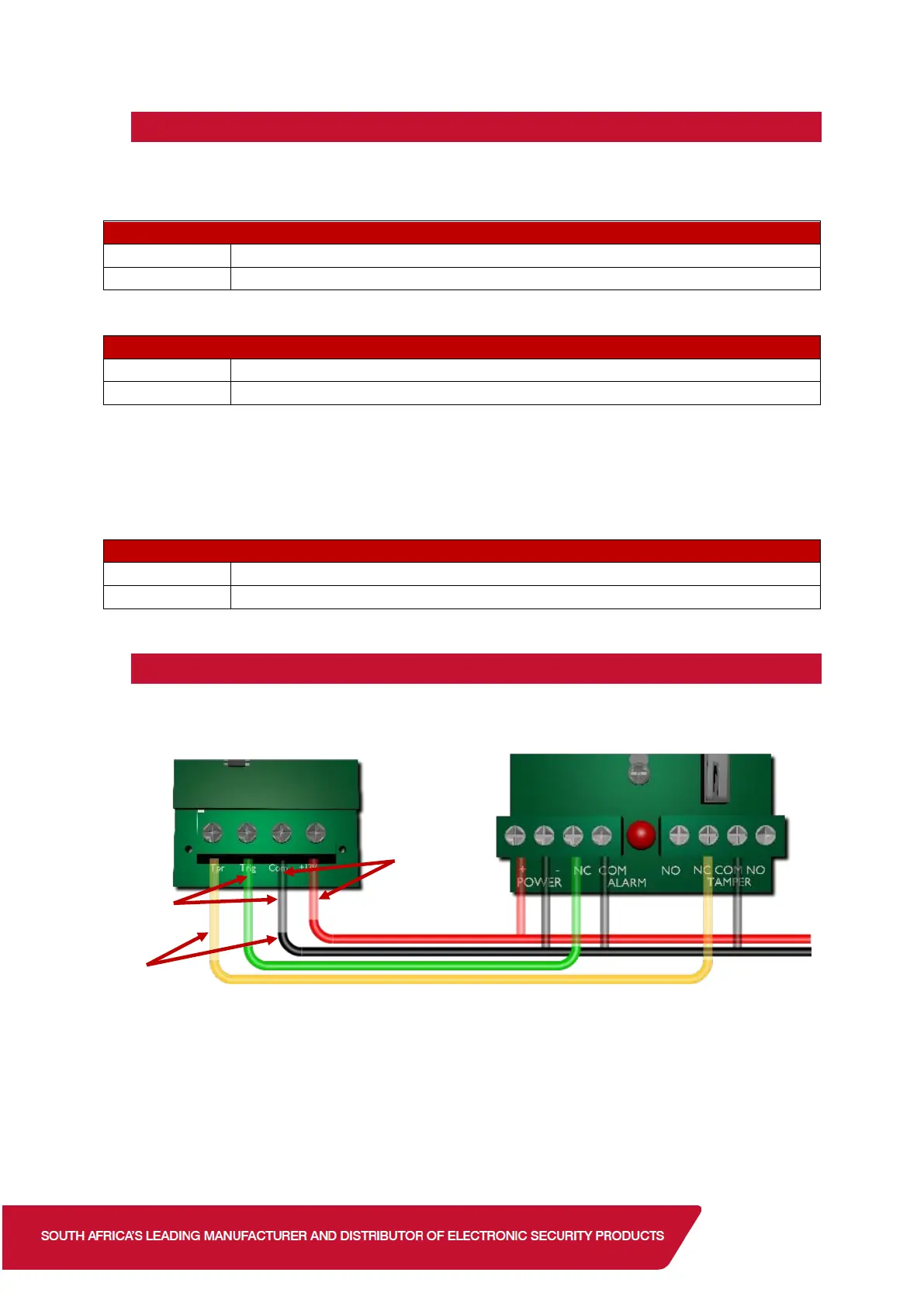

1.3. Wiring
Note: The Com input is used for the power negative as well as for the trigger and
tamper common.
12vDC
Alarm Trigger
Tamper
Universal Transmitter
Wired Detector
