IDS Xwave Training Manual

1. Hardware Overview
The Xwave repeater requires a contain 12v DC supply due to the repeater needing to
be in a continuous “listen” mode. The batteries are only used as a battery backup due
to AC power failure.

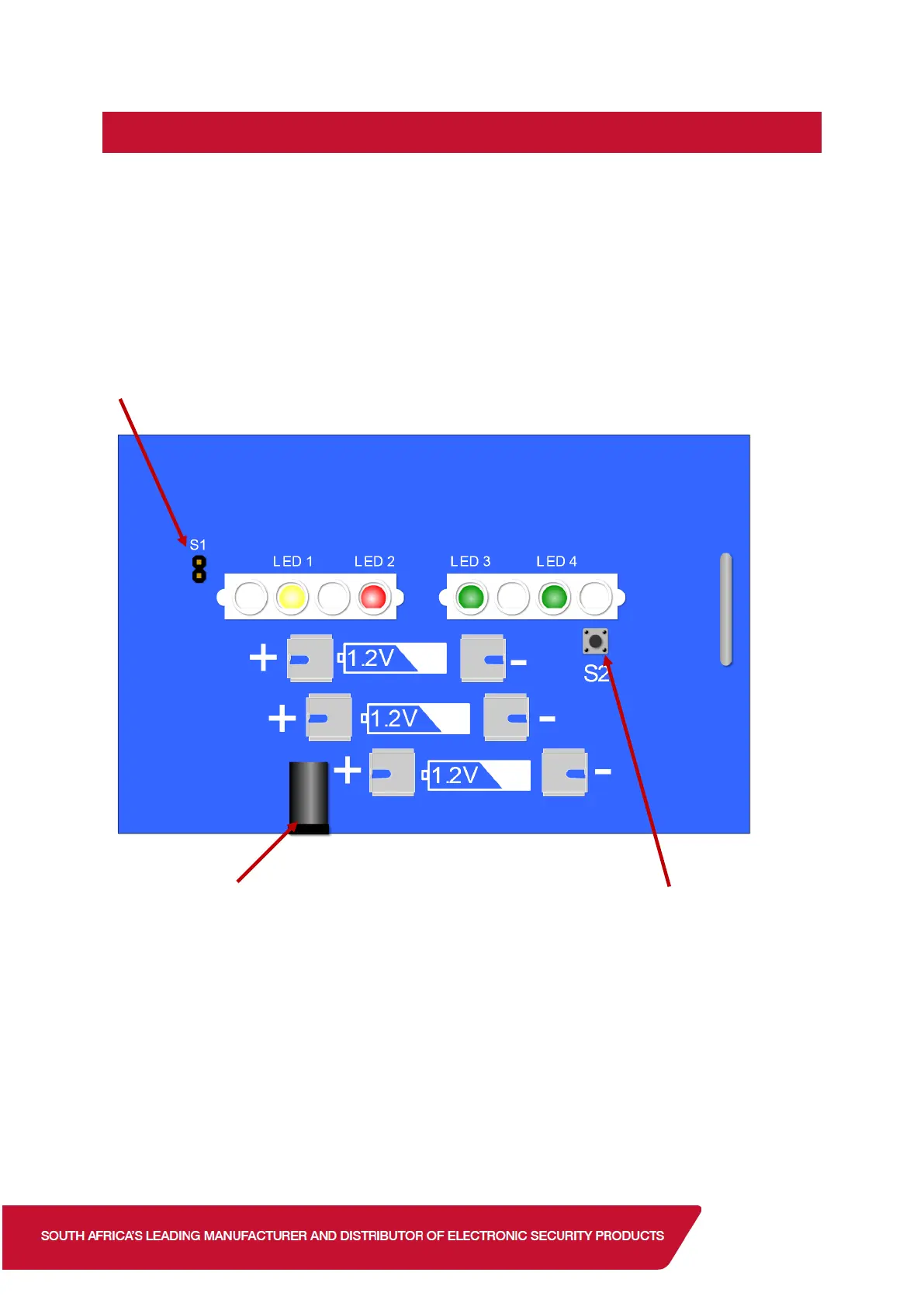

To open the Xwave repeat cover, remove the two screws from underneath the unit. The
drawing below shows the inside of the Xwave repeater with the jumper and LEDs
functions.
S1 – Enable/Disable LEDs
12v DC Power Input S2 – Enter Learn Mode
LED1 – On when Xwave repeater receives a learnt Xwave signal
LED2 – On when Xwave repeater transmits an Xwave signal (repeating)
LED3 – Power/RF signals – Will flash when there is any 433Mhz RF signal
LED4 – On when Xwave repeater is in learn mode

IDS Xwave Specifications

General

Brand	IDS
Model	Xwave
Category	Receiver
Language	English
