6 Installation
6.1 Installation of the device
► Mount the device on a DIN rail in a housing protected against dust and
humidity (min. IP54 - degree of soiling 2).
6.2 Installation of the pulse pick-ups (sensors)
► Mount the pulse pick-ups mechanically separated from each other.
(Not together on a mounting bracket.)
► Lay the cables to the pulse pick-ups separately and protect them against
damage.
6.3 Arrangement of the damping cams
The arrangement of the damping cams and the gaps must ensure that at
leastonesensorisalwaysdamped(→5.8Sensormonitoring).

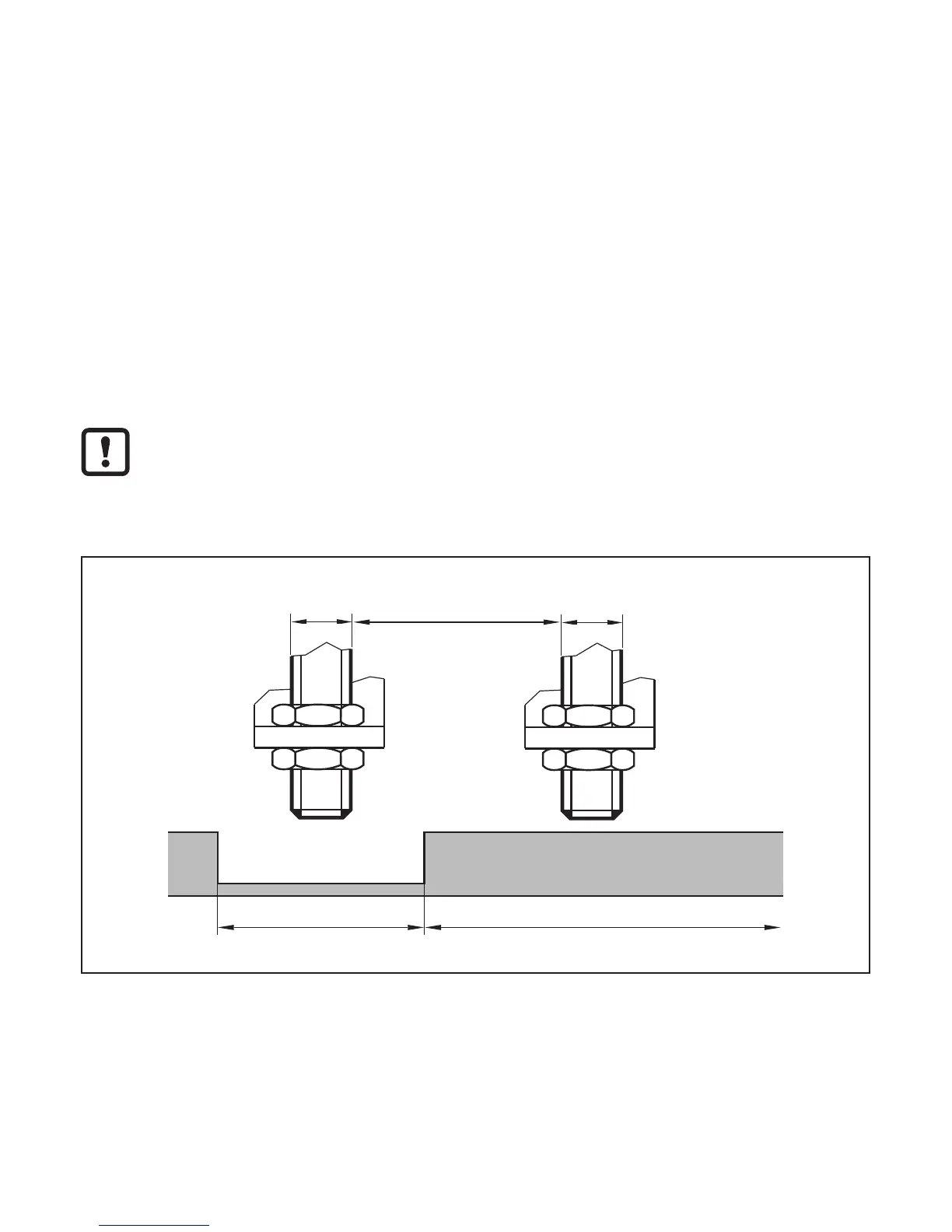

6.3.1 Example rack
3 x D ≥ 5 x D
3 x D
D
D
Mechanical requirements
