15
UK

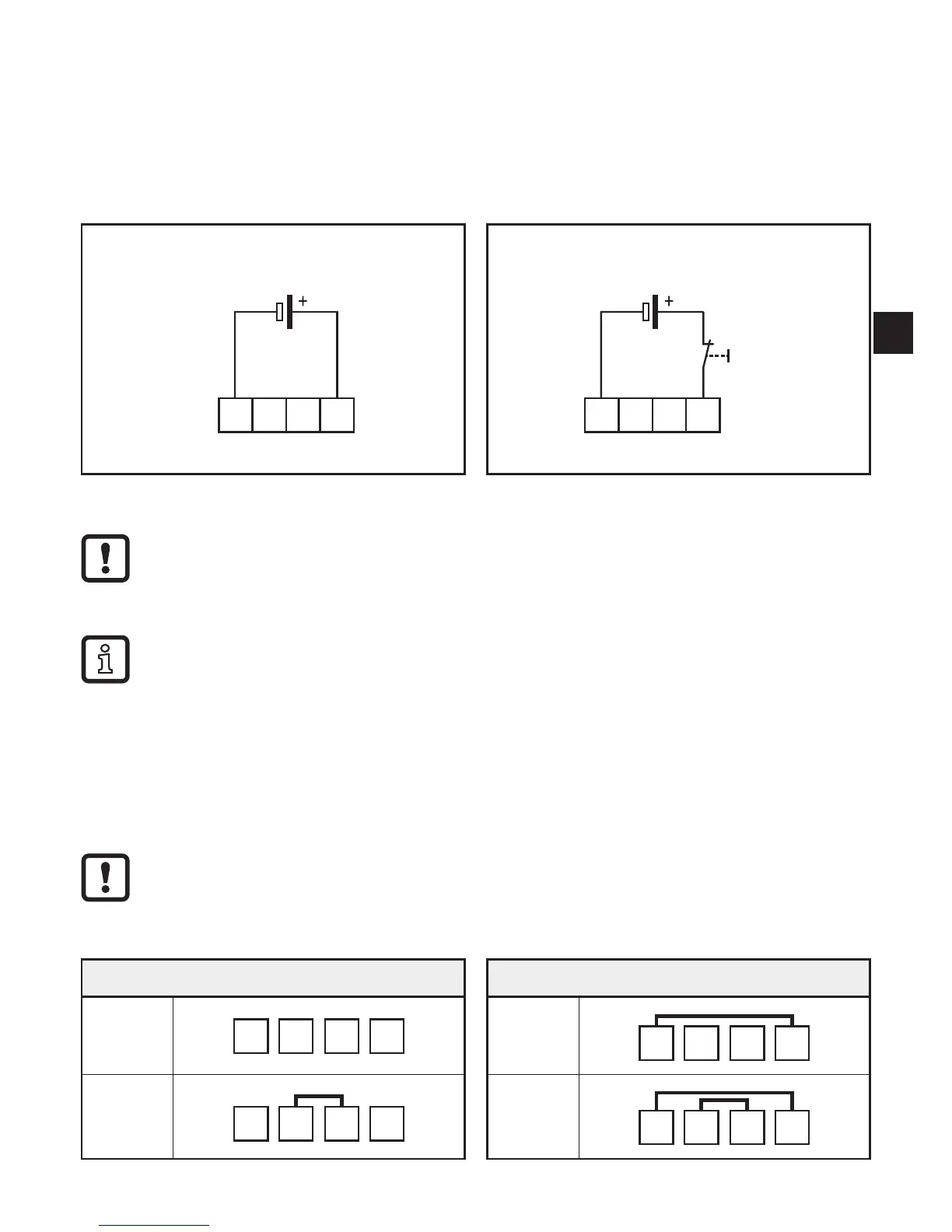

7.2 Supply voltage
► Connect the supply voltage of the device to terminals L+ and L-.
For safety reasons the unit can only be restarted by separation from the voltage
supply in case of a fault.
It is thus recommended to install a RESET button in series with the L+ circuit.
Y2L-A1 L+
24 V DC
Y2L-A1 L+
24 V DC
RESET
Supply voltage RESET button
The external supply unit must have a safe separation. In case of a fault the
supply voltage can exceed the value of 60 V DC for a maximum of 200 ms,
but must not exceed the value of 120 V DC.
After power on or a RESET the device carries out self diagnostic functions.
This self diagnosis lasts approx. 6 seconds. The unit is then ready for
operation.
7.3 Switch point setting
► Set the requested switch point via a hard-wired bridge on the terminals S33,
S44, Y2 or Y6.
Only change the switch point when disconnected from power.
When switched on, a change of the circuitry will produce an error message
of the device.
Wiring Wiring
0.2 Hz
S33 S44
Y2 Y6
1.0 Hz
S33 S44
Y2 Y6
0.5 Hz
S33 S44
Y2 Y6
2.0 Hz
S33 S44
Y2 Y6
