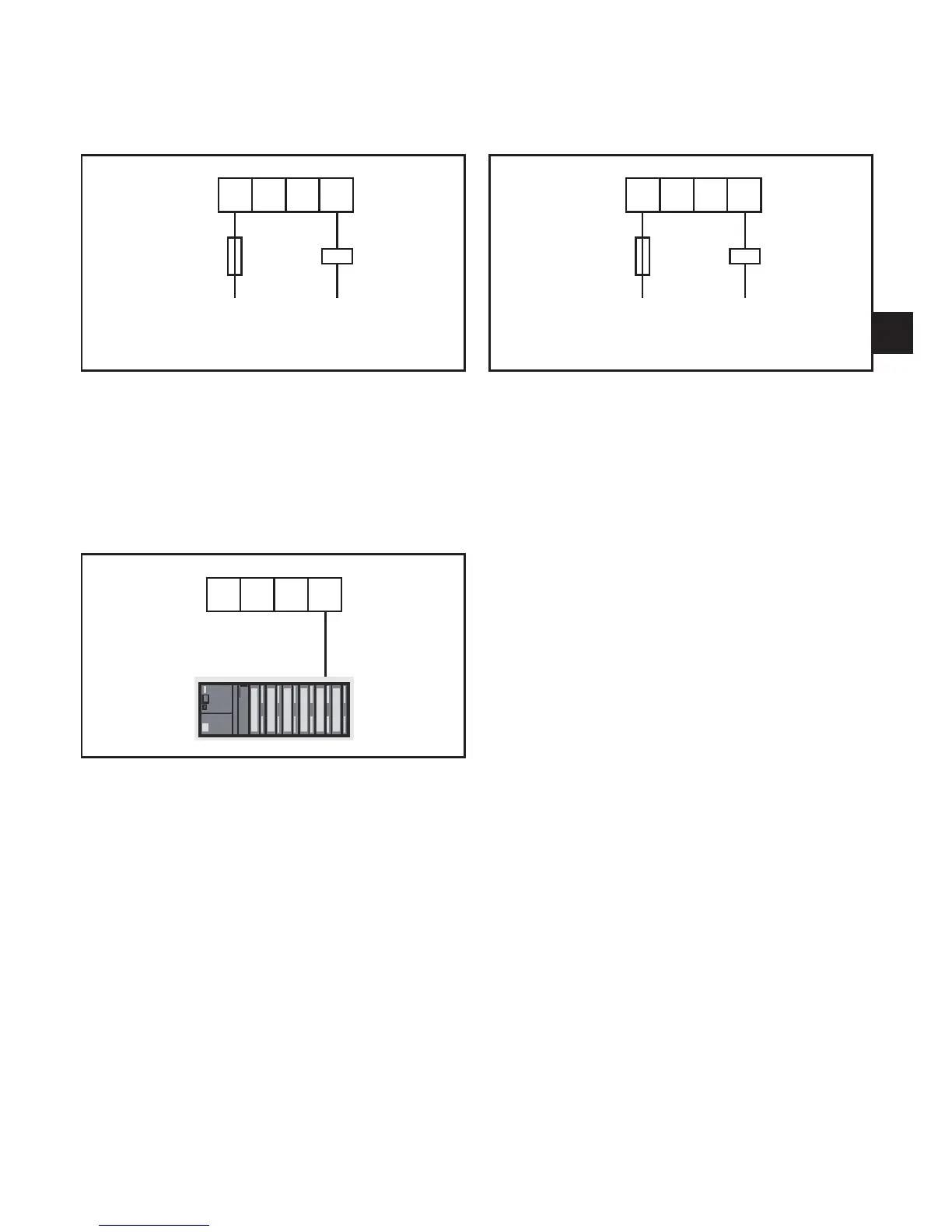

7.6 Switching outputs 14-23 and 24-24
► Connect to load to be controlled to the outputs C1 (13-14) and/or C2 (23-24).
► Observethemaximumandminimumloadconditions(→11Technicaldata).
13C1 14
K13,6 A
L1
L+
N
GND
23C2 24
K23,6 A
L1
L+
N
GND
Switching outputs
7.7 Y7 transistor output
► Connect transistor output Y7 to the signal input of the PLC.
► Observethecharacteristicdataoftheoutput(→11Technicaldata).
Y5 Y6Y4A2 Y7
SPS
Fault
Transistor output
