7 Electrical connection
► Use 60/75°C copper conductors only.
Do not use unconnected terminals as support point terminal.

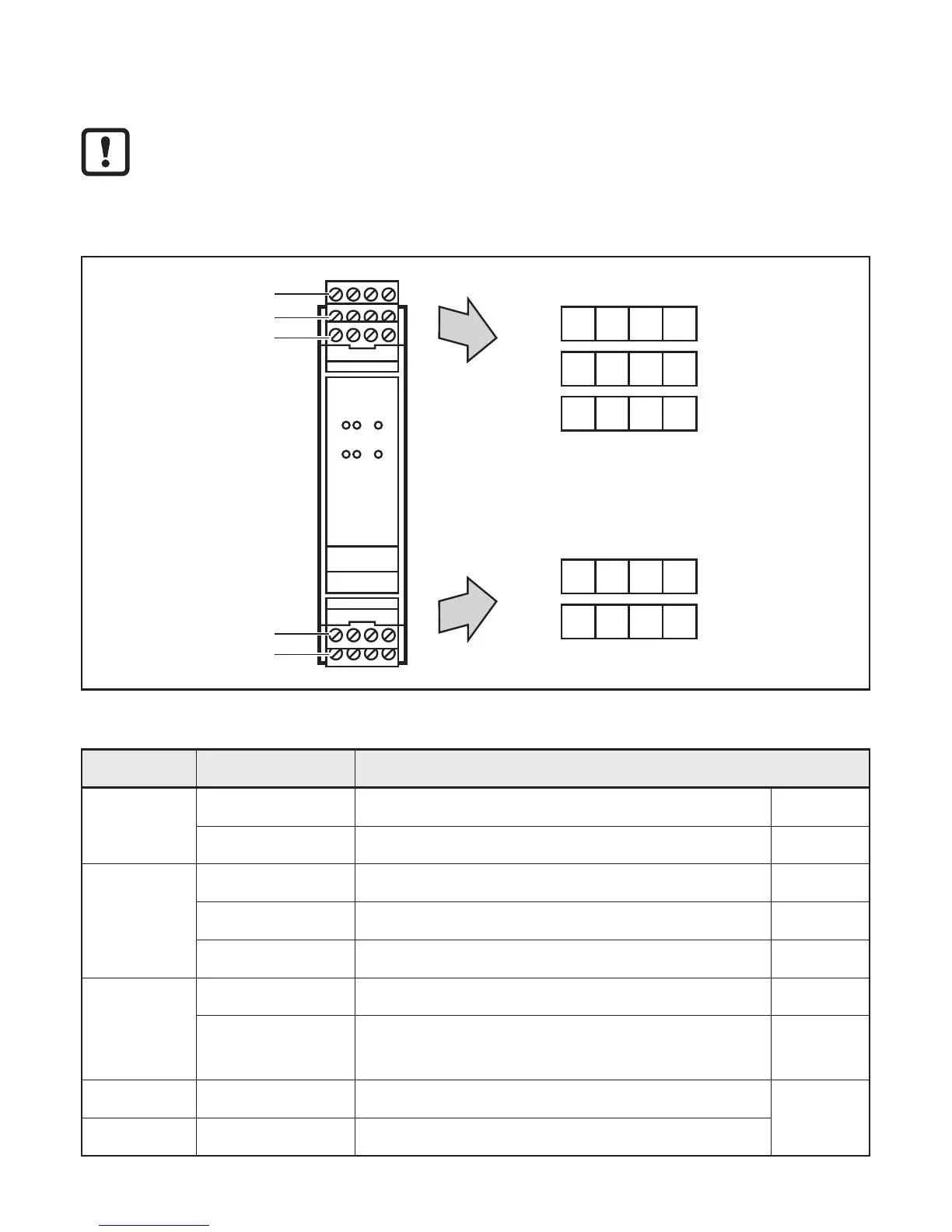

7.1 Connections (overview)
A3
A2
A1
C1
C2
S34 S43S33 A3 S44
Y5 Y6Y4A2 Y7
Y2L-A1 L+
13C1 14
23C2 24
Combicon connector
Connector Terminal Connection
A1 L-, L+ Supply voltage (→7.2)
Y2 Switch point setting (bridging) (→7.3)
A2 Y4, Y5 Feedback contact (→7.5)
Y6 Switch point setting (bridging) (→7.3)
Y7 Transistor output (→7.7)
A3 S34, S43 Pulse inputs (→7.4)
S33, S44 Switch point setting (bridging)
Supply voltage sensors
(→7.3)
(→7.4)
C1 13, 14 Switching output 1
(→7.6)
C2 23, 24 Switching output 2
