5.3 Switching function
In accordance with a "safe standstill message", the output relays are energised
when the switch point is not reached or with standstill.
The output relays K1/K2 switch (are energised) when the set switch point is 5%
below the set level. They switch back (are de-energised) when the set switch point
is exceeded by 5%.
[Hz]
1,00
1,05
0,95
f
− 5 %
+ 5 %
t

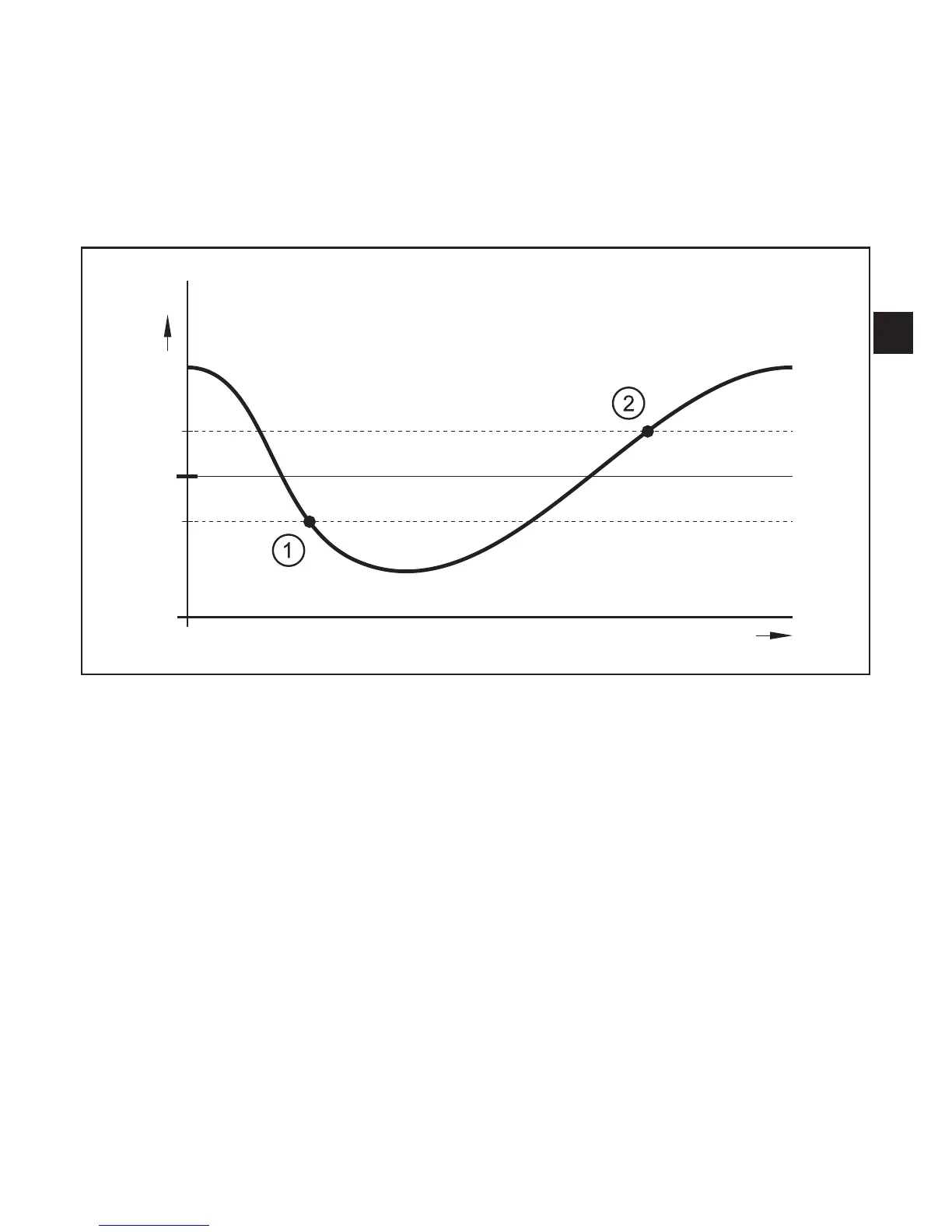

Switching function
e.g. switch point setting 1 Hz
1: Switching outputs close
"Standstill" message
2: Switching outputs open
"No standstill" message
5.4 Switch point setting
Via an external circuit the switch point can be selected from 4 preset values (0.2 /
0.5 / 1 / 2 Hz).
(→7.3Switchpointsetting)
5.5 Switching outputs 14-23 and 24-24
Each input channel has an effect on the output relay.
The NO contacts of the output relays K1/K2 are connected in series. The
switching outputs are closed when both output relays have switched.
By means of the switching outputs a door guard locking system can, for example,
be controlled.
