4.5 Delay time for the switching output OUT1
When a delay time is set (→ 10.3.2), OUT1 does not change its switching state
right away when the set switching limits (SP1, rP1) are exceeded or not reached
but only after the delay time (power-on delay time dS1, power-off delay time
dr1) has elapsed� If the switching condition is no longer met after the delay has
elapsed, the switching state of the output does not change�

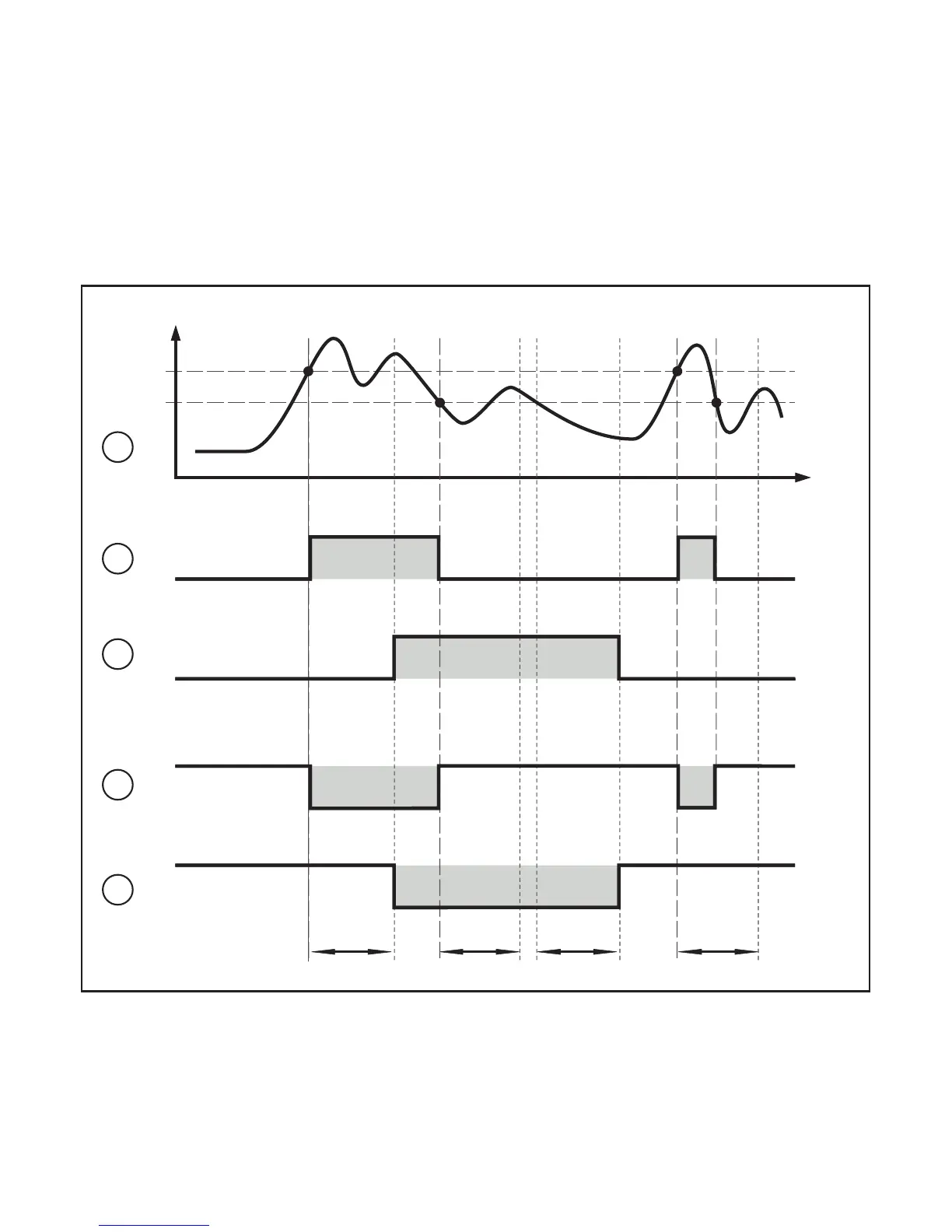

Switching function on OUT1 with and without delay time:
dS1 dS1dr1dr1
t
T
1
0
1
0
1
0
1
0
SP
rP
1
2
3
4
5
T = temperature
SP = set point
rP = reset point
t = time
dS1 = switch-on delay time
dr1 = switch-off delay time
