IFM Electronic VKV021 - Operating and display elements

6

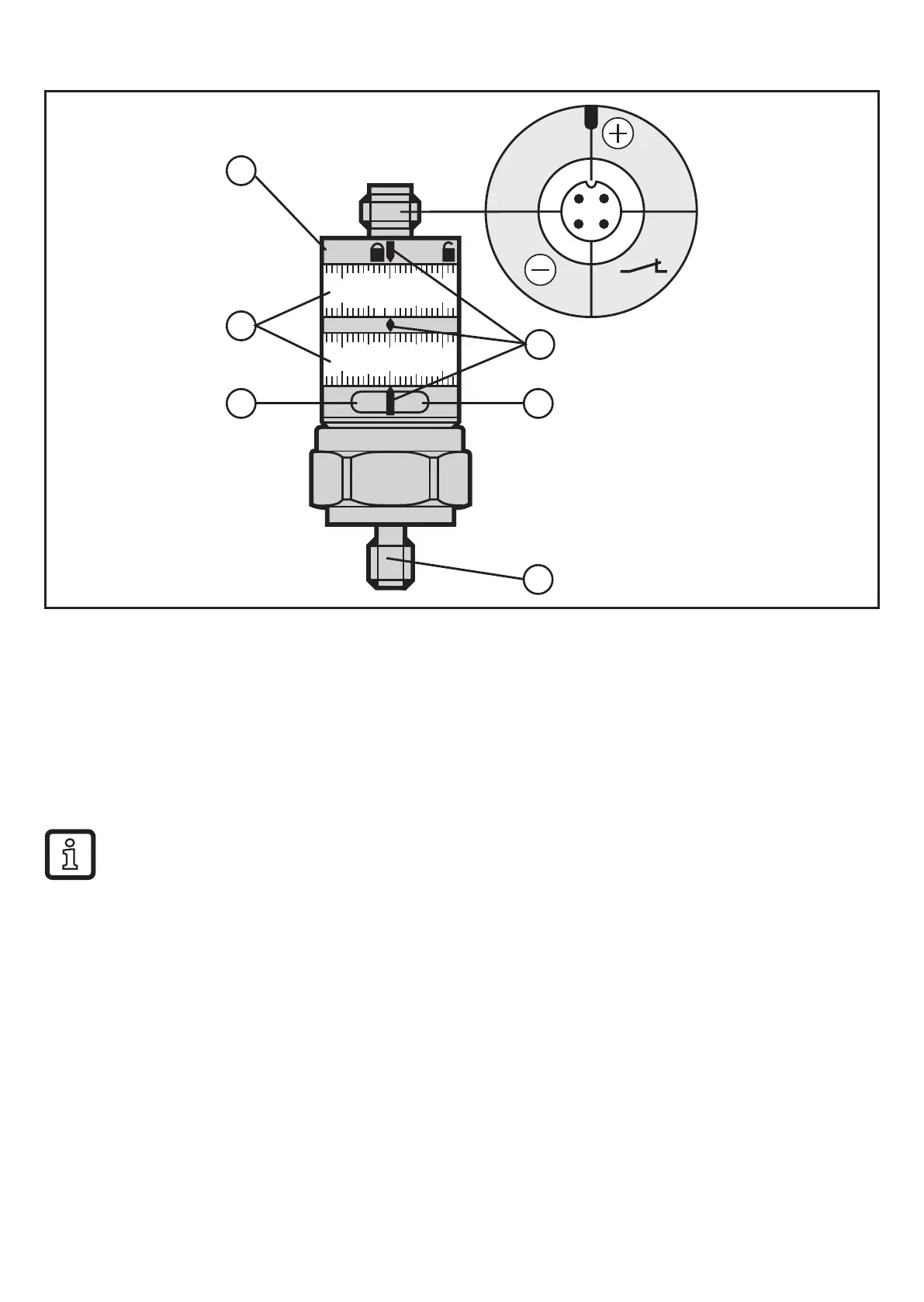

6 Operating and display elements
RMS Set
Delay Set
1
3
2
4
L+
GND
4...20 mA
1
2
3 5
4
6
1:lockingring
2:settingrings(manuallyadjustableafterunlocking)
3:LEDgreen:voltagesupply
4:M8processconnection
5:LEDyellow:lightswhenswitchingthresholdandtimedelayareexceeded
6:settingmarks
Toachievethesettingaccuracy:firstpositiontheringstothelowerend
stop value, then set the requested value�
