ifm Device Manual SmartSPS AC14 with EtherNet/IP interface (AC1421, AC1422), Firmware 3.1.2 2015-11-30
Operation Menu view
>
4.2.2 Navigation aids
15830

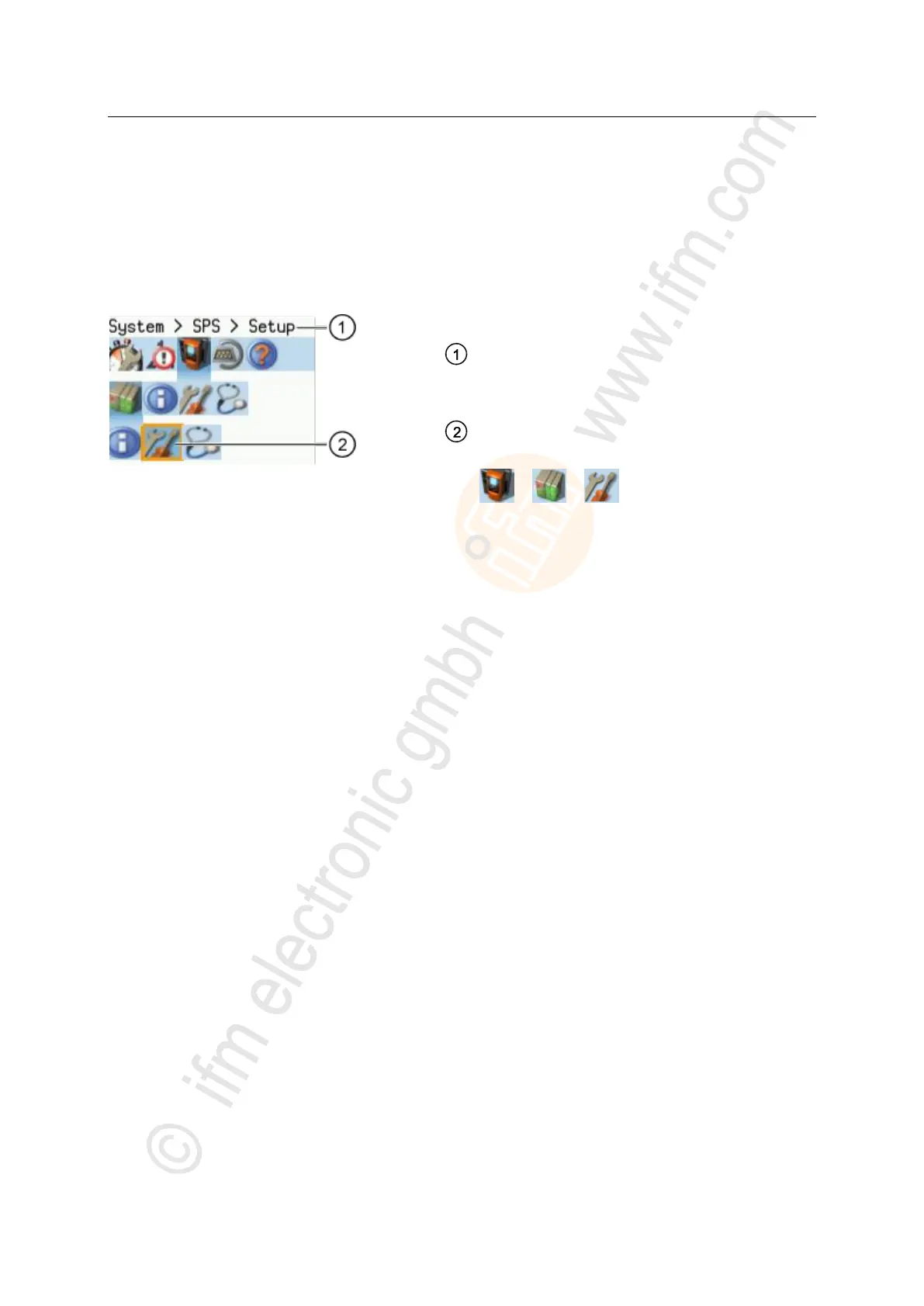

The following screen elements help you navigate through the menu:
> The info bar shows the navigation path of the selected menu symbol.
> The navigation compass shows which navigation steps are possible from the current position.
Legend:
Info bar
Navigation path to the focused menu element:
[System] > [PLC] > [Setup]
Menu element with focus
Navigation path to the focused menu element:
> >
