2 Functions and features
The rising stem valve sensor IX5030 is a continuous absolute linear measurement
system with a measuring stroke of 80 mm� The sensor is used for position
feedback for rising stem valves� For position detection three programmable switch
points can be freely selected in the measuring range� The position is signalled
visually by 3 LEDs�

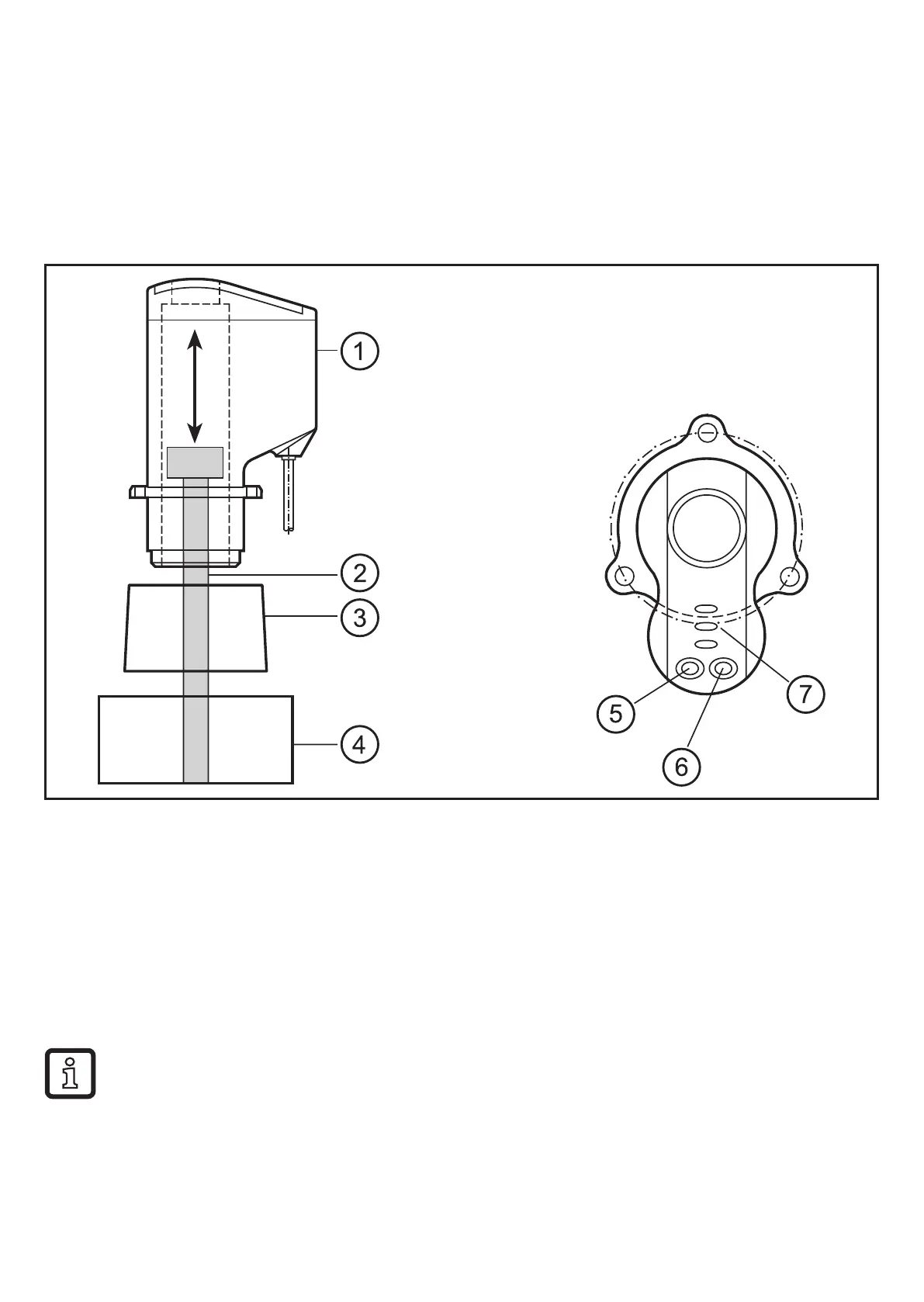

sensor
valve spindle with target
adapter / fixture
actuator of the valve
position button
Teach button
5 LEDs (open, close, seat, AS-i voltage, error)
The rising stem valve sensor IX5030 can be adapted to different valve
types� The instructions in the chapter Installation are to be observed when
designing the adapters and the fixtures�
