4 Installation

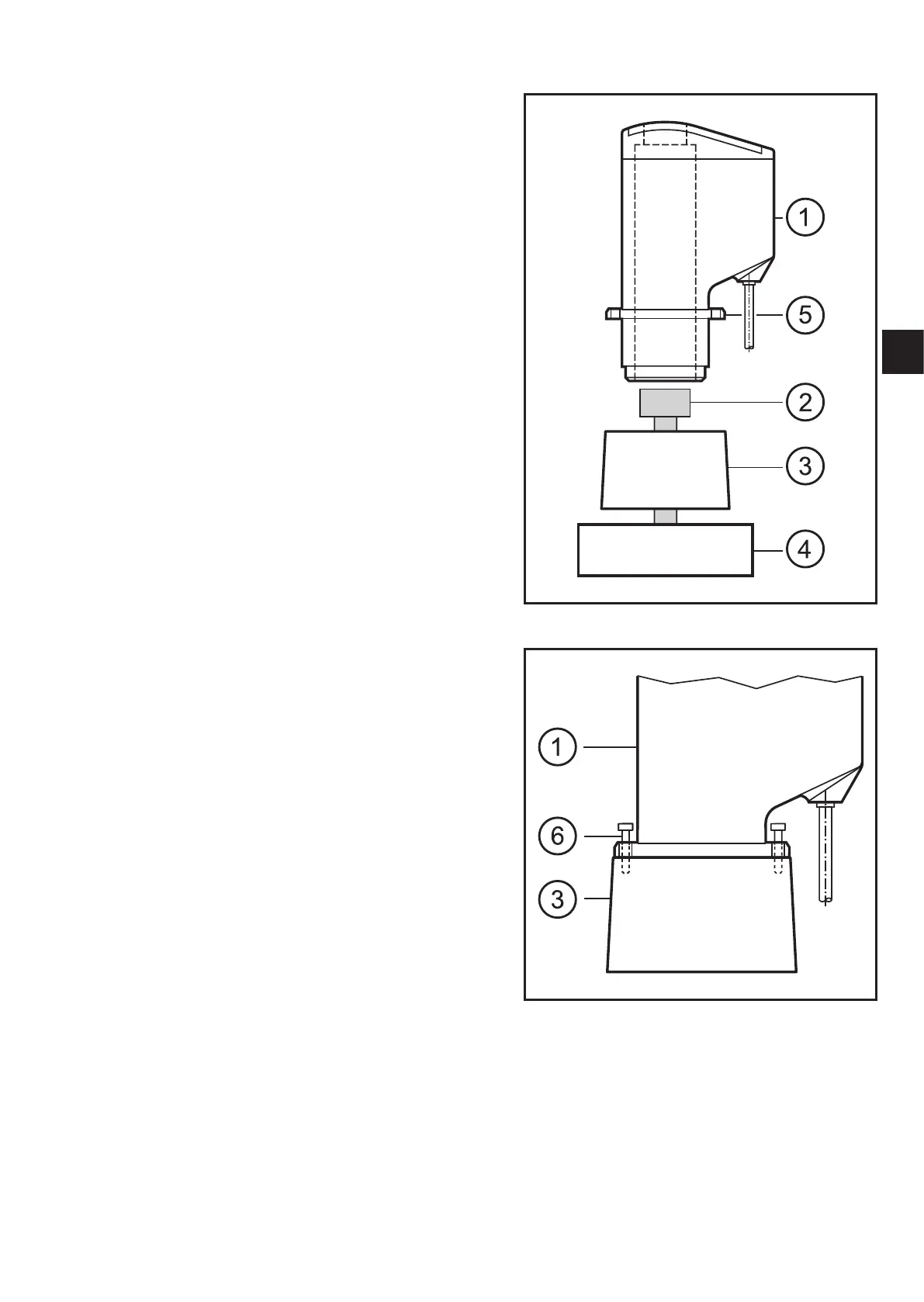

Place the sensor (1) on the valve spindle
(2) until the limit stop in a suitable fixture /
adapter (3)�
Fix the sensor to the 3-hole flange (3) by
means of the included fixing screws (6)�
The sensor (1) must either be integrated into
a valve top or correctly fitted to the actuator
(4) by means of a suitable adapter (3)�
If necessary adapt the length of the valve
spindle to the measuring range�
