5 Installation

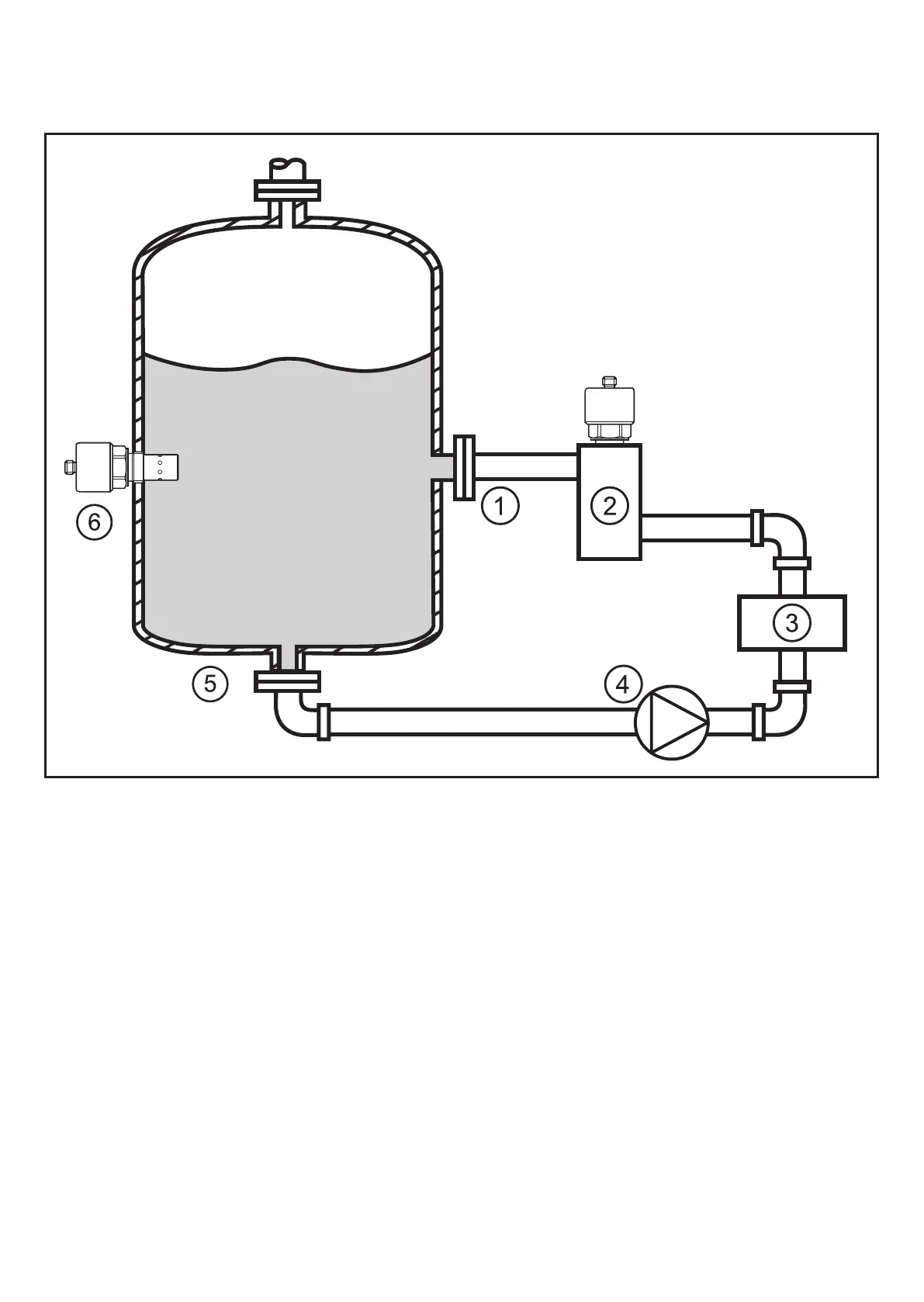

5.1 Typical measuring system
1: Connection of the return pipe
2: Pipe adapter with unit
3: Consumer
4: Pump
5: Connection of the rinse pipe
6: Unit directly screwed into the tank wall
