5.3 Installation procedure
► Ensure that the system is free of pressure during installation�
► Ensure that no media can leak at the mounting location during
installation�
► The sealing area on the process connection must be flush and free of
unevenness and dirt� Max� roughness value R
max
= 16.

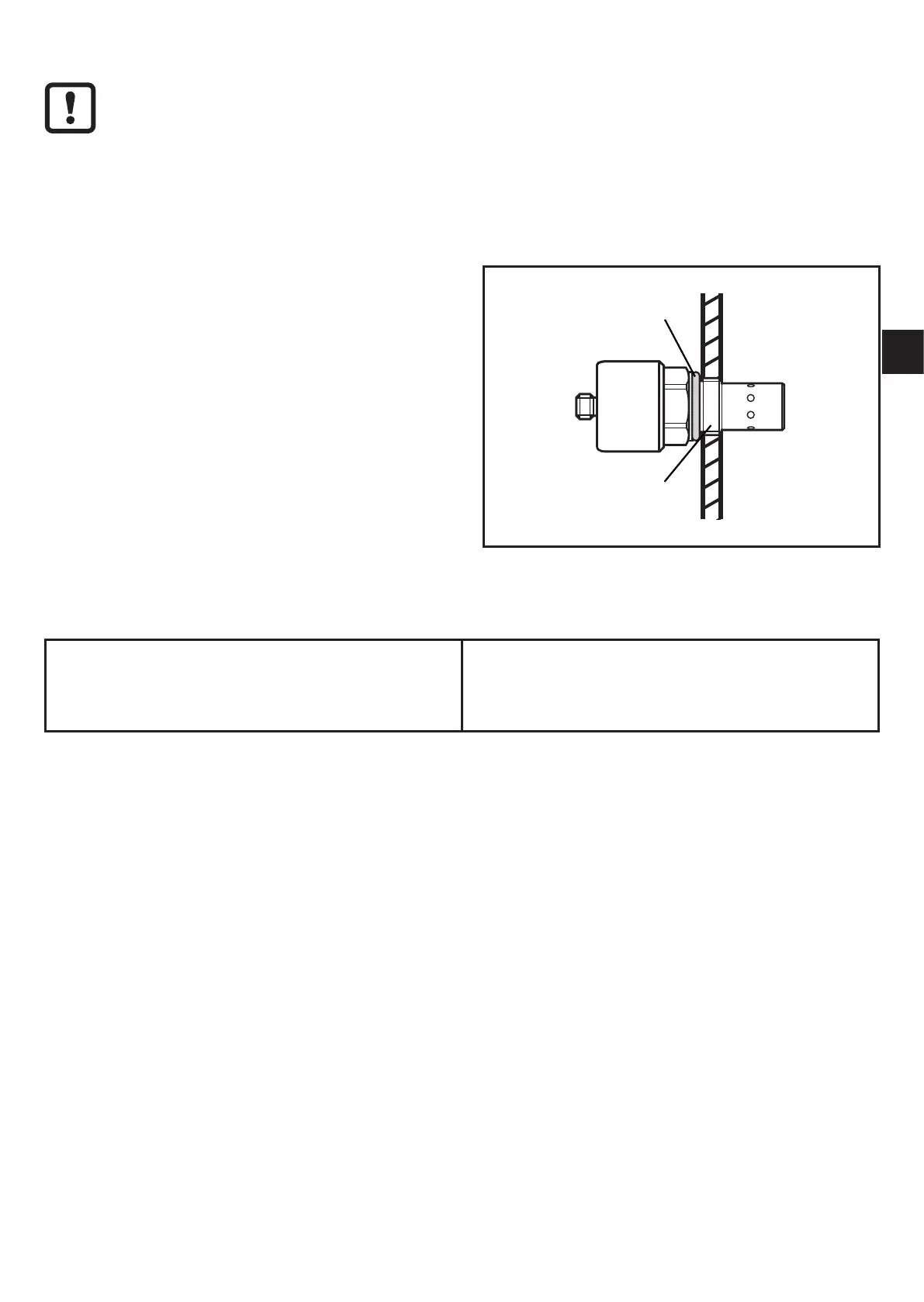

► Check profile sealing ring (A) for
correct position (in a groove).
► Screw the unit into the G ¾
process connection (B) and tighten
firmly� Max� tightening torque
45 Nm ± 4�5 Nm�
A
B
The unit can also be installed in the pipe by means of a pipe adapter� The
following accessories are available:
Adapter block to install the sensor in a
pipe; pipe connections ¾“; max� pressure
p
max
= 50 bar
Order number E43400
