robolink
®
Joint kit – Documentation (#4; 2016-12)
igus
®
GmbH | Martin Raak | Tel. +49 (0)2203 9649 409 | mraak@igus.de 10

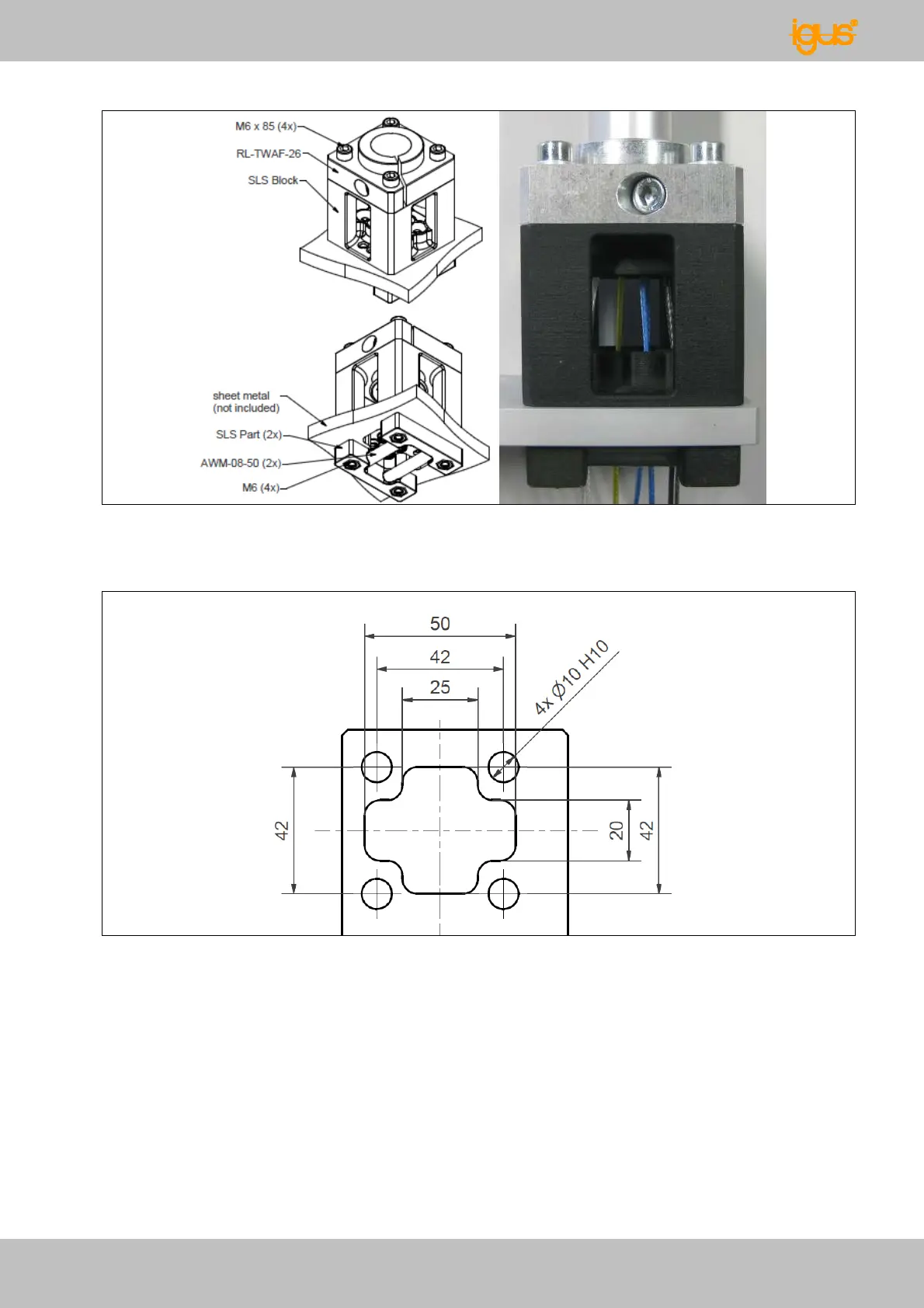

Fig. 20: RL-WSU8-001 to connect an articulated arm with a 2 axes or swivel joint in the
first joint
Fig. 21: Dimensioned drawing for an optional mounting plate for the mounting component
RL-WSU8-001
