IK Multimedia AXE I/O SOLO - Rear Panel Overview; Rear Panel Ports and Connections

English
5

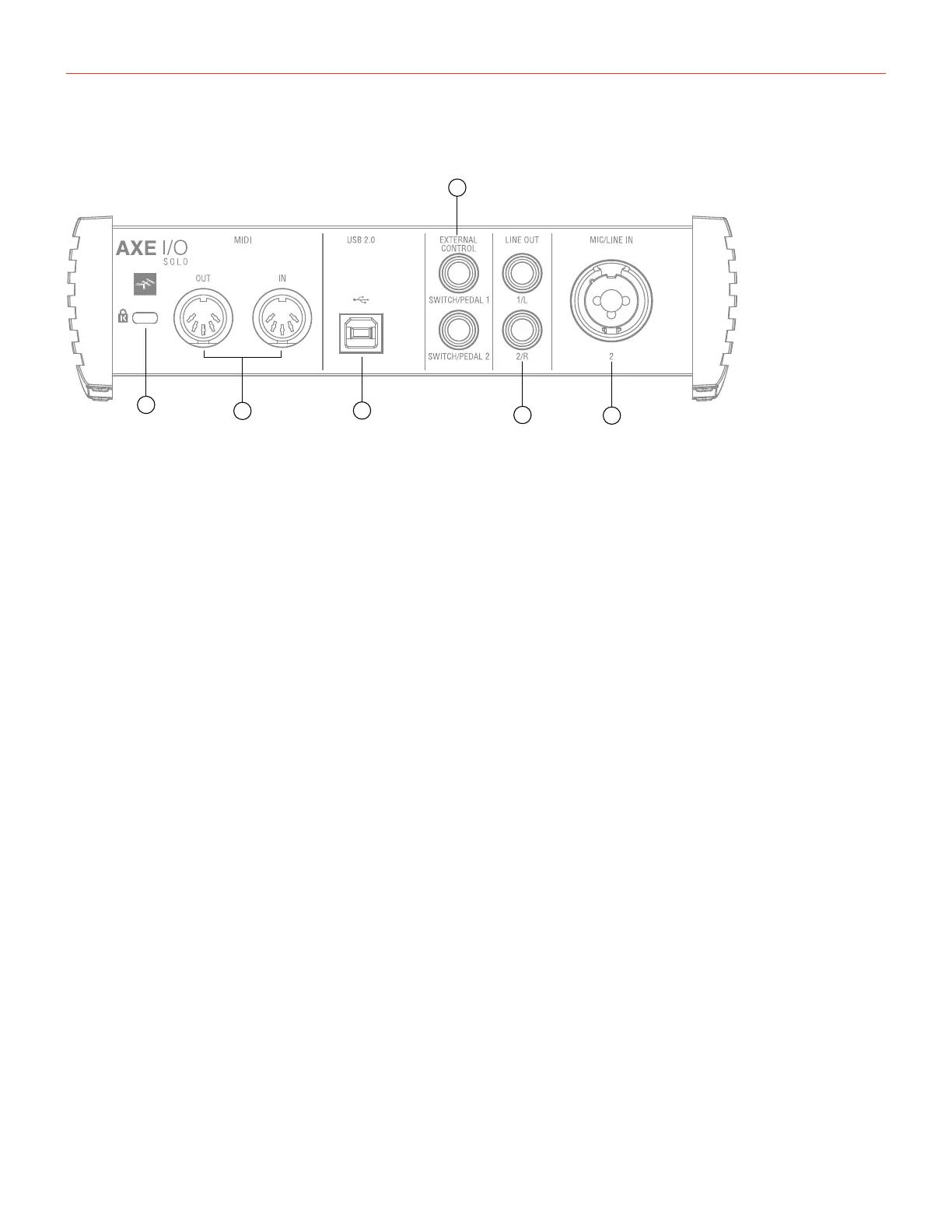

Rear panel
1
2
6
3
5
4
1. Kensington security lock - secure your AXE I/O SOLO to a suitable structure if desired.
2. MIDI IN/OUT - standard 5-pin DIN sockets for connection of external MIDI equipment.
3. USB 2.0 port - Type B connector - connect the AXE I/O SOLO to your computer with the supplied cable.
4. EXTERNAL CONTROL - use these 1/4” (6.35mm) jacks to connect external controller pedals (single or dual
switches, continuous expression pedals). MIDI messages sent are freely assignable from the “Control app”.
5. LINE OUTPUTS1/Land2/R-Outputs1/Land2/Rarebalancedandfloatinganaloguelineoutputson1⁄4”
(6.35 mm) jack sockets; use TRS jacks for a balanced connection. Outputs 1/L and 2/R will normally be
used to drive the primary monitoring system.
6. MIC/LINE IN 2 - XLR Combo type input sockets - connect microphones or line level signals.
