3 - Setups and Connections
31
StealthPedal
™
CS
Inputs
Connect your instruments here (figure 3.7). When you need to connect only
one mono instrument (guitar, bass etc..) use input #1 (L). For optimum signal
quality, please use high-quality cables. These are balanced high quality Hi-Z
inputs that automatically switch to unbalanced when a 1/4” unbalanced cord
is plugged, perfect for low-level unbalanced signals (like the one from an
electric guitar or a bass, passive or active). When connecting a 1/4” balanced
(TRS) cord the input is actively balanced and is perfect to connect any line-
level balanced output audio device to the StealthPedal.

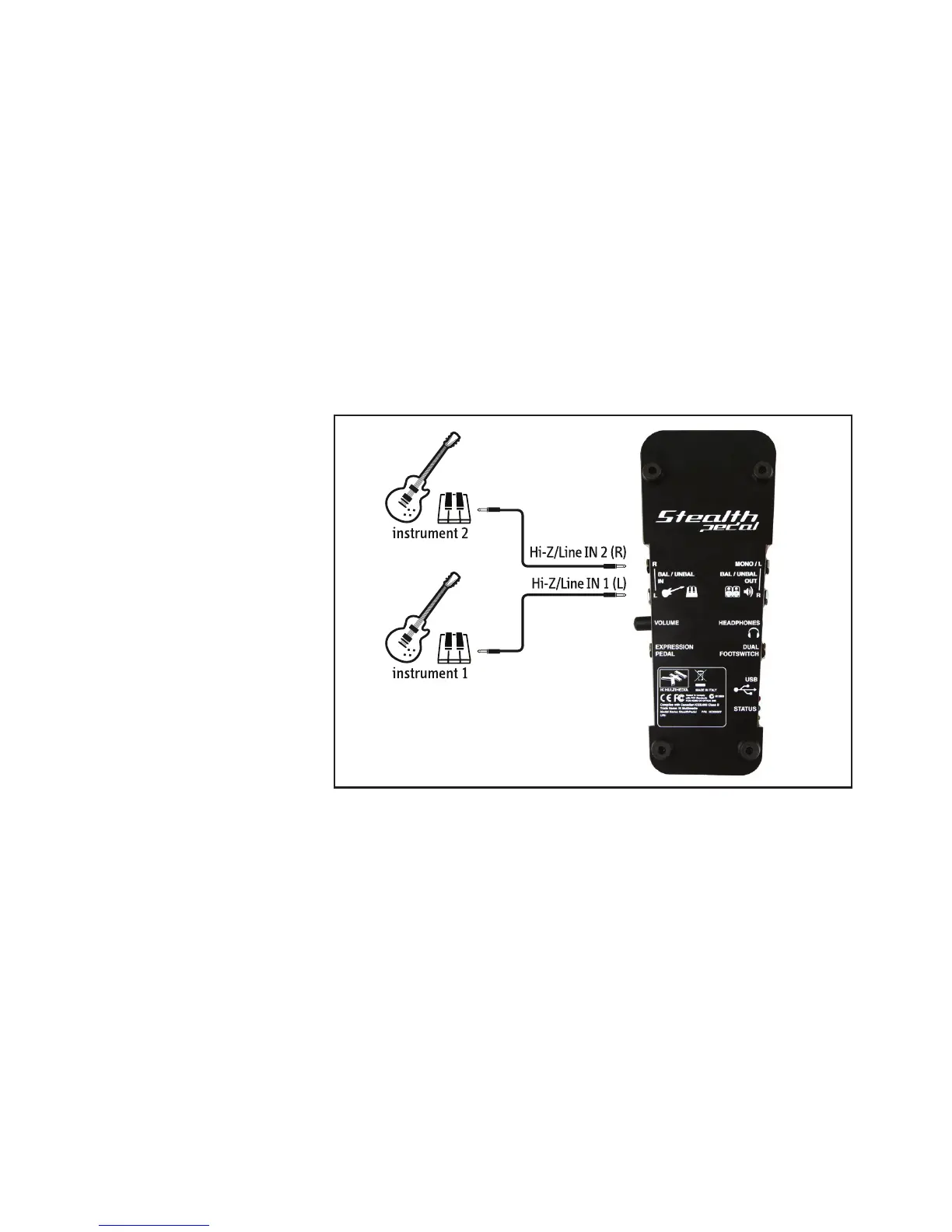

figure 3.7
