TONEX Capture
Features
5
Features
TONEX Capture is designed with two separate, but cooperative audio signal paths.
The first signal path aims to send a signal from an audio interface to an amplifier without noise or hum.
The second signal path aims to capture an attenuated signal from the amplifier’s power out and record it via
an audio interface while sending an unattenuated signal to a cabinet and keeping the impedance relationship
between the amp and its cab intact.

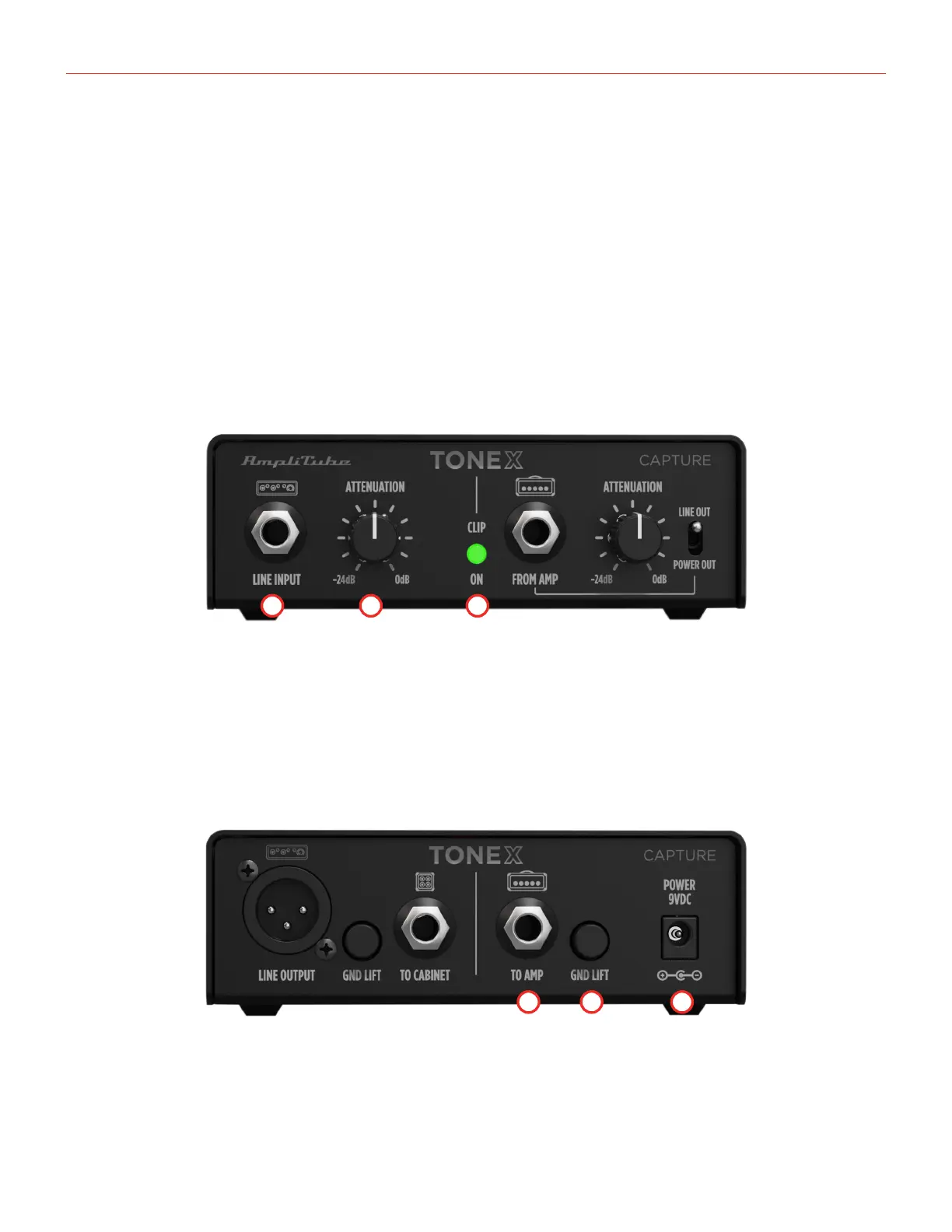

First Path
Input
1 32
1. Line Input: connect a line-level output from your interface to send to your amp or pedalboard.
2. Interface Attenuation: rotate counterclockwise to attenuate the signal coming from the audio interface by
up to 24 dB and prevent clipping.
3. LED: when green indicates that the device is turned on. When red indicates that the LINE INPUT is
clipping. When orange indicates that the FROM AMP input (second path) is clipping.
Output
4 5 6
4. To Amp: send the LINE INPUT signal to an amplifier or pedal.
5. Instrument Output Ground Lift: lifts the ground to avoid hum or buzz.
6. Power: 9V DC, center negative power socket. Only use the provided power transformer.
