a) If the EMERGENCY-.. - button is on , press it off and turn it 1/4 of turning in the marked direction.
b) press the button ON of the main switch- , placed on the right side of the column ; some leds of the control
panel of the control are flashing-pos. and the display shows some numbers and/or figures.

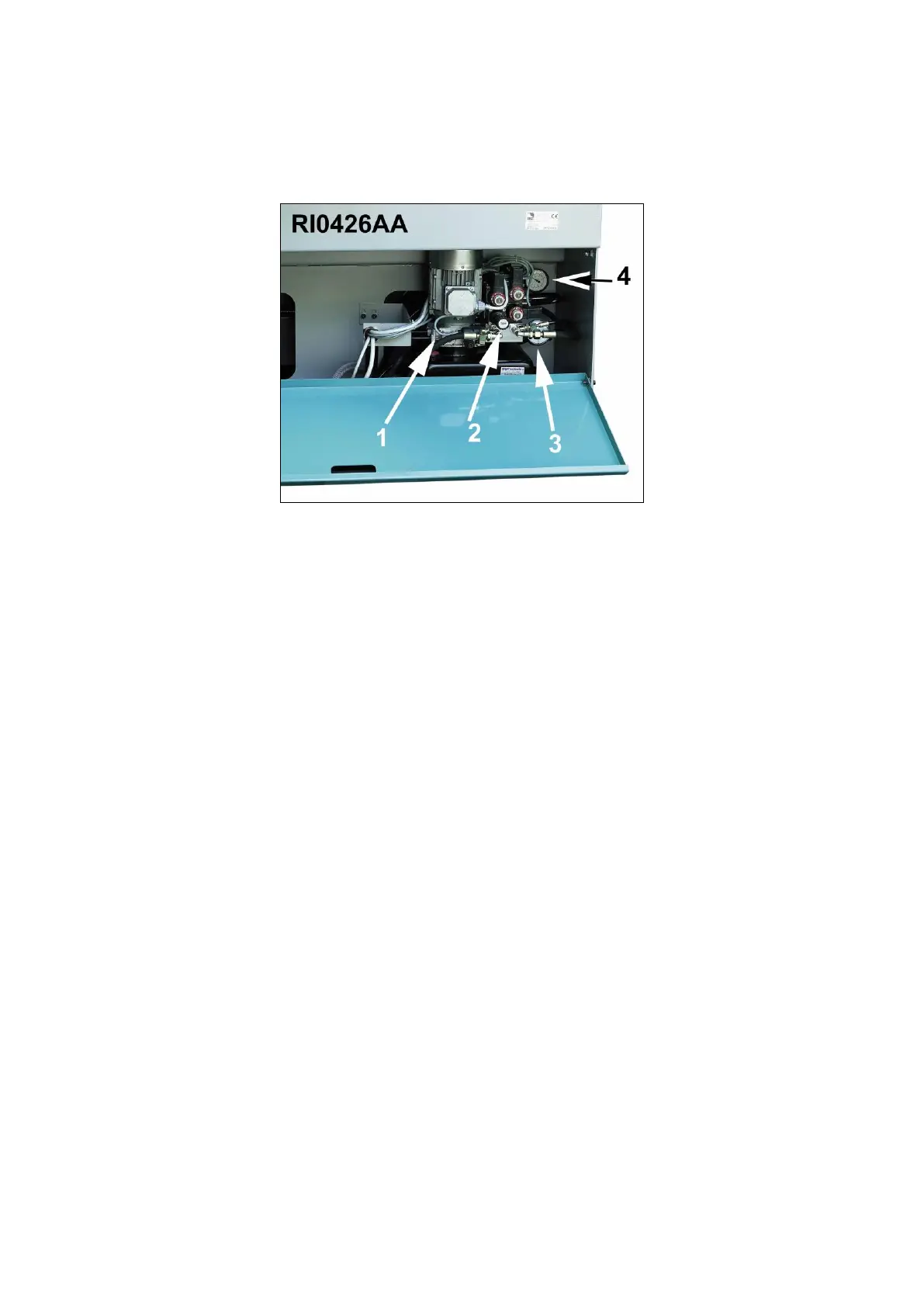

c) be sure that the manometer of the hydraulic installation-pos.4/drawing RI0426 , accessible from the door
, shows a pressure of about 12/14 BAR.
d) if it does not happen in the first 10 seconds turnf off the machine by switching off the main switch and
check the connection with the line .( Disconnect the feeding plug , reverse the connection of two of the wires
of line connection , excluding the green / yellow cable of grounding and start again from point a) .
e) Be sure that coolant is sucked in by the tank and arrives in the cutting area. ( with the taps open, by
pressing the button -pos.23/dr.RI0055- the recycling pump brings into action ).
f) Stop the working by pressing the main switch.
8.3 - BAND TENSIONING
The machine is equipped with a tensioned band and the starting of the motor is impossible if right force of
tension has not been opened up before. If it is not so:open the hinge of the cover band protection and remove
it from the supports -pos.1/dr.RI0054 - to be sure that the band ( " or blade " ) is against the pulley and it is
correctly put in the band guides head -pos.3/dr.RI0054-.
If necessary loosen a little the screw of the band stretcher-pos.4/dr.RI0054, to place again the band , then
assemble again the protection guard by being sure that the safety stroke end -pos.3dr.RI01..- is rightly
pressed.
The drawing shows the operation without the cover band protection, to only better illustrate the working area.
But it is not possible to work like this.
Press the main switch , wait for some seconds that the panel drawing RI0055 - stabilizes its workings, then
press many times the pushbutton MODE -pos.10/dr.RI0055- until the LED light marked with the "band"
symbol -pos.6/dr.RI0055- is on.
If the LED flashes , it means that the band is not tensioned : screw the frontal grub screw -pos.4/dr.RI0054-
by using the proper spanner-pos.5/dr.RI0054- , until the LED will be continuinghly flashing.
The procedure to change the blade after a change of pitch, wear and tear and break is the same one of the
above described procedure .In this case it will be necessary a careful cleaning of all points of connection with
the band.
In the following paragraph you will find the full controls list .
