6 – TECHNICAL DETAILS
Automatic electronic bandsaw with numeric control and hydraulic working , suitable for cutting metal profiles
and solids from 0 to 45 deg. left in automatic cycle, from 0 to 60 deg. left in semiautomatic cycle Material
feeder equipped with recirculating-ball screw. In compliance with E.C. - CSA - UL Safety Norms and with the
Norms of Electromagnetic Compatibility (EMC
STANDARD MODEL EQUIPPED WITH:
2 SPEED Three-phase motor, - with band speed 35/70 m/min. - electrical components complying with E.C.
Norm EN60204-1, EN55011, EN50082-2
- low voltage (24V), main switch with interlocking attachment and minimum tension coil, thermo-magnetic
overload motor protections, emergency stop
- easy to use CNC control; all operating functions of the machine are programmed from the control panel,
Showing of the operating conditions, band speed, piece counter and number of pieces still to cut on an
alphanumeric display, , - autodiagnostics circuit displaying error CODES wholly controlling the machine
actuators - front fixed screw vice with hydraulic action, jaws height 130 mm - quick and positive location at 0
feeder equipped with recirculating-ball screw, 300 mm maximum opening, 4 mm minimum stroke, 210 mm
minimum scrap-end,.- feeder vices fitted to a floating plate, sliding by ball-bushing on chromium-plated and
tempered guides- monobloc floor stand predisposed for handling with lift truck Connection for loading roller
tables - unloading chute -removable chip tray and tank, coolant pump and washing spray gun, hydraulic unit
with oil. New band-cleaning device by means of a brush, , - bi-metal band, wrenches and manual of
instructions, maintenance and spare parts.
WIDE RANGE OF ACCESSORIES: Two pressure reducers for hydraulic vices with gauges, upper rollers for
cutting more pieces side by side (max dimensions 300x100 mm, only for straight cut) , RTS = modular
loading roller tables, 400 mm wide and 2 m long.
If not differently indicated, all data reported in this manual refer to the standard version,
suitable for working at 400 V / 50 Hz THREEPHASE .

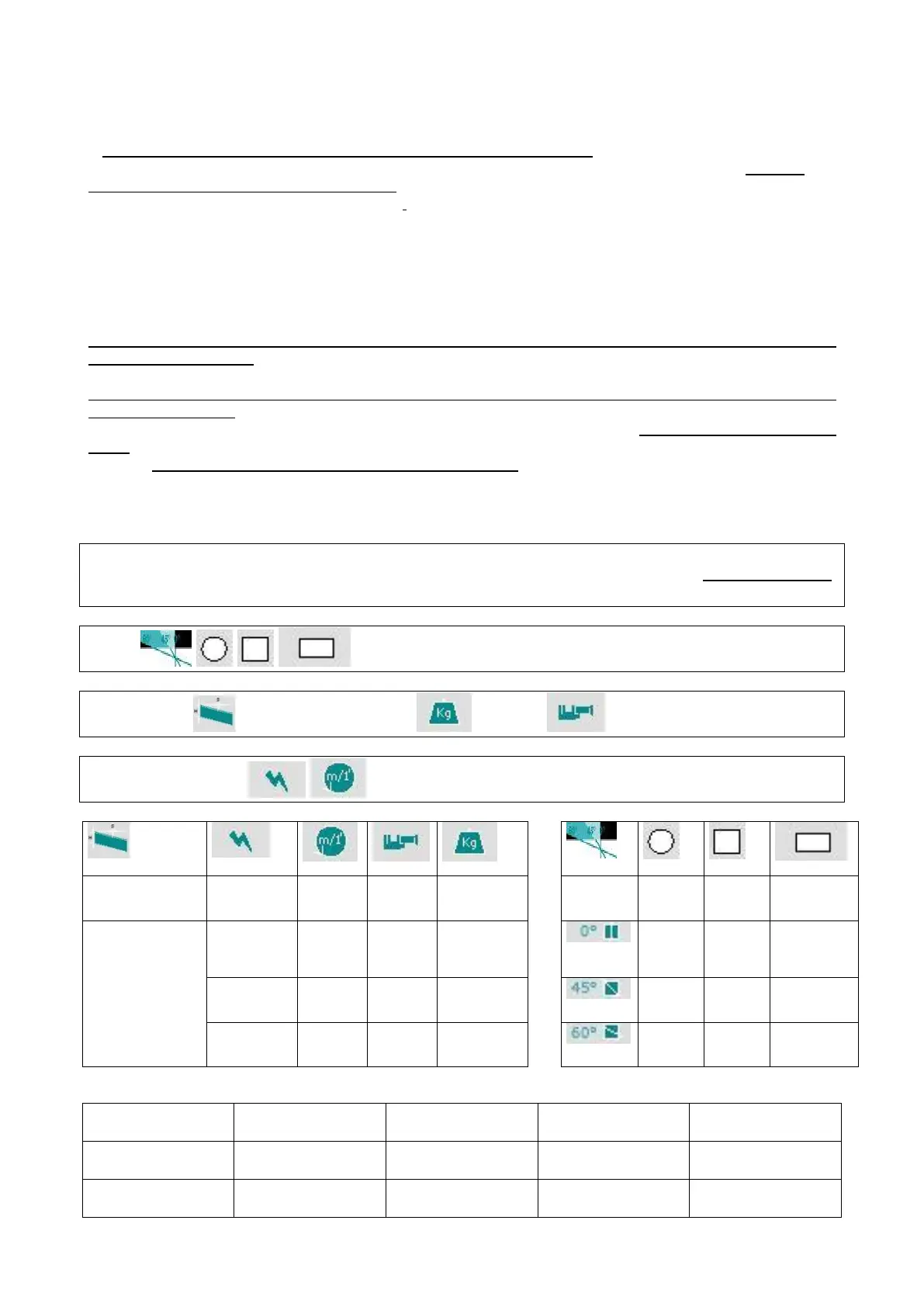

= cutting capacity ( max. dimensions on PROFILES & TUBES)
= BLADE DIMENSIONS = WEIGHT =VICE OPENING
= motor choice and blade speeds (at 50 Hz);
