- MACHINE SETTING FOR STARTING
Verify that machine has not clear damages or faults and check upon the standard equipment that includes
the tools, fittings to do some adjustments, using and maintenance handbook .
In case the machine is supplied with additional equipment make sure that it is adaptable to the machine.
Point in good time the possible damages or faults to the reseller or to the service staff before starting
machine.
Remove the locking shaft between sawframe and base, tighten the small threaded handle placed in the hole
of the shaft base - 4/RI0461 – in order to prevent the blade guide from moving.
-. Remove the protective substances from the surfaces, used to keep the machine during the moving and
transit, by cleaning them with a non-filamentous cloth or paper and please check that there is no rust in the
metallic parts.
In case of using compressed air jet always wear proper eye protection.

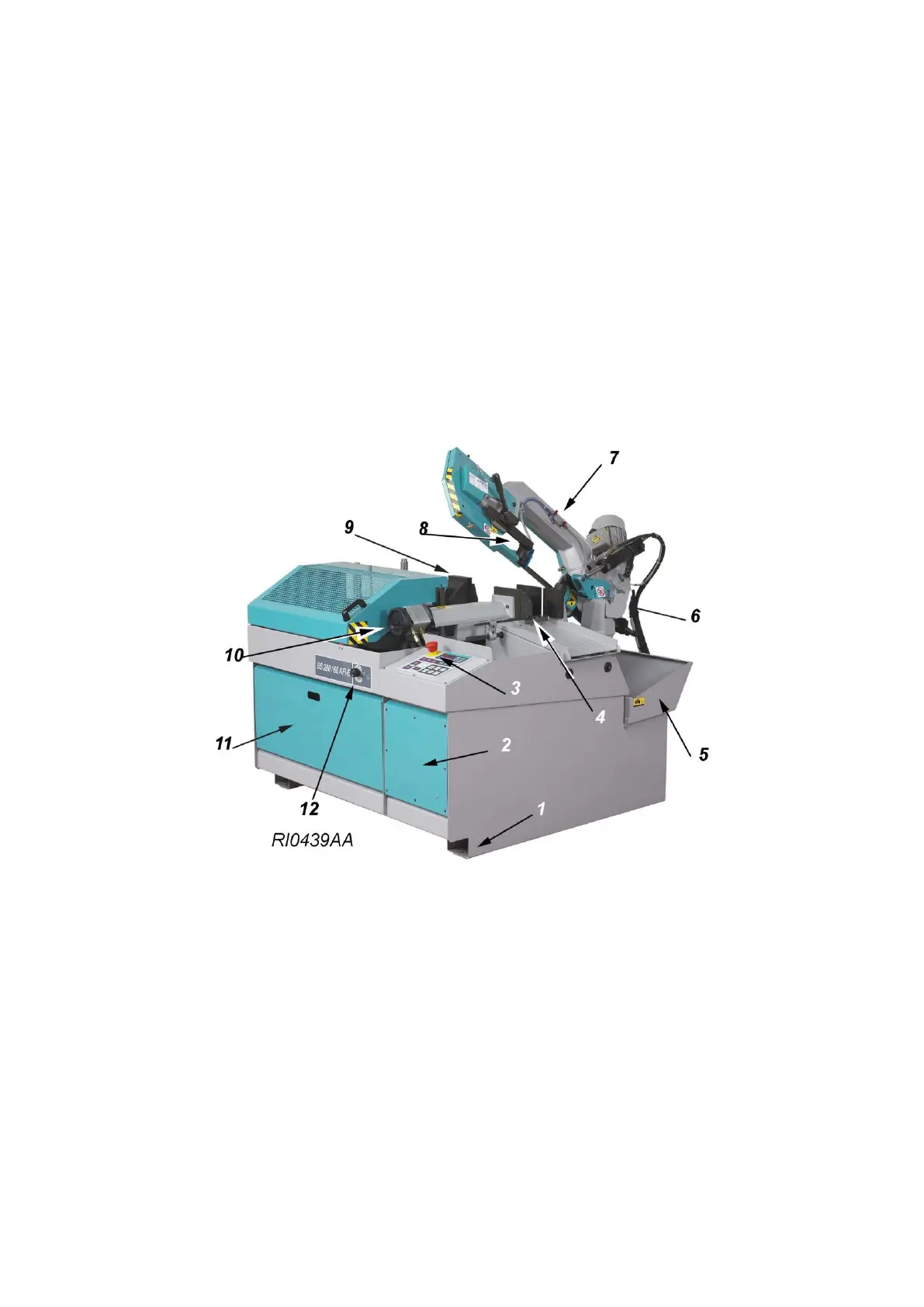

Take the chip pan tank out -pos.5/dr.RI0439- by unhooking it from the guides then remove the possible dirty
that can obstruct the passage of the coolant.
The parts in motion ( band guides, trolleys, pivots, bearing support, bearing disc and so on ) are already
lubricated, the reducer gear holds the exact quantity of oil necessary to the operation.
Hydraulic system is ready to start.
If not tensioned : stretch the springs.-6/RI0439 - placed at the back side of the machine to balance the saw
frame : loosen the fixing springs of the sliding plate - and, by a lever , place it about the half of the slots.
Hardly lock the screws immediately. It is necessary to do these operations with the saw frame completely up.
8.1 - COOLING SYSTEM
Prepare the cooling by mixing the cutting oil and water ( the tank holds about 40. litres ) in proportion 1/10,
1/15 or according to the instructions of product supplier .Pour out the cooling in the tank - you can approach
it by the rear side of the floor stand - or directly on the work table - pos.4/dr.RI01..-. In this case keep attention
that the chip pan tank is correctly placed .
8.2 - ELECTRICAL CONNECTION
Verify that voltage and power frequency are compatible with numbers reported in the technical data plate (
placed on the right side of the floor stand ) difference over 10% causes some working unevenness more or
less manifested. This operation must be made by authorized , operators ( for ex. by an electrician ) .
The pashing performed by the manufacturer allows to get a right rotation of all motors by connecting the
wires in the following order L1=R, L2=S, L3=T, anyhow check as follows : ( rightly close the coverband
protections ) .
