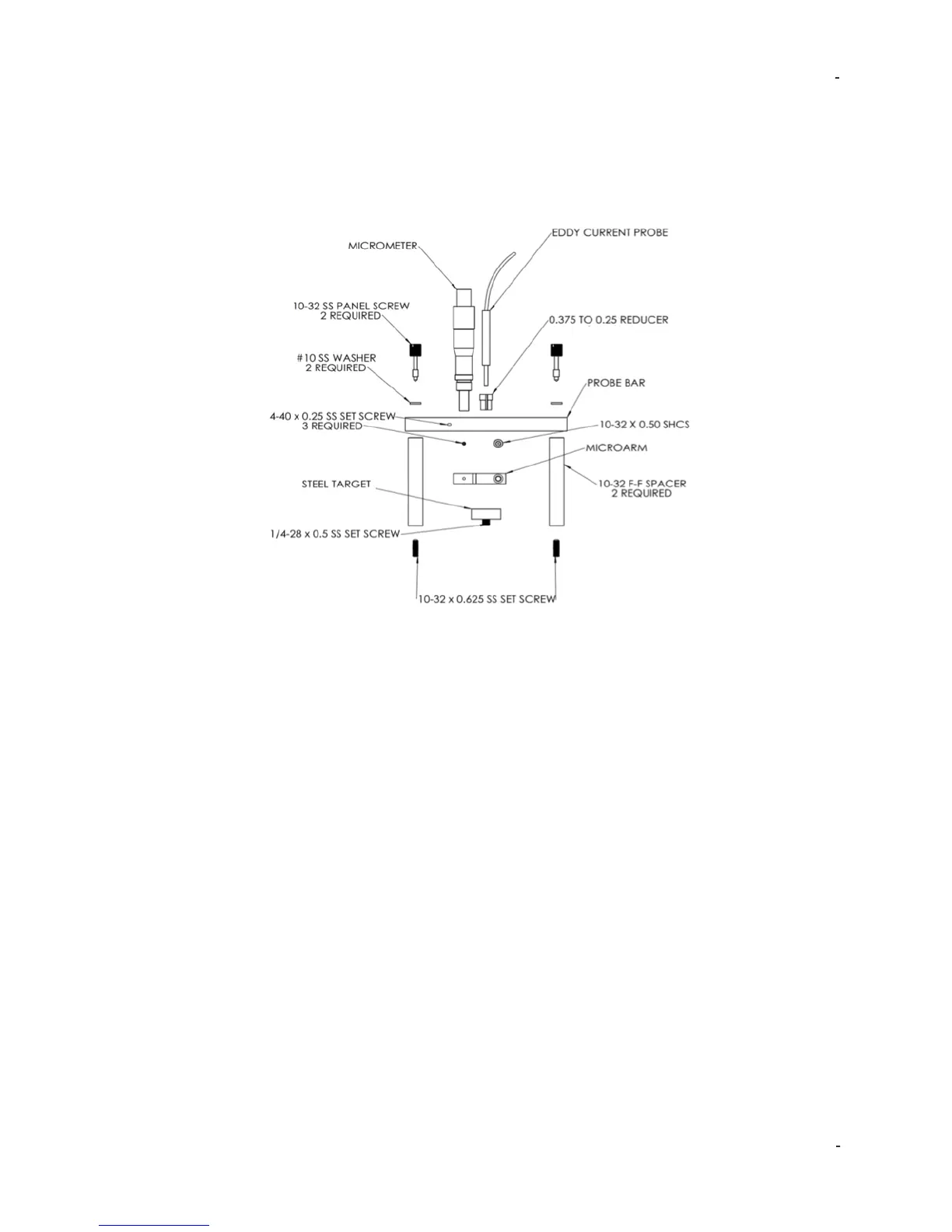

600A22 (or 600A23) proximity probe adaptor kit, shown on the next page. The
following sections detail the procedure for performing linearity and frequency
response checks on a non-contact displacement sensor.
Non-Contact Displacement Sensor Test Setup
Note: The calculations in these instructions are based on a 200 mV/mil eddy current
proximity probe to provide an example based on nominal sensitivity. In most cases,
the proper proximity probe, extension cable, and driver (Proximitor®) must be
matched in order to obtain the expected output from this type of transducer.
[Proximitor® is a registered trademark of Bently Nevada Corporation.]
