13

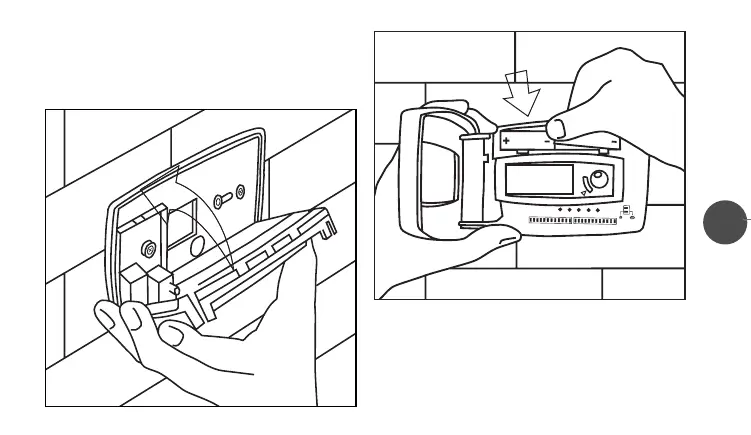

D) Connect the wires to the terminals as per wiring diagram
(see next paragraph “wiring connections”), snap the unit
back to its base and tighten it with the provided screw.
E) Insert n° 2 1.5V alkaline batteries, type LR6
into the battery compartment, making sure that the proper
polarities are maintained.
N.B. Insert the first battery into the left side of the battery
compartment and the second one into the right side of the
compartment. Finally press on the second battery
so it fits properly.
