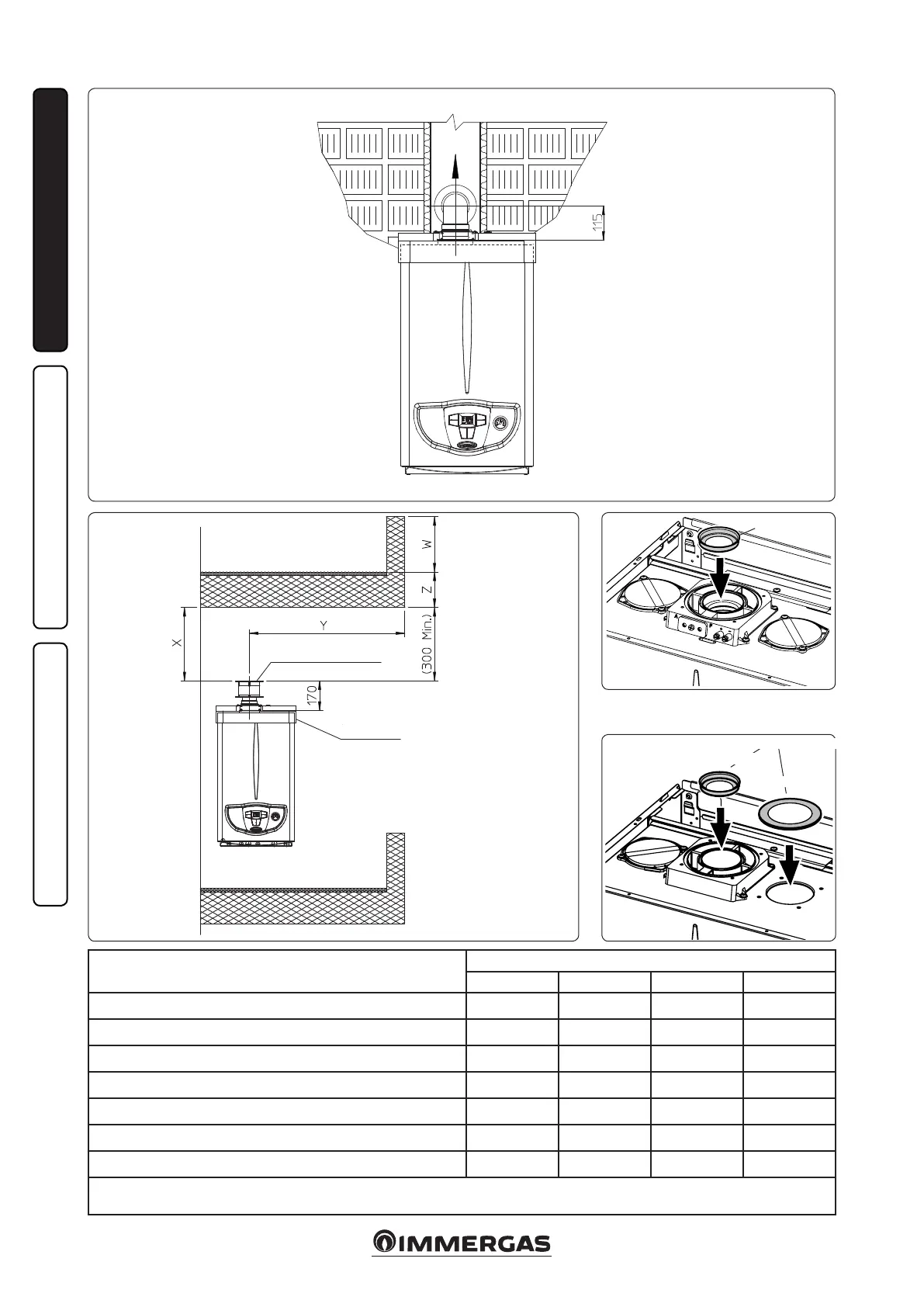

Type of installation
(duct length in metres)
Diaphragm
Ø 38 Ø 40 Ø 42,5 WITHOUT
Ø60/100 horizontal concentric kit
From 0 to 0.5 From 0.5 to 1.5 - From 1.5 to 3.0
Ø60/100 vertical concentric kit
From 0 to 2.2 From 2.2 to 3.7 - From 3.7 to 4.7
Ø80/125 horizontal concentric kit
From 0 to 0.5 From 0.5 to 4.6 - From 4.6 to 7.4
Ø80/125 vertical concentric kit
From 0 to 5.4 From 5.4 to 9.5 - From 9.5 to 12.2
Ø80 vertical separator kit without bends
*From 0 to 20 *From 20 to 40 **From 0 to 22 ** From 22 to 33
Ø80 horizontal separator kit with two bend
*From 0 to 16 *From 16 to 35 **From 0 to 17 ** From 17 to 28
Direct intake kit and Ø80 drain in B
22
conguration
From 0 to 0.5 - From 0.5 to 15 -
* ese maximum extension values are considered intake with 1 metre drain pipe
** ese maximum extension values are considered in draining with 1 metre intake pipe and Ø 47 diaphragm on the intake hole.
VERTICAL TERMINAL KIT
FOR DIRECT DRAINING
INTAKE
COVER KIT
DIAPHRAGM
DIAPHRAGM
Exhaust
Intake
