STV75 ed 01/08 VICTRIX 75

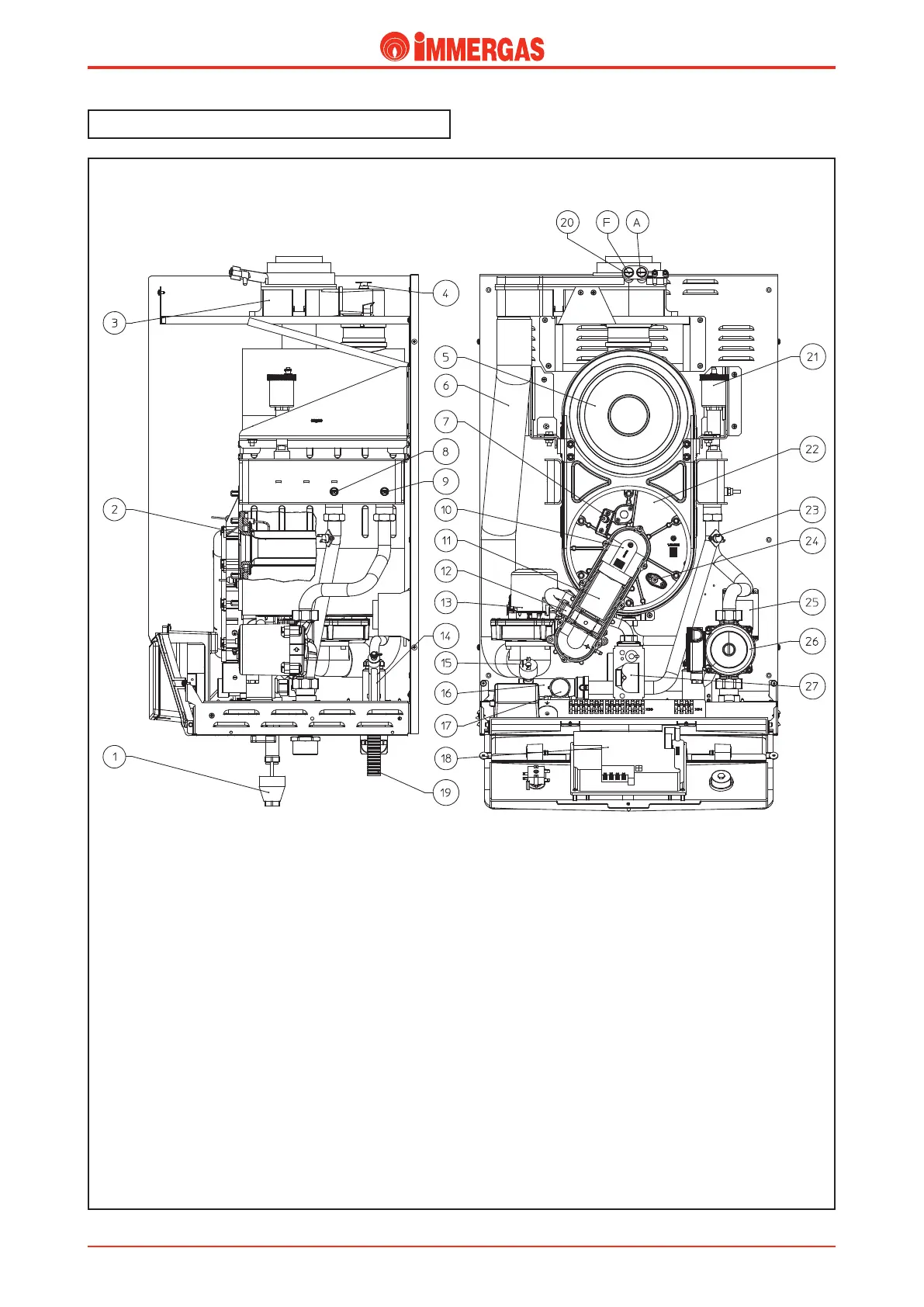

VICTRIX 75 main components.
Legend:
1 - Drain funnel
2 - Burner
3 - Draught diverter
4 - Flue thermostat
5 - Condensing module
6 - Air intake pipe
7 - Ignition plug
8 - System ow NTC probe
9 - System return NTC probe
10 - Sleeve with Venturi housing
11 - Venturi
12 - Gas nozzle
13 - Air fan
14 - Condensate siphon
15 - System pressure switch
16 - Flow manifold
17 - 4-bar safety valve
18 - P.C.B.
19 - Condensate discharge pipe
20 - Sample points (air A) - (fumes F)
21 - Vent valve
22 - Cover of condensing module
23 - Overheating safety thermostat
24 - Detection electrode
25 - Current transformer
26 - Pump
27 - Gas valve
