STV75 ed 01/08 VICTRIX 75

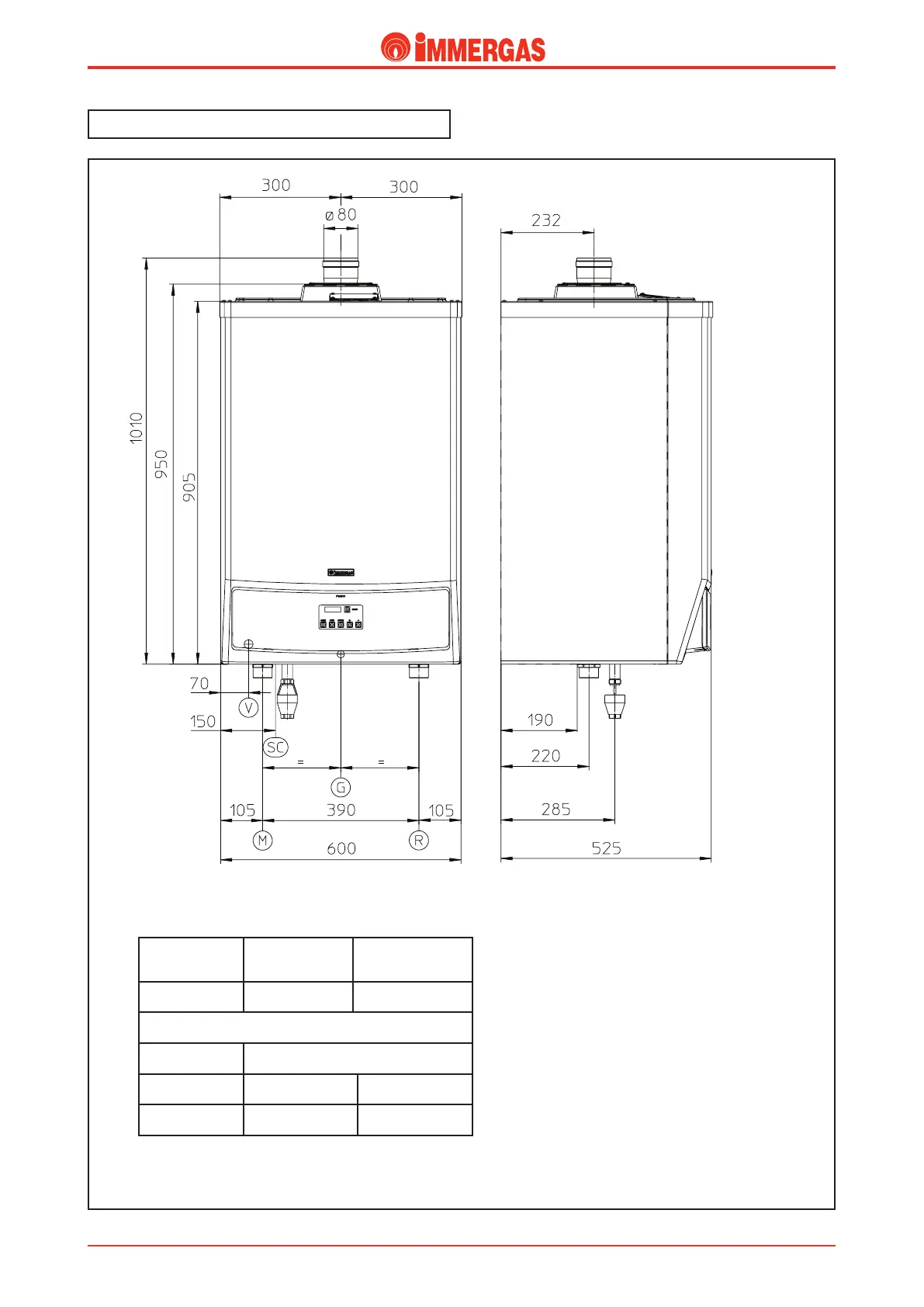

VICTRIX 75 main dimensions.
Legend:
V - Electrical connection
G - Gas supply
R - System return
M - System ow
SC - Condensate discharge
(minimum internal diameter
13 mm Ø)
Height (mm) Width (mm) Depth (mm)
950 600 525
Connections
GAS SYSTEM
G R M
3/4” 1”1/2 1”1/2
