ejected from the side of the quad, into awaiting fingers…
Be sure to reinstall the spring when re-assembling the Vortex, to avoid the Tx
module from damage in a crash.
5) Flight Camera Video/Power Connector

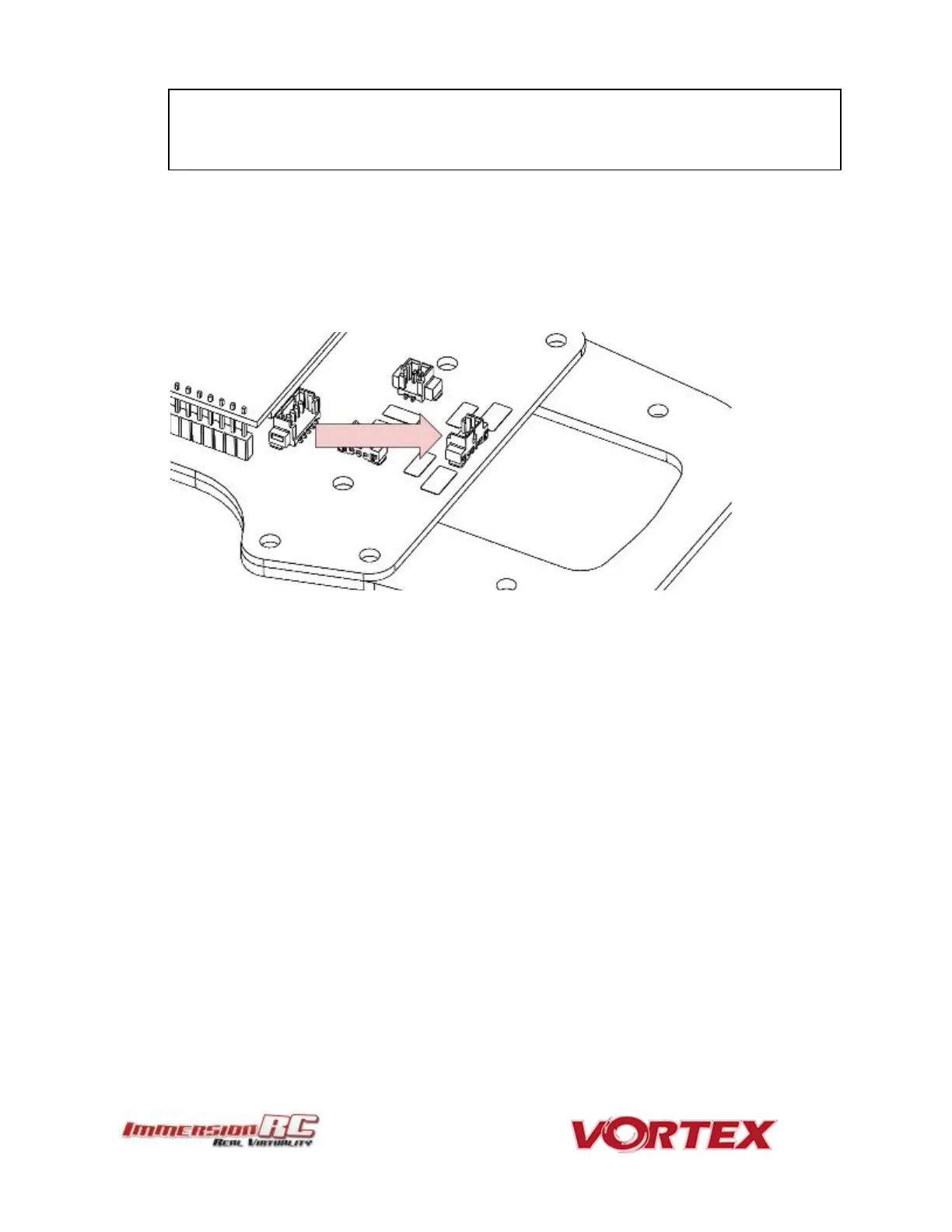

The flight camera video and power connector is a 3-pin Picoblade connector located
behind the flight camera. The connector can be easily accessed without the need to
disassemble the quad.
Looking from the front of the quad, the pinout is as follows, left to right:
1. Video
2. Gnd
3. +5v
6) GoPro Power Connector
The GoPro power connector is a 2 pin Picoblade, also accessible through the left side
plate. It is typically used to power a GoPro with its battery removed, to remove weight
from the front of the quad, and therefore make getting the COG correct easier.
