61

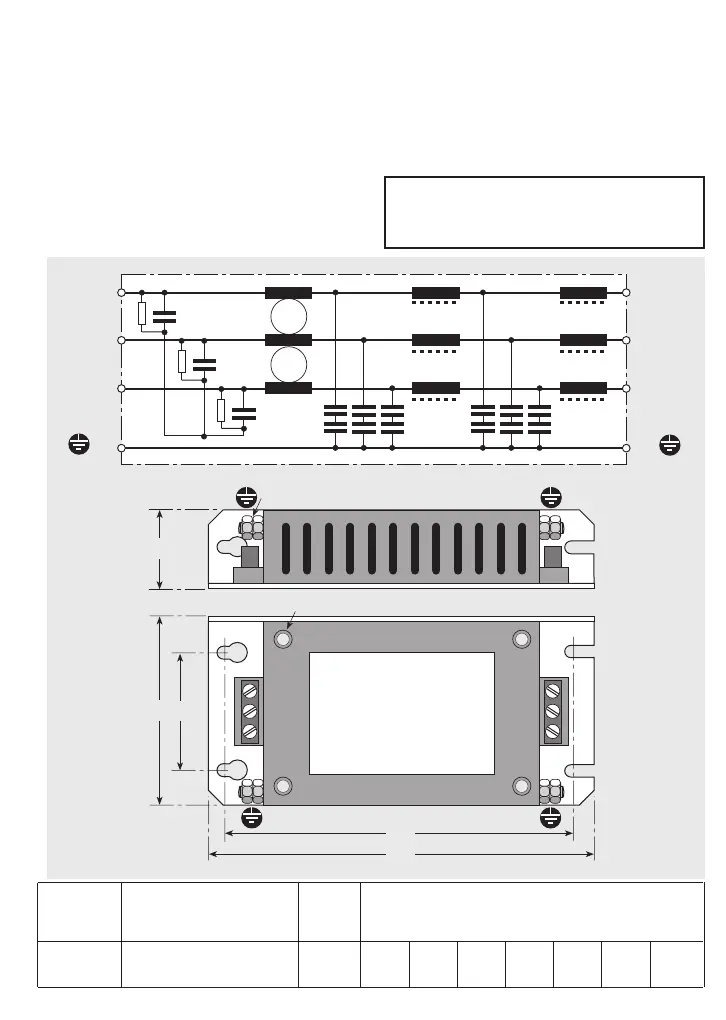

10.3 Three-phase RFI-FP Filter
A Jaguar VXS inverter may be mounted on
the face of the Flatpack Filter using the inte-
gral tapped mounting points. Alternatively,
the filter may be mounted upright beside the
inverter.
Refer to the diagram on page 59 for details of
connections and screening.
Earth Leakage Current
Under normal running conditions, with three
phases energised, the effective leakage is
0.5mA nominal at 50Hz. At power-on, how-
ever, or if one phase fails, the leakage current
may be up 40mA.
LINE
LOAD
Single Phase
RFI Filter
H
W
Y
X
L
2 earthing studs M4
L1 L1
LINE
LOAD
(PE) (PE)
Inverter fixings, 4 holes tapped Z
L2 L2
L3 L3
(PE)
(PE)
(PE)
(PE)
WARNING The RF filter must be earth-
ed in accordance with the appropriate
circuit diagram on page 59.
Part Jaguar VXS
Rated
Dimensions (mm) Weight
number inverter range
current
LWHXY Zkg
at 40
o
C
RFI 75-3 VXS40-3 to VXS75-3 10A 195 148 40 185 90 M5 0.95
RFI 400-3 VXS150-3 to VXS400-3 25A 195 207 40 183 142 M5 1.35
