IMO Precision Controls K7 Series User Manual

Chapter 7 Usage of Functions
7-
５１

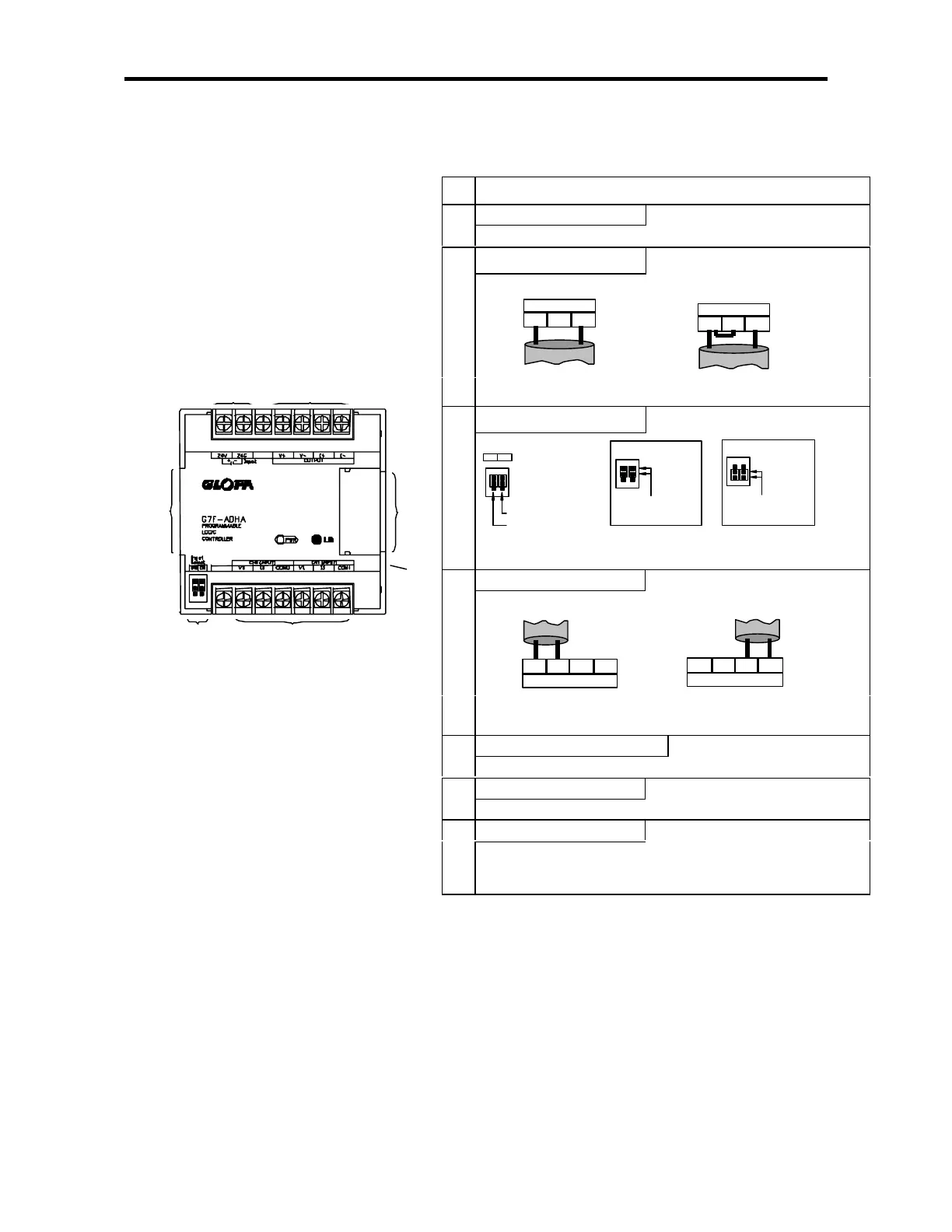

2) Names of parts and functions
Explain about names of parts and functions
No Contents.
RUN LED
ᐭ
Indicate the operating status the G7F-ADHA
Analog input terminal
Voltage Input
Current input
ᐮ
When current input is used, short the V and I terminal.
Jumper pin of analog input
ᐯ
Right is CH.1selecting
left is CH. 0 selecting
Voltage
Input
Connect upper
parts by jumper
pins
Current
Input
Connect lower parts by
jumper pins.
Analog output terminal
Voltage output
Current output
ᐰ
ሪ
Only one type of output (Current or Voltage)is available on a
module
External power input terminal
ᐱ
ሪ
Terminal supplies 24VDC
Extension cable
ᐲ
ሪ
This cable is used to connect while analog mixture module is used. .
Extension cable connector
ᐳ
The connector connects extension cable when extended module is
used.
V0 I0 COM0
CH0
(INPUT)
V0 I0 COM0
CH0
(INPUT)
CHO CH1
Input
Selec
V+ V- I+ I-
OUTPUT
V+ V- I+ I-
OUTPUT
⑦
①
②
③
④
⑤
⑥
