IMO Precision Controls K7 Series - Connection of Expansion Module

Chapter 9 Installation and Wiring
9-
్
9.1.3 Connection of expansion module

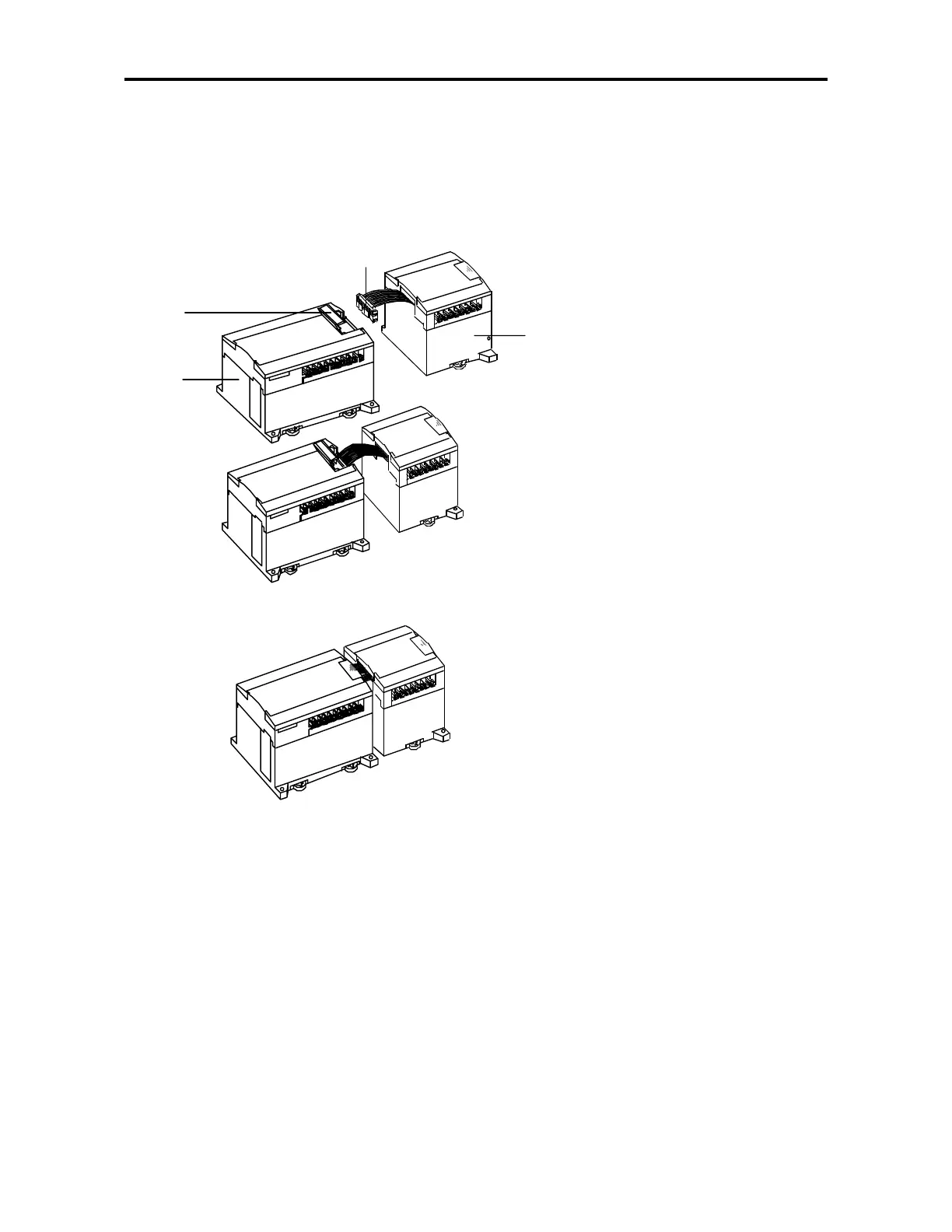

The following explains the Connection of ex pansion modules to the base unit.
(1) Open the connector cover of the base unit.
(2) Insert the connector of the ex pansion module to the connector of the base unit.
(3)
Close the connector cover of the base unit
.
ᐯ
:
expansion module
ᐭ
:
Base unit
ᐰ
:
expansion cable
ᐮ
:
Connector cover
